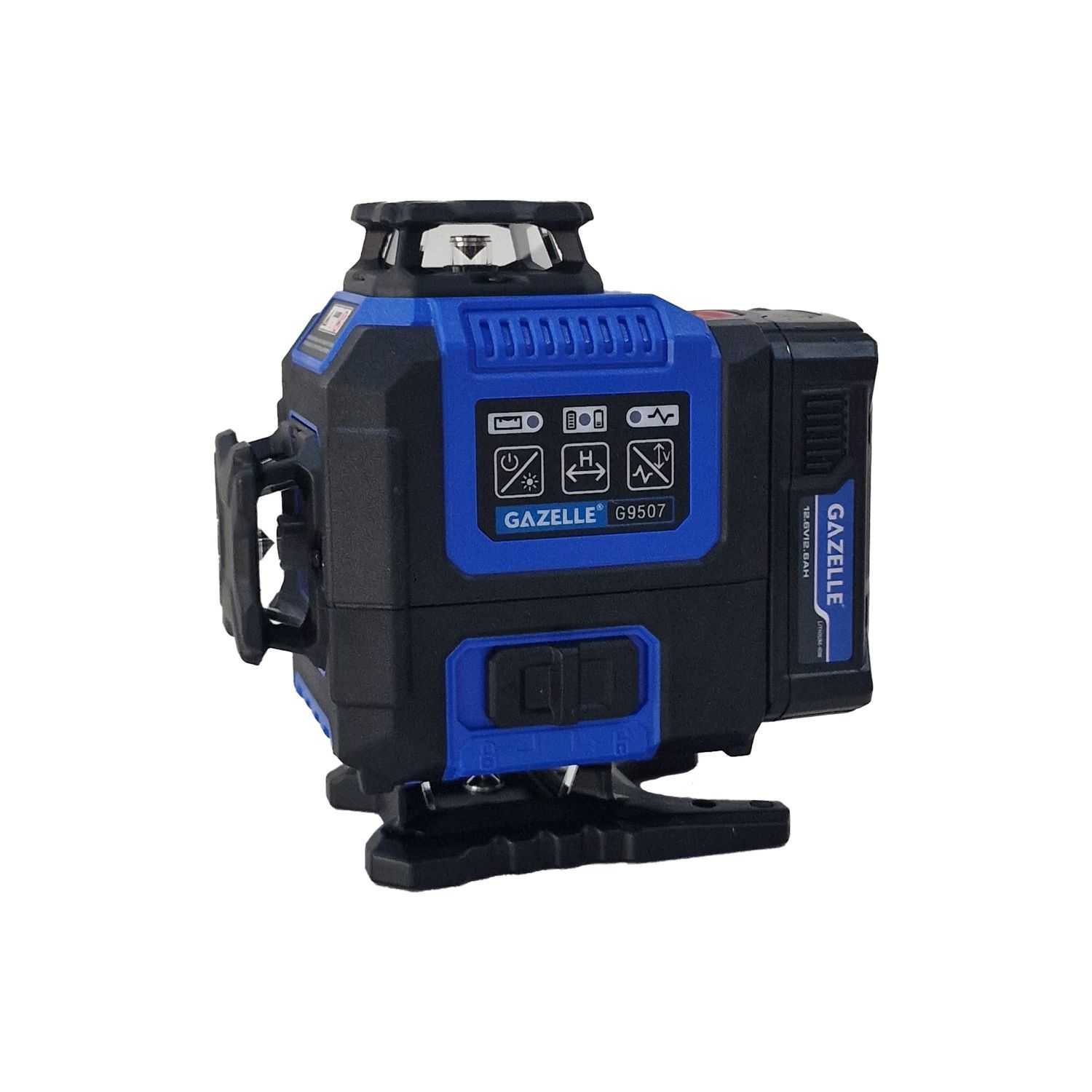

G9507 16 Lines 4D Laser Level Green 30m
G9507 16 Lines 4D Laser Level Green 30m
Gazelle Tool Service
Warranty
Find A Distributor
Gazelle Tool Service
Warranty
Find A Distributor
Features
- Range: 30m
- Laser Class: 2
- Laser Lines: 16
- Laser Color: Green
- Laser Wavelength: 510-530nm
- Battery: 12V, Li-Ion 2600 mAh
- Warranty: 1 year manufacturer's warranty

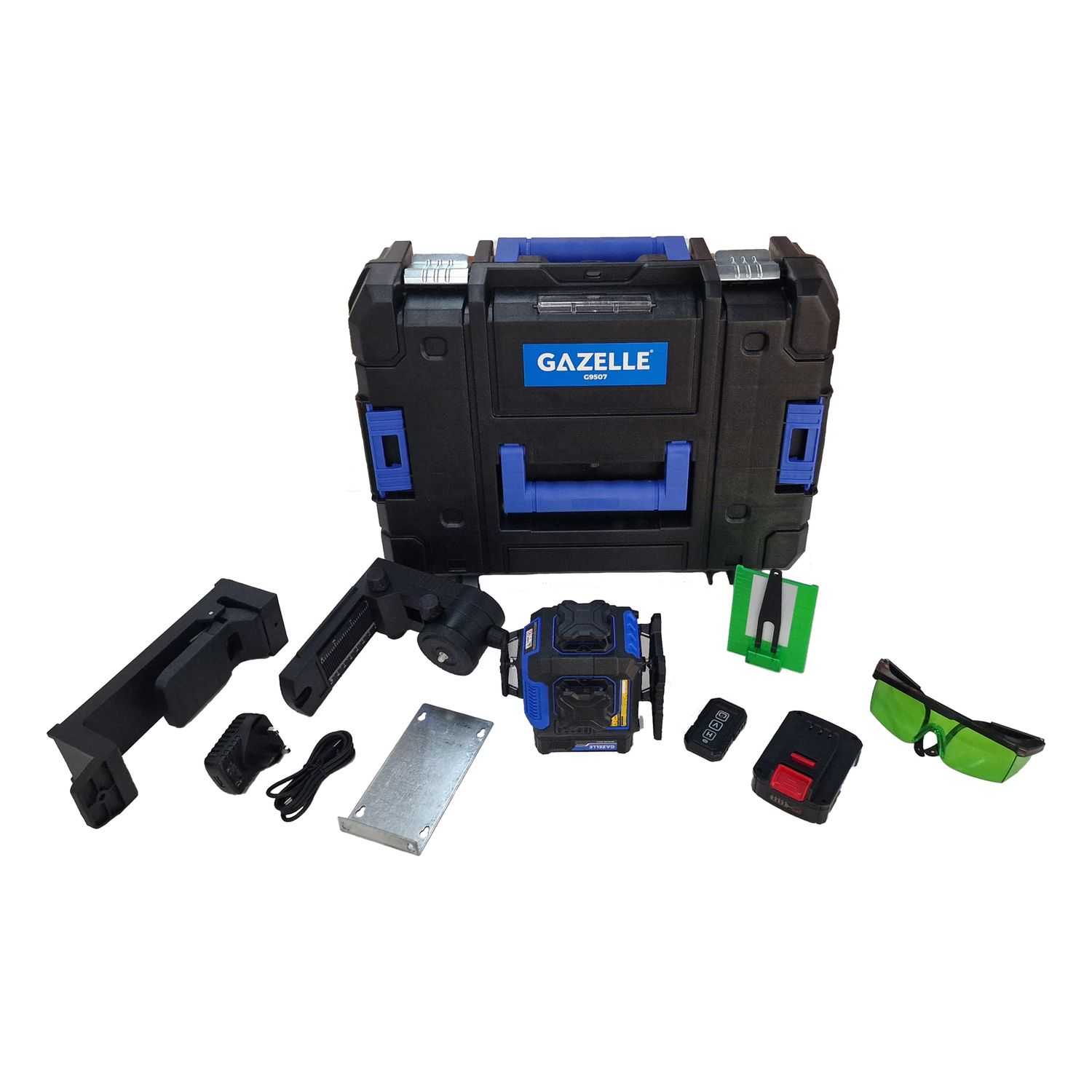

Scope of Delivery

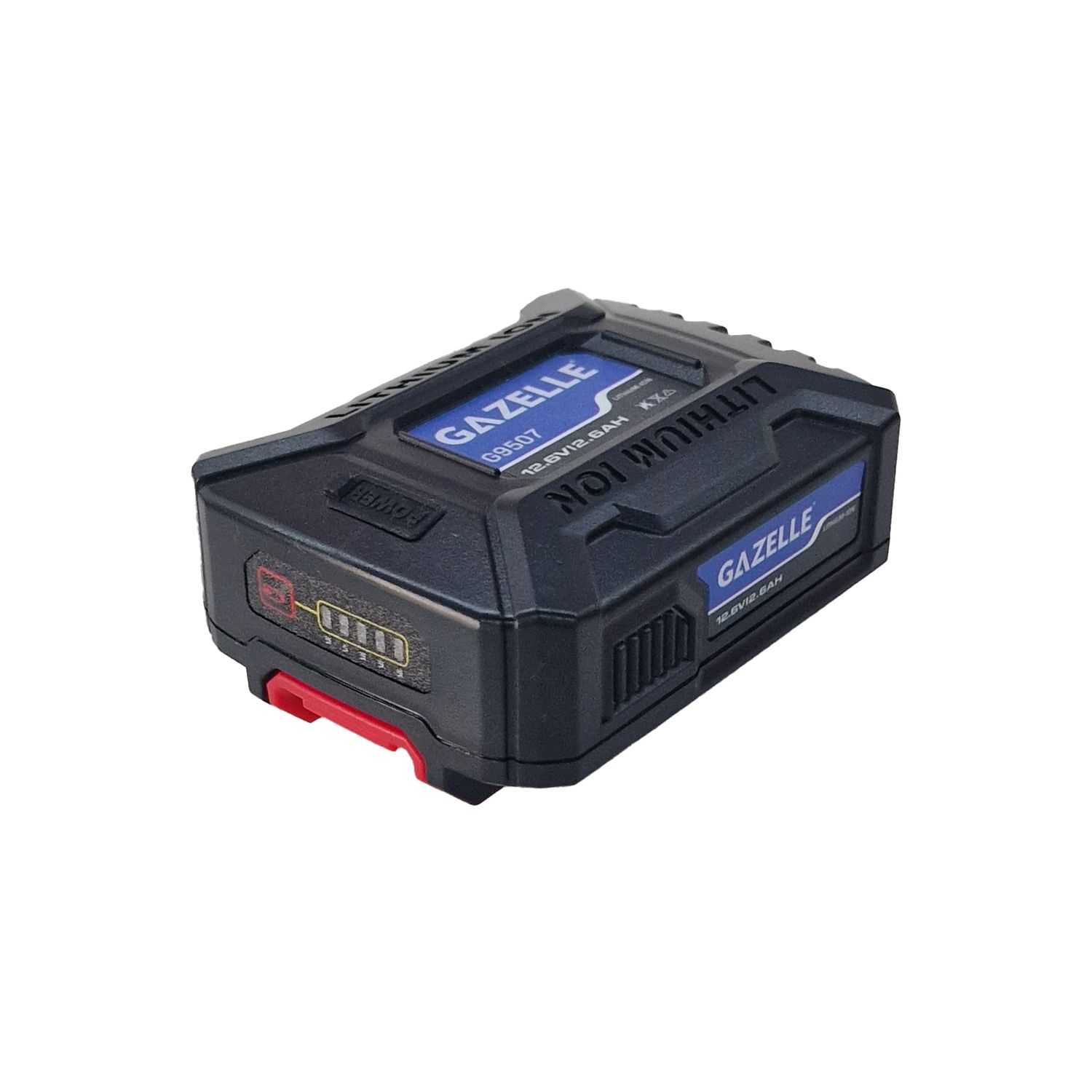

- Removable battery pack, 12.6V Battery, 2600mAh 2pcs

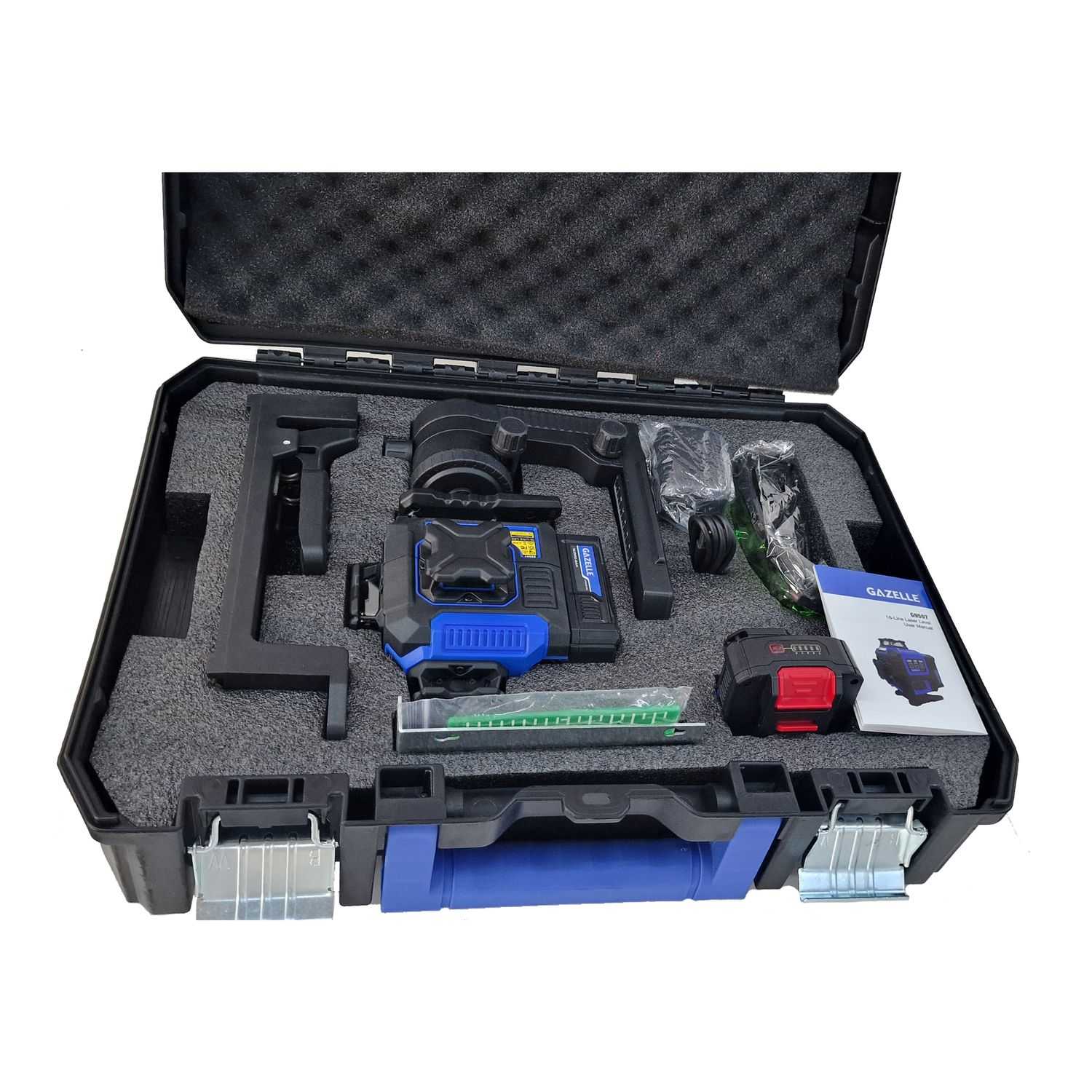

- Plastic carry case

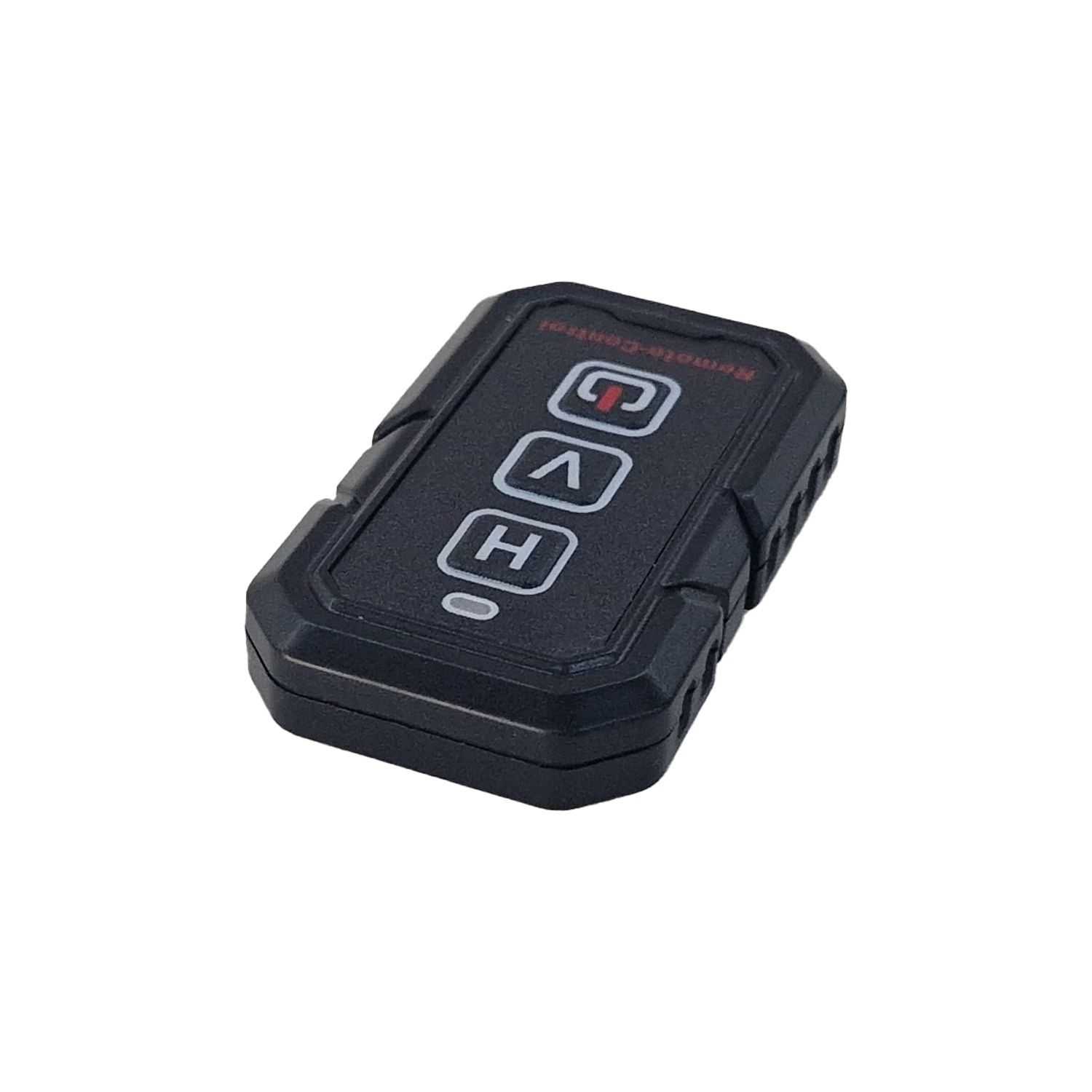

- Remote control

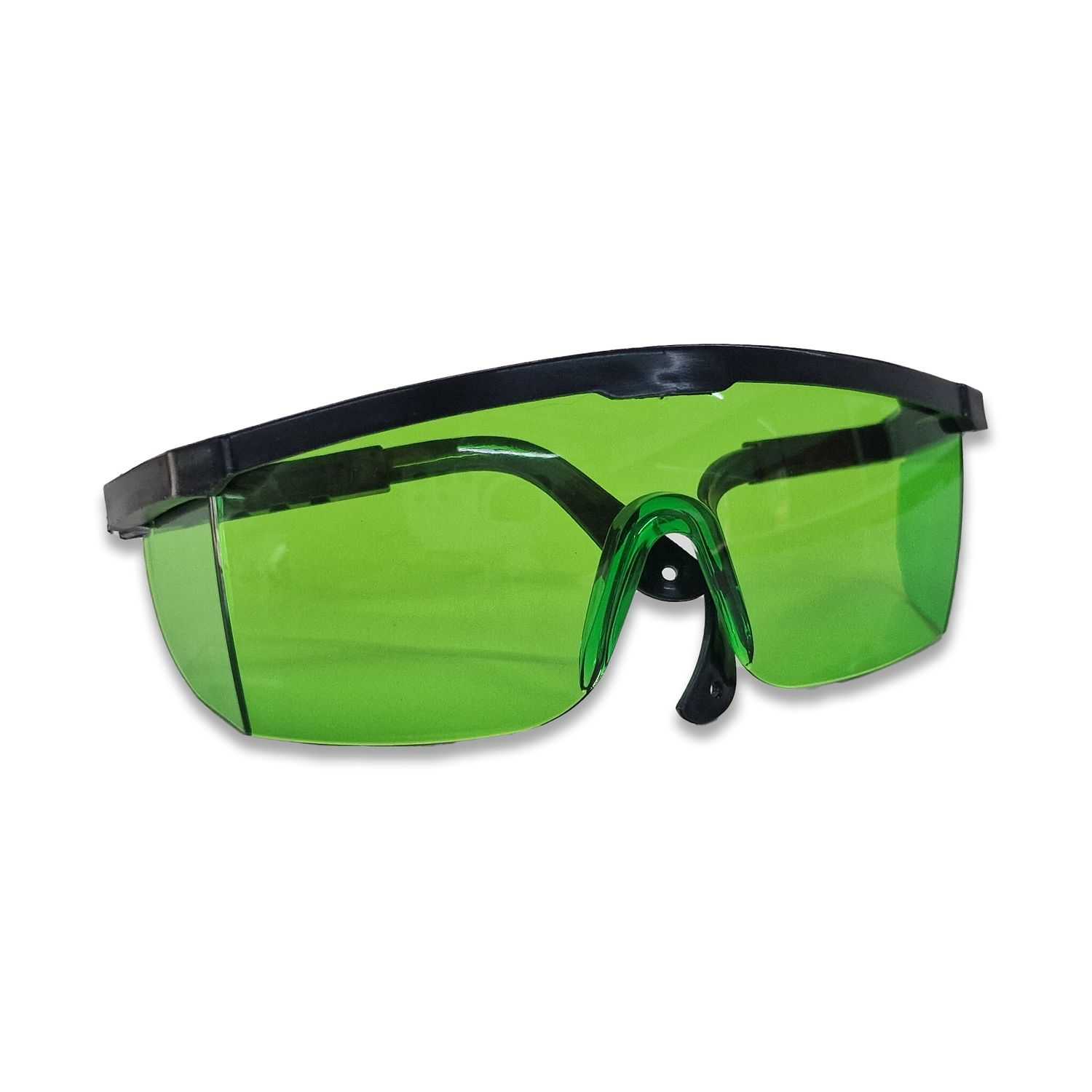

- Protective goggles
- Metal Base plate

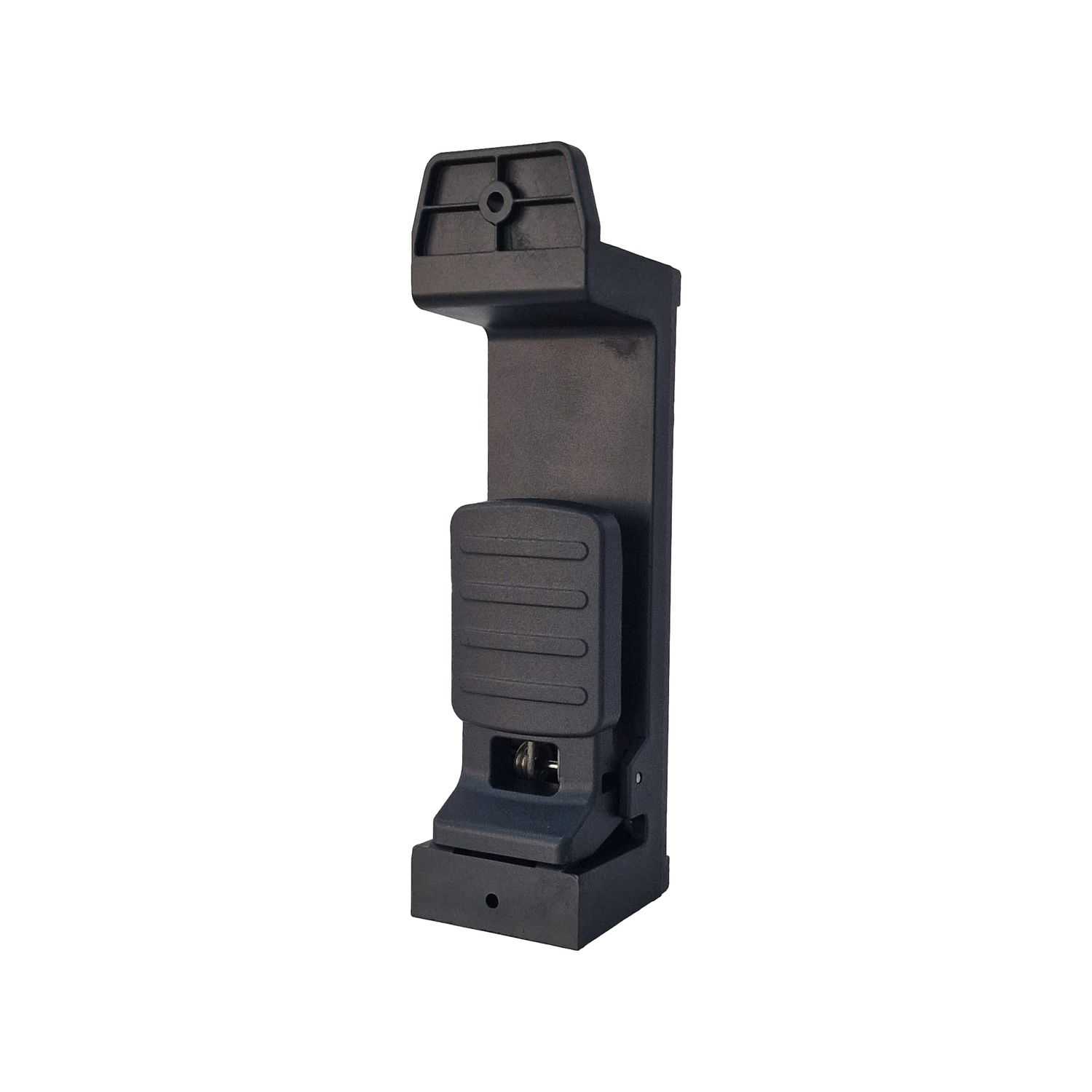

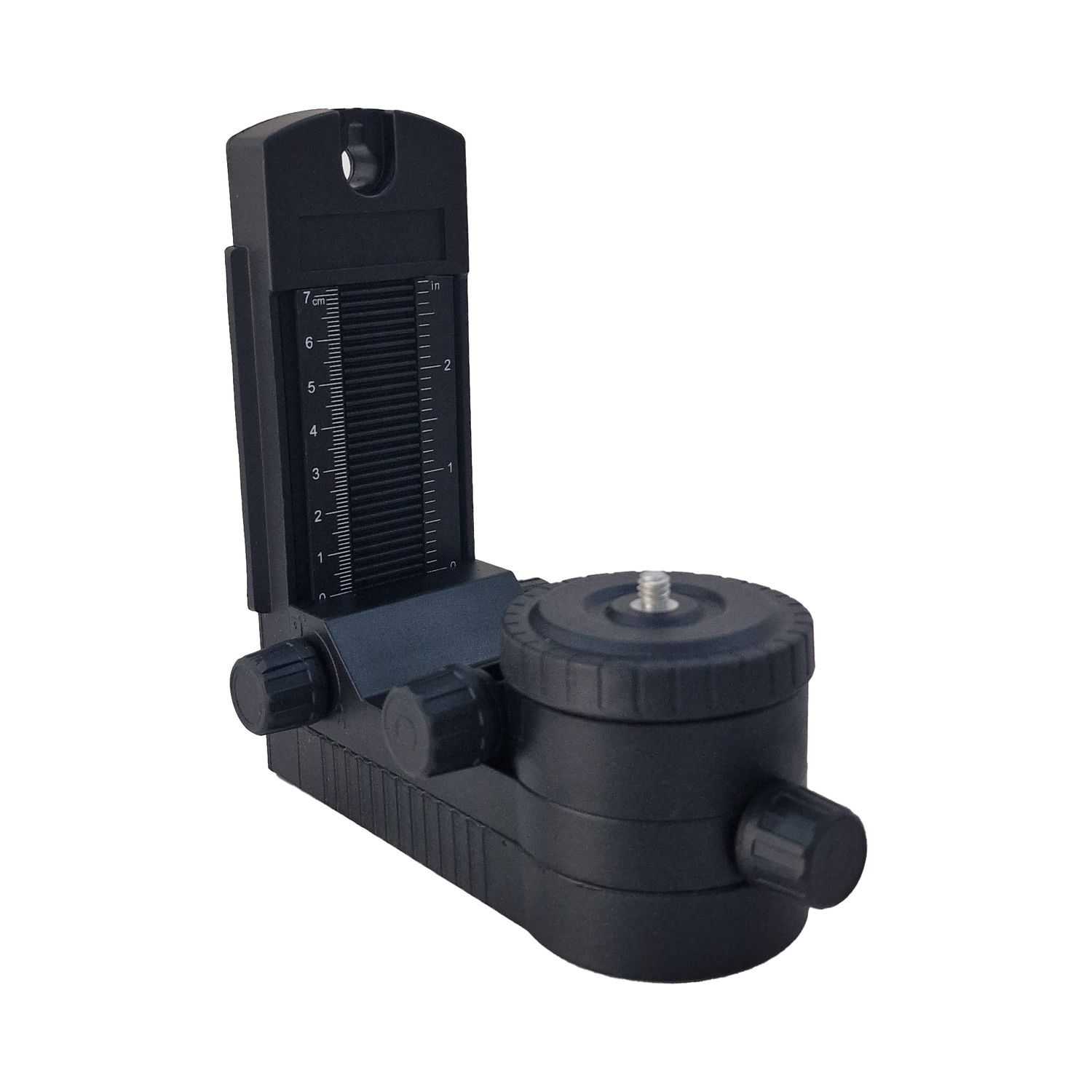

- Bracket

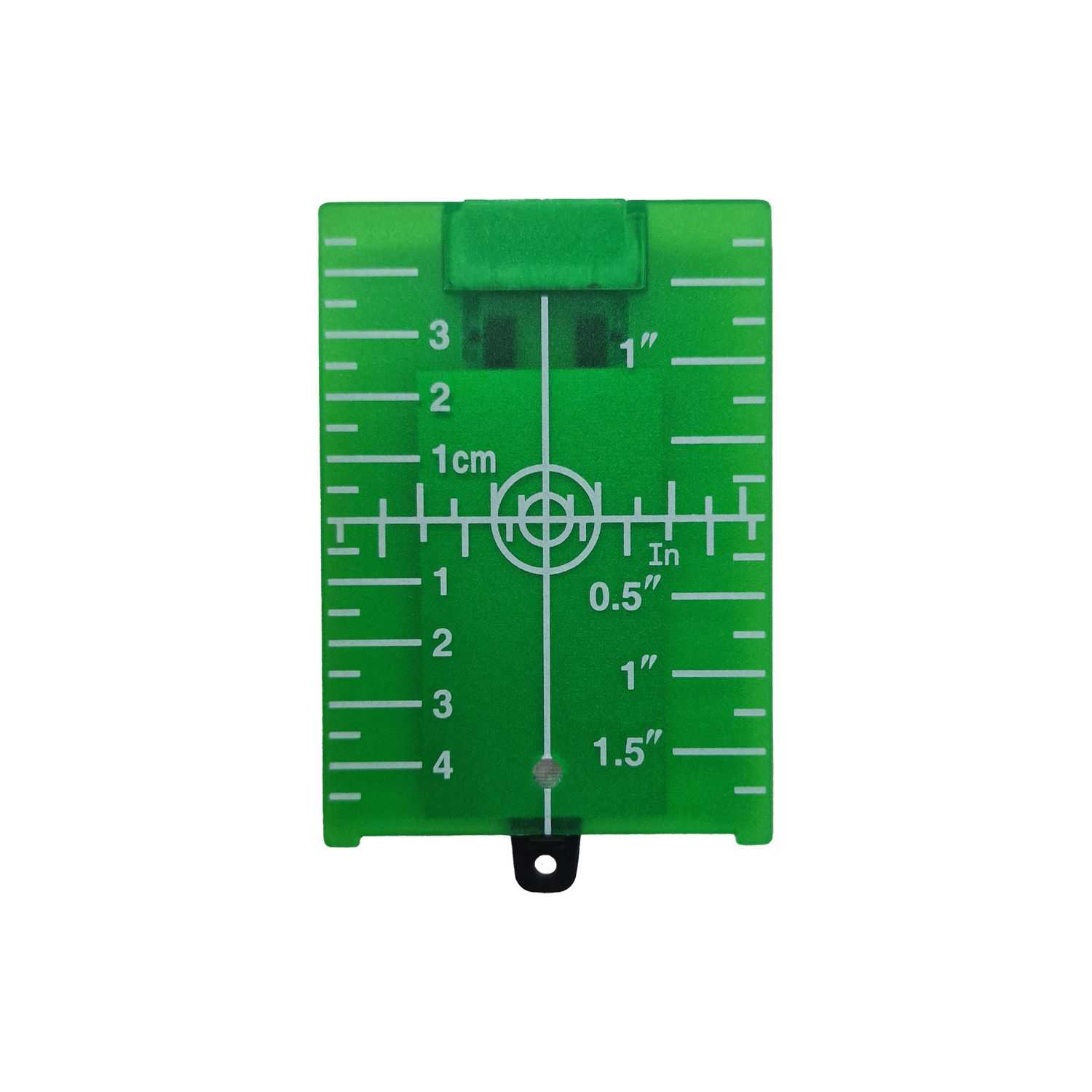

- Target point
- Charger and cable
FEATURES & APPLICATION
Features
The laser level body is ergonomic, comfortable to hold
- Protection class: IP54, the instrument is waterproof, shockproof and dustproof
Detachable lithium battery pack
- Self leveling: self-level up to 4 degrees automatically, accompanied by an optical cue that exceeds the self-leveling range, the laser line flashes
- Manual mode: Support for tilting laser lines manually at any angle, it is convenient for decoration or suspended ceilings etc, manually obtains slashes at any angle
- Pulse mode: Work with laser detector (the laser detector is not included and needs to be purchased separately) to extend further working distance range
- Power saving mode: 3 gears of adjustable brightness, adapt to different working environment brightness and reasonably extend instrument working time
- Power Display: Real time battery level display shows the residual power state
- 1 year manufacturer's warranty
Applications
- Interior Fit-Out & Ceiling Work: Dual 360° horizontal lines (upper & lower) simplify ceiling grid layout, wall leveling, and tile lines with ±3 mm @ 10 m accuracy and bright green beams.
- MEP & HVAC Contracting: Fast self-leveling (±4°, <3 s) keeps bracket, hanger, and duct runs true; Pulse mode supports a receiver for extended alignment in busy jobsite lighting.
- Construction & Surveying (Interior): 16 total lines (2H + 2V) create full-room reference planes for slab leveling, partition setting, and finish alignment—ideal for complex multi-surface layouts.
- Electrical Installation: Continuous vertical 360° planes let you carry socket, conduit, and switchboard heights around corners and across multiple walls without repositioning.
- Joinery, Fit-Out & Modular Fabrication: Fine-tune cabinet faces, millwork reveals, and modular assemblies; power-save brightness (100/50/25%) reduces glare for detail work.
- Facility Setup & Maintenance: Establish equipment footprints, machine centerlines, and aisle markings quickly; shutdown memory resumes your last beam configuration.
- Shopfitting & Commercial Interiors: Cross-room plumb and level references make shelving, displays, and glass partitions faster to align—IP54 build handles dust and splashes.
- Partitioning & Drywall: Use the wrap-around verticals to set studs, door frames, and bulkheads square; the 1/4"-20 mount works with tripods and brackets for flexible positioning.
- Tiling & Wet Areas: Keep courses dead-level on long bathroom or kitchen runs; manual tilt mode supports slopes and falls where required.
- Long Shifts on Site: Detachable 12 V Li-ion pack, USB-C charging, and power-save modes deliver long runtime; battery LEDs show remaining charge at a glance.
TECHNICAL SPECIFICATIONS
- Range30m
- Laser Class2
- Laser Lines16
- Laser ColorGreen
- Laser Wavelength510-530nm
- Leveling Accuracy±3mm/10m
- H/V Accuracy±3mm/10m
- Leveling Duration≤3s
- Leveling/Compensation Range4°±1°
- Operating TimeFirst gear - 10 hrs, Second gear - 18 hrs, Third Gear - 30 hrs
- Power Source12V Li-ion battery 2600mAh
- IP RatingIP54
- Operating Temperature-20°C to 40°C
- Storage Temperature-20°C to 60°C
- Mount Size1/4" -20 mounting thread
- Product Net Weight(without battery)0.48 kg
- Product Size100mm x 77.3mm x 112mm
