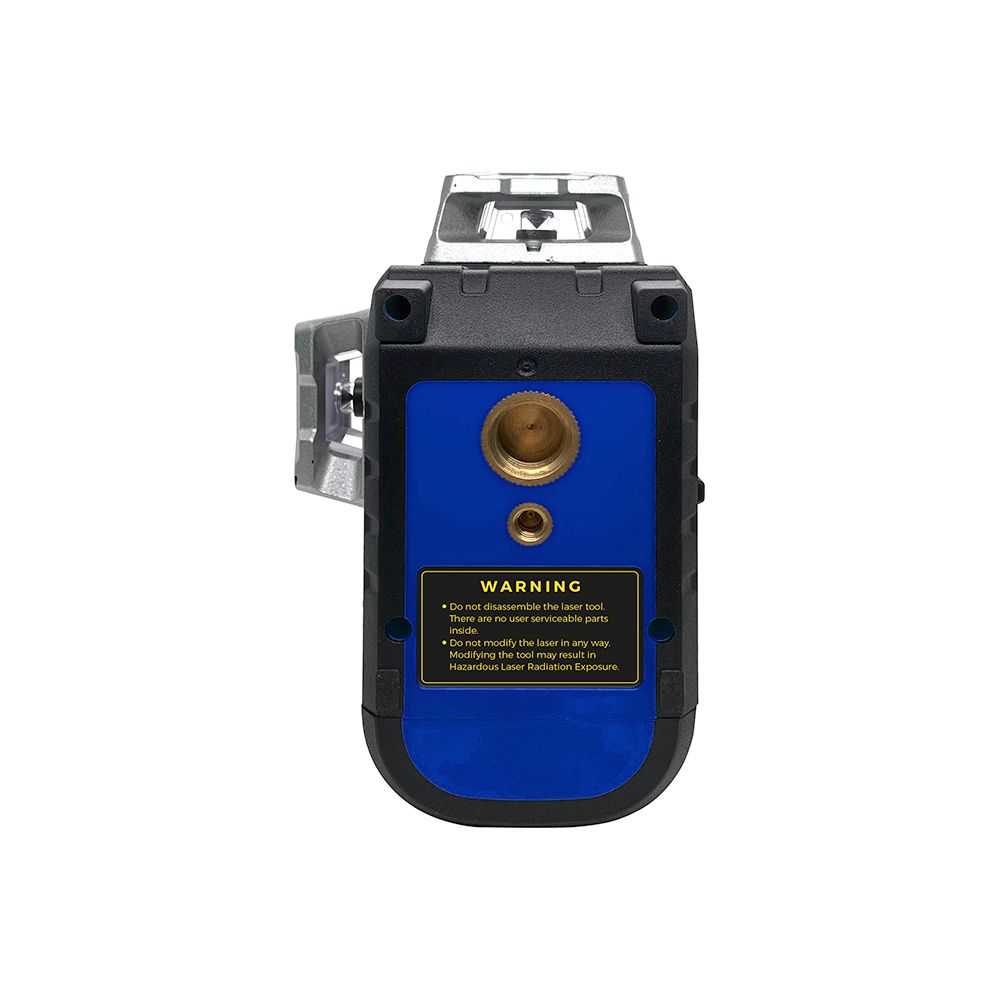

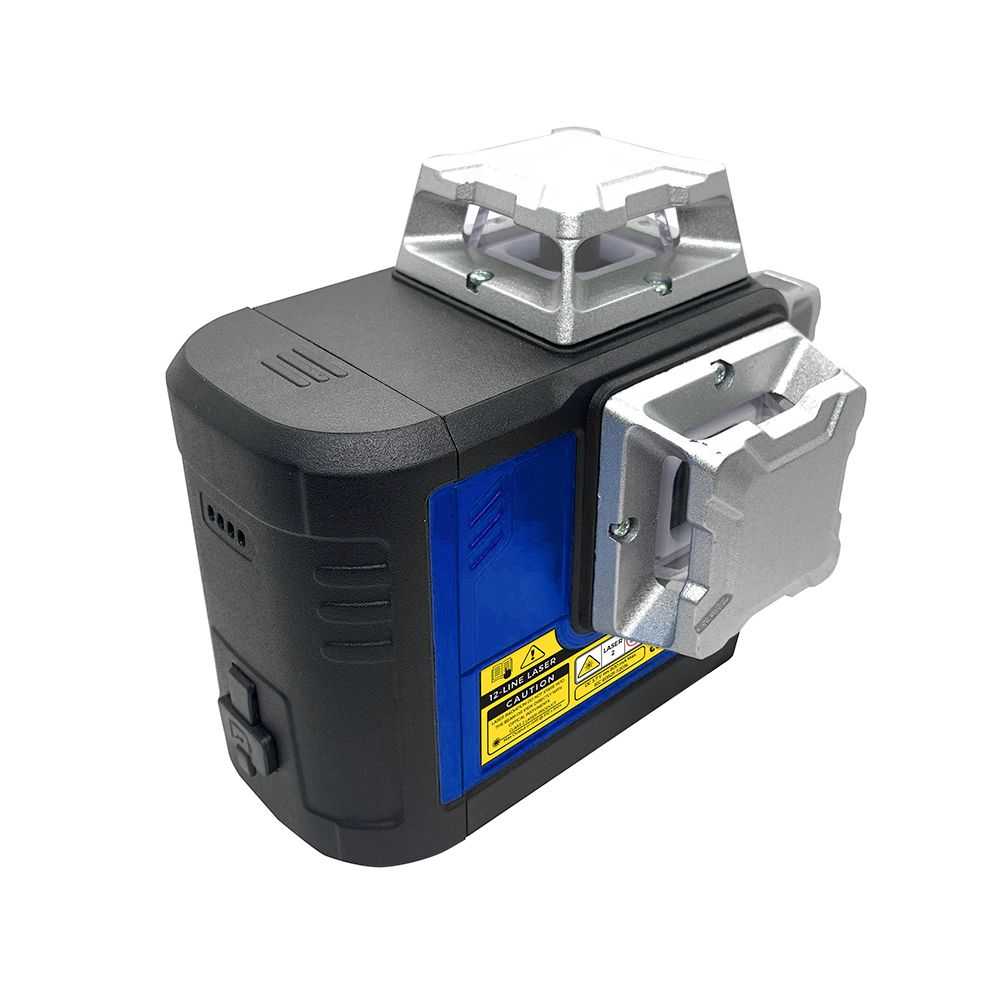

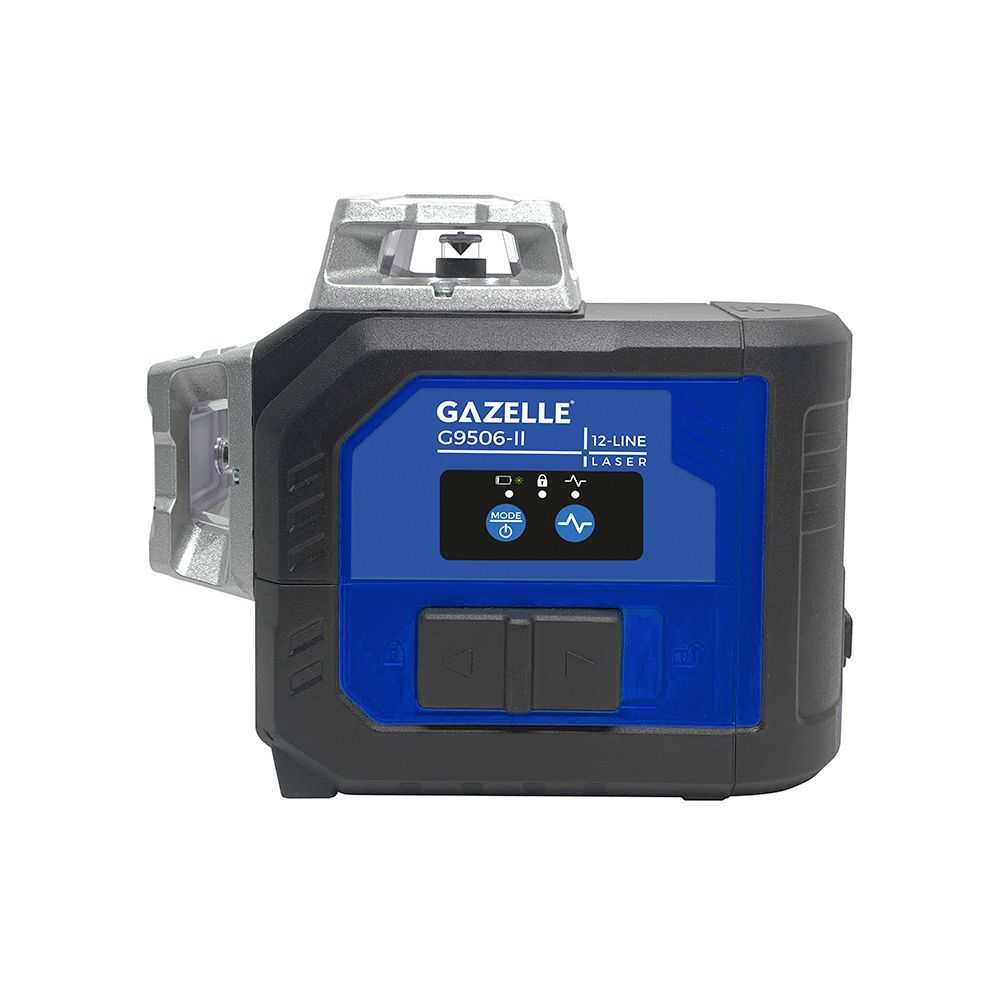

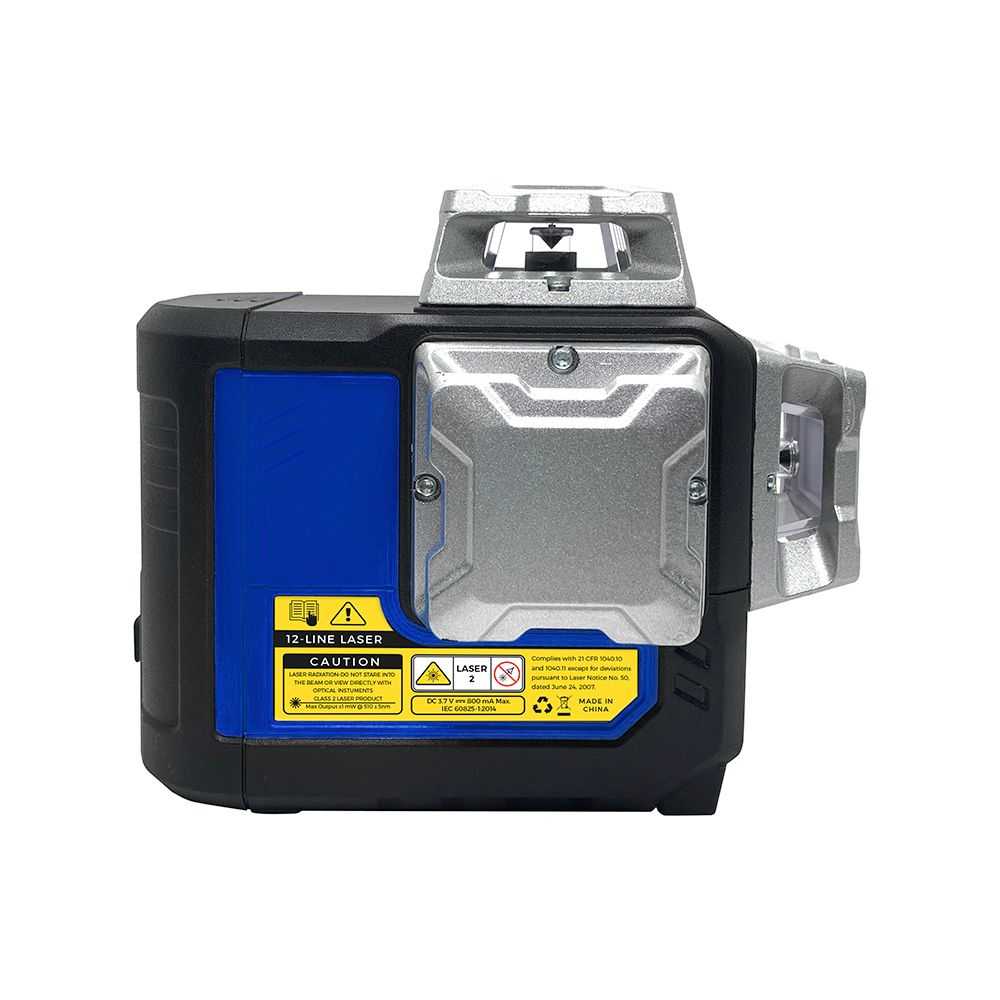

G9506-II 12-Line Green Laser Level, 60m
G9506-II 12-Line Green Laser Level, 60m
Features
- Range: 30m, 60m pulse mode
- Laser Class: 2
- Laser Lines: 12
- Laser Color: Green
- Laser Wavelength: 520nm
- Warranty: 1 year manufacturer's warranty
Scope of Delivery
- 1x Operating manual
- 1x Magnetic mounting bracket
- 1x USB cable and adapter
- 2x 7800 mAH battery
- 1x Eye glasses
- 1x Target plate
- 1x Hard carry case
FEATURES & APPLICATION
Features

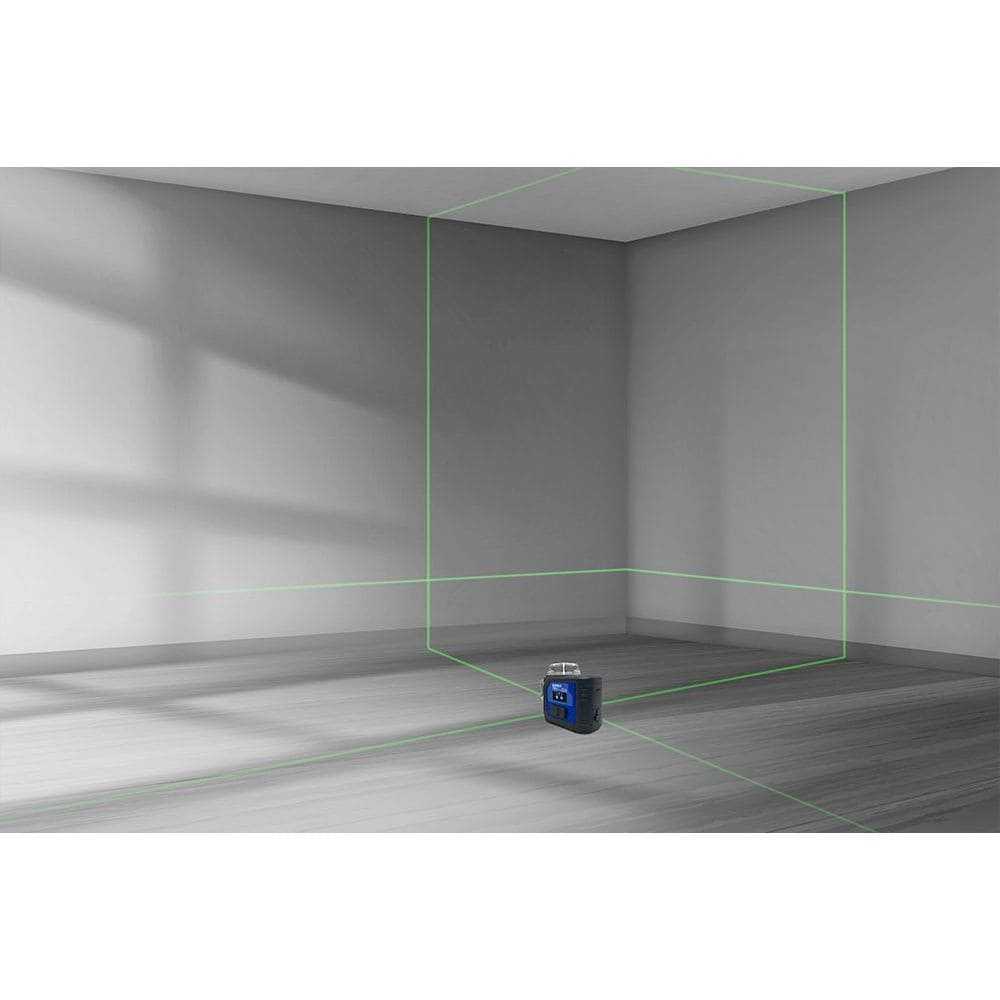

- Laser Coverage: Projects 3 x 360° 3D green laser lines for full-room horizontal and vertical coverage.
- Range & Accuracy: Extended range up to 60 meters in pulse mode with ±3mm/10m leveling accuracy.
- Dual Modes: Automatic self-leveling and manual tilt mode for angled layout tasks.
- Outdoor Visibility: Equipped with outdoor pulse mode for enhanced clarity in high ambient light.
- Battery Life: Up to 25 hours of continuous runtime on pulse mode with high-capacity 7800mAh Li-ion battery.
- Charging Port: Type-C charging port for fast and efficient power replenishment.
- Durability: Over-molded metal laser window with IP54 rating for dust and splash resistance.
- Mounting Compatibility: Supports both 1/4” and 5/8” mounting threads—compatible with a wide range of tripods and accessories.
- Leveling Speed: Fast leveling response in under 3 seconds for efficient setup.
- Environmental Tolerance: Built to perform in extreme temperatures from -10°C to 50°C with up to 90% humidity tolerance.
Applications
- Interior Fit-Out & Ceiling Work: 360° laser projection for ceiling grids, wall alignment, and tile layout
- MEP & HVAC Contracting: Accurate bracket and fixture alignment for ducting, piping, and cable trays
- Construction & Surveying: Full-room layout planning, structural leveling, and finish alignment

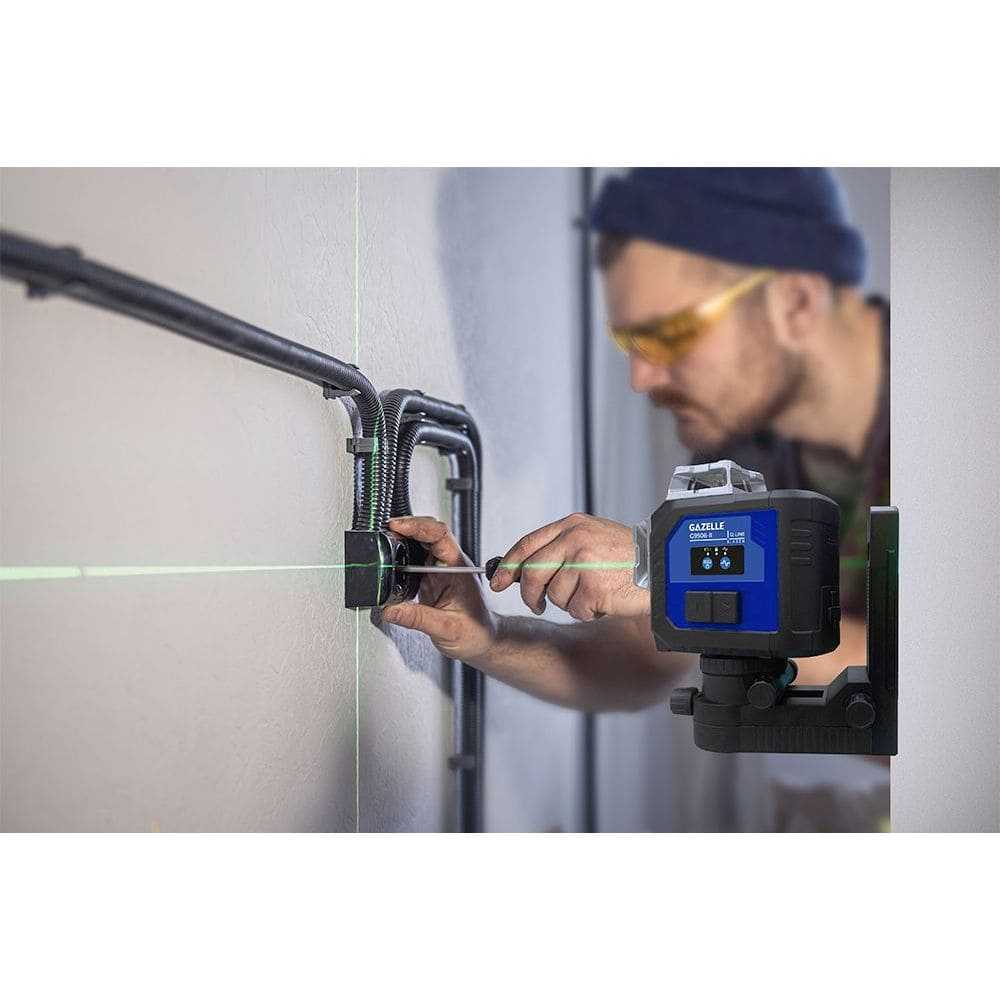

- Electrical Installation: Socket, switchboard, and conduit leveling across multiple walls
- Joinery & Modular Fabrication: Precision in cabinet installation and millwork alignment
- Facility Setup & Maintenance: Equipment placement, layout calibration, and spatial planning
- Shopfitting & Commercial Interiors: Multi-surface alignment for complex installations
TECHNICAL SPECIFICATIONS
- Range30m, 60m pulse mode
- Laser Class2
- Laser Lines12
- Laser ColorGreen
- Laser Wavelength520nm
- Leveling Accuracy±3mm/10m
- H/V Accuracy±3mm/10m
- Leveling Duration≤3s
- Leveling/Compensation Range4°±1°
- Operating Time (All beams)~12.5 hours
- Operating Time (Pulse)~25 hours
- Power SourceLi-ion battery 7800Mah
- IP RatingIP54
- Operating Temperature-10°C to 50°C
- Storage Temperature-25°C to 75°C
- Max relative air humidity90%
- Mount Size1/4 and 5/8"
- Product Net Weight1.05 kg
- Product Size139mm x 188mm x 99mm
