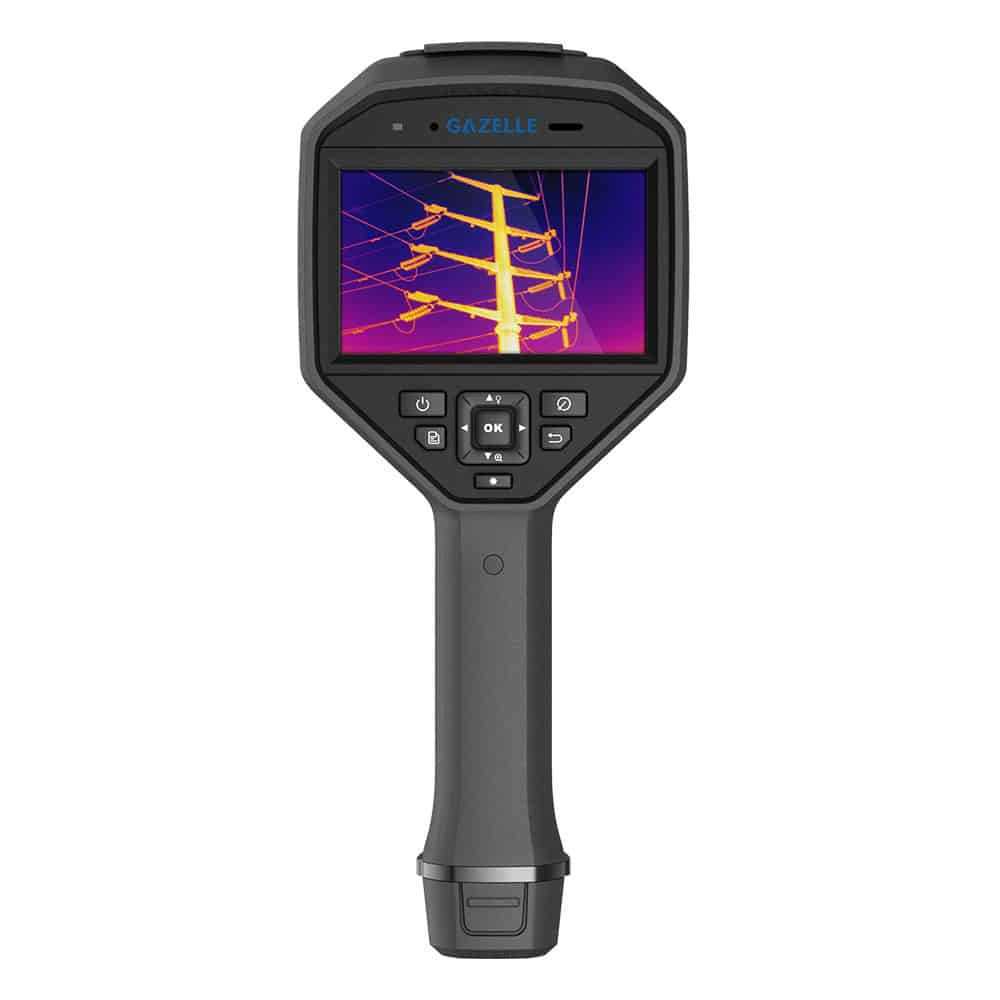

G9706 Pro Advanced Thermal Imager, 640x480P

Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P
Advanced Thermal Imager, 640x480P

G9706 Pro Advanced Thermal Imager, 640x480P

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • Temperature Range: -20 to 650°C
  • IR Resolution: 640x480 pixels
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Pitch: 17µm
  • Field of View: 25°x19°
  • Warranty: 1 year manufacturer's warranty

Scope of Delivery

  • Quick Start Guide (x1)
  • Type-C Cable (x1)
  • Hand Strap (x1)
  • CVBS Cable (x1)
  • Charging Base (x1)
  • Battery (x2)
  • Micro SD Card (x1)
  • Box (x1)
  • Tools Package (x1)
  • Charger (x1)
  • Lens Cover (x1)

FEATURES & APPLICATION

Features

  • High Thermal Resolution: 640x480 pixels (307,200 pixels) for detailed and accurate thermal imaging.
  • Wide Temperature Range: Measures temperatures from -20°C to 650°C (-4°F to 1202°F), suitable for diverse applications.
  • Advanced Image Sensor: Equipped with Vanadium Oxide Uncooled Focal Plane Arrays for superior performance.
  • Precise Spatial Resolution: 0.68mrad IFOV for pinpoint accuracy in temperature measurement.
  • Fast Image Frequency: 50Hz for smooth and real-time thermal imaging.
  • Customizable Measurement Presets: Includes center spot, hot spot, cold spot, and user-defined points, lines, and areas.
  • Manual and Auto Focus: Allows precise targeting of areas as close as 6 inches or from greater distances.
  • Large Field of View: 25°x19° with a 25mm focal length for comprehensive coverage.
  • Durable and Ergonomic Design: Features a 4.3” LCD touch screen display and an 8MP optical camera for enhanced usability.
  • Extended Battery Life: Up to 4 hours of continuous operation with two included batteries.

Applications

  • Industrial Maintenance: Identifies hotspots in machinery, motors, and pumps to prevent failures and downtime.

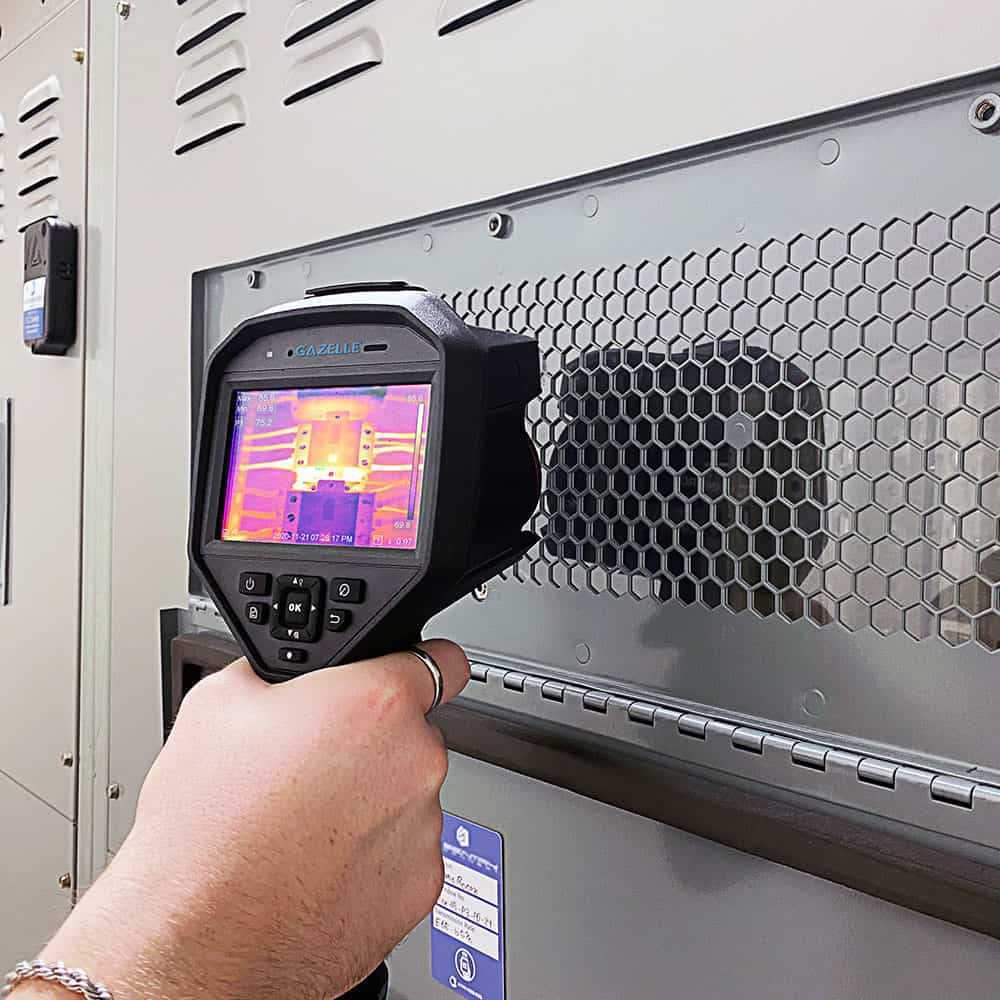

  • Electrical Systems: Detects overheating in panels, circuits, and transformers for safety and efficiency.
  • HVAC Systems: Monitors temperature distribution in ducts, vents, and compressors for optimal performance.
  • Energy Sector: Inspects power plants, renewable energy systems, and high-voltage equipment for thermal anomalies.
  • Construction & Infrastructure: Evaluates insulation, roofing, and building materials for energy efficiency and safety.
  • Automotive Industry: Diagnoses thermal issues in engines, brakes, and electrical systems for quality control.
  • Research & Development: Supports experiments and studies requiring precise thermal imaging and analysis.
  • Healthcare: Assists in medical diagnostics and laboratory applications requiring accurate temperature monitoring.

TECHNICAL SPECIFICATIONS

  • Temperature Range-20 to 650°C
  • IR Resolution640x480 pixels
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Pitch17µm
  • Field of View25°x19°
  • Focal Length25mm
  • Spatial Resolution (IFOV)0.68mrad
  • ApertureF1.1
  • Image Frequency50Hz

SERVICES

HiltiIconGazelle Tool Service
  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

TrustedTrusted by Professionals
  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DOWNLOADS

PACKAGING INFO

  • Width26 cm
  • Length51 cm
  • Height26 cm
  • Weight5.8 Kg
