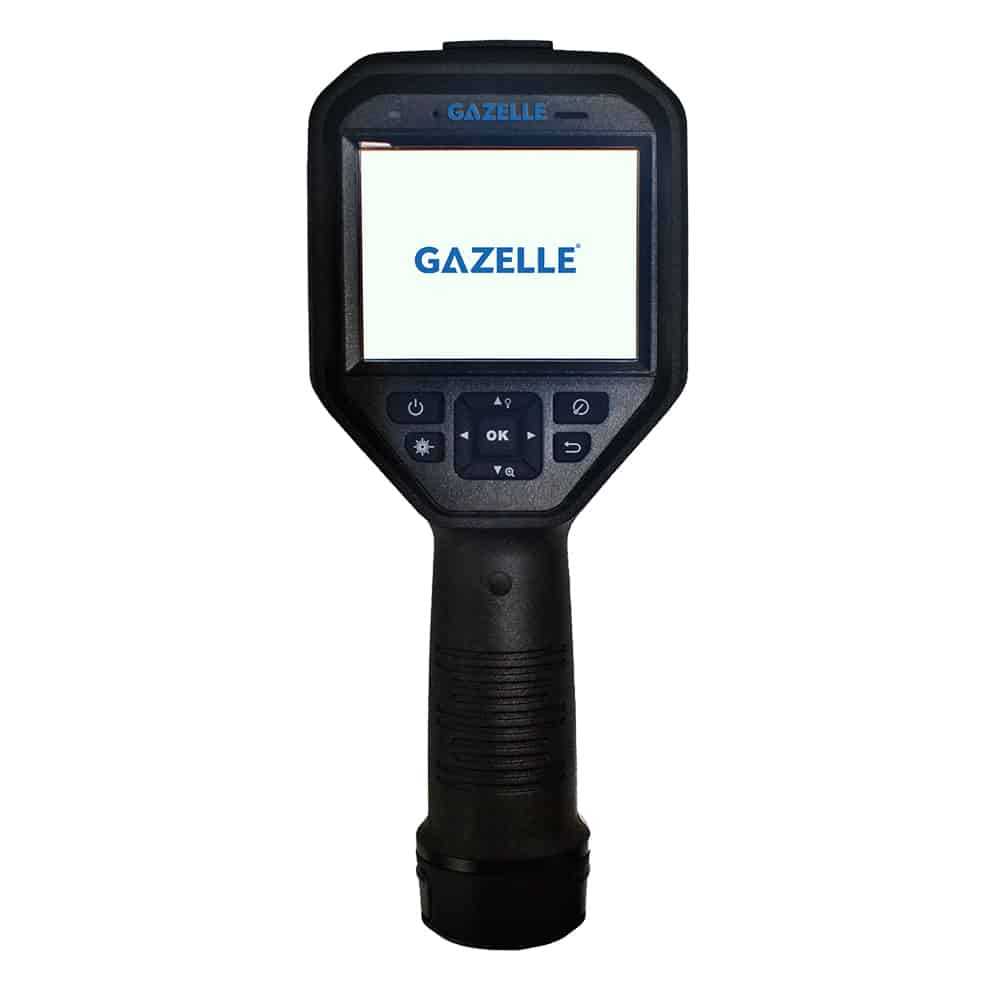

G9701 Thermal Imager, 160x120p
G9701 Thermal Imager, 160x120p
Features
- Device detects the real-time temperature, and display it on the screen.
- Device is equipped with built-in memory module to store recorded videos, captured snapshots, and important data.
- Device can display fusion of thermal view and optical view.
- Device supports multiple palettes, and you can set the palette mode according to the alarm function.
- Long-distance laser light supplement to point the thermography target.
- 1 year warranty against manufacturing defect only
Technical Specifications
Temperature Range-20 to 550°C
IR Resolution160x120 pixels
Image SensorUncooled Focal Plane Arrays
Pixel Pitch17µm
Field of View25°x18.7°
Focal Length6.2mm
Spatial Resolution (IFOV)2.74mrad
ApertureF1.1
Image Frequency25Hz
Items Included
- User Manual(x1)
- Power Adapter Kit
- USB Cable(x1)
- Professional Carry Case
- Wrist Strap
- Battery
- Charging Dock
Software
Packaging Info
- Width23 cm
- Length42.5 cm
- Height35 cm
- Weight3.4 kg
- Temperature Range-20 to 550°C
- IR Resolution160x120 pixels
- Image SensorUncooled Focal Plane Arrays
- Pixel Pitch17µm
- Field of View25°x18.7°
- Focal Length6.2mm
- Spatial Resolution (IFOV)2.74mrad
- ApertureF1.1
- Image Frequency25Hz
