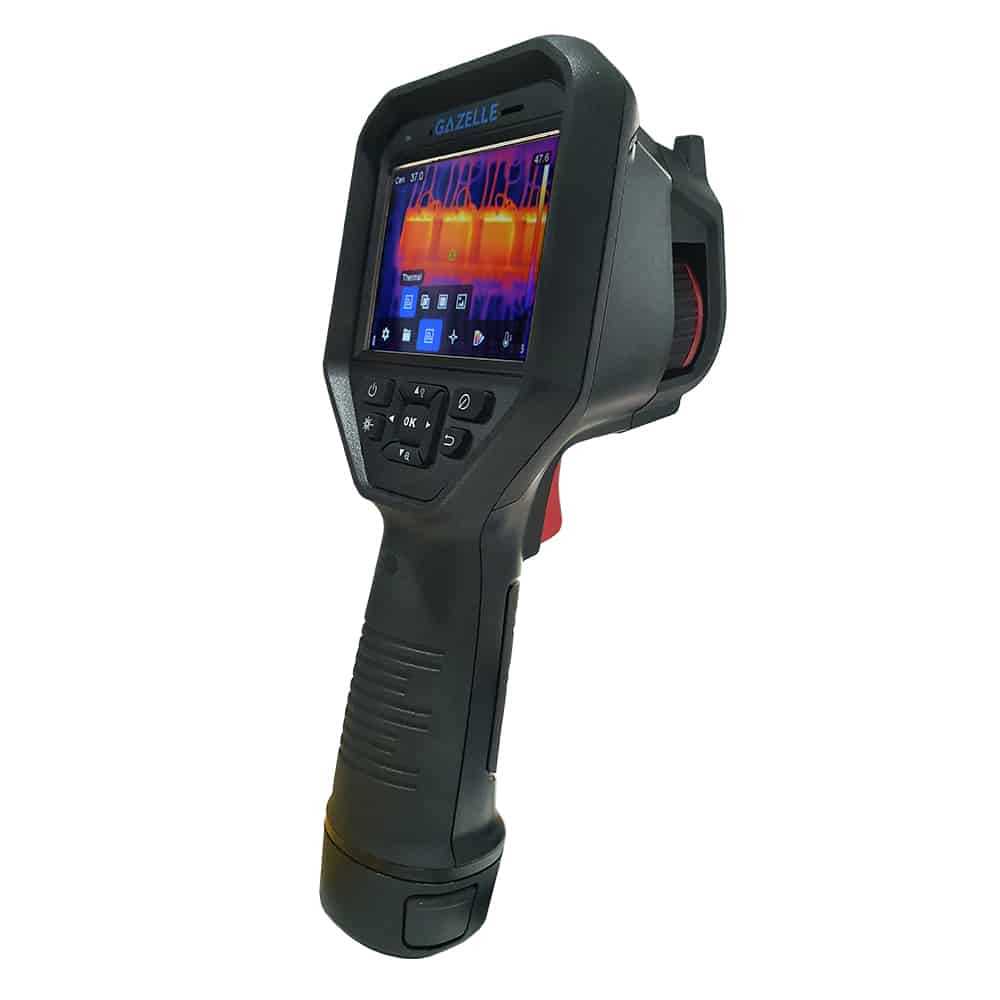

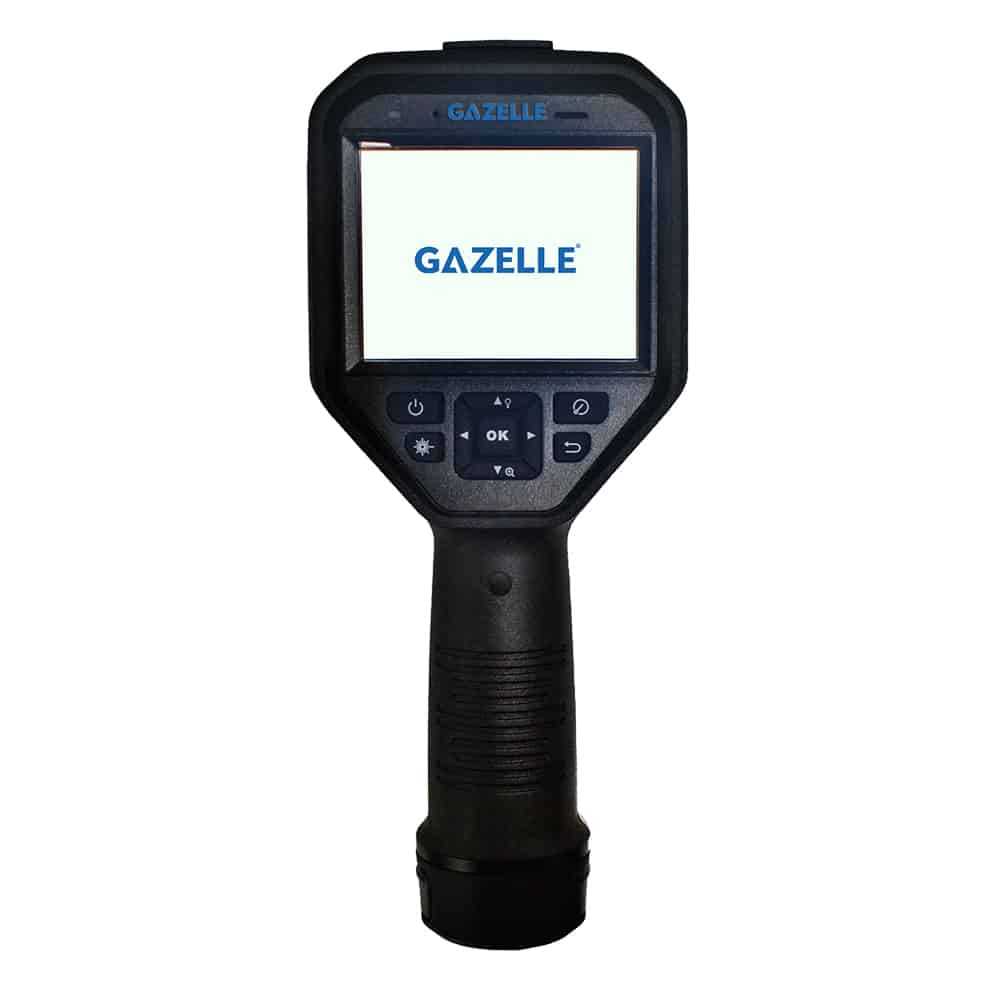

G9701 Pro Thermal Imager, 190x144p
G9701 Pro Thermal Imager, 190x144p
Features
- Temperature Range: -20 to 550°C
- IR Resolution: 160x120 pixels
- Image Sensor: Uncooled Focal Plane Arrays
- Pixel Pitch: 17µm
- Field of View: 25°x18.7°
- Warranty: 1 year manufacturer's warranty
Scope of Delivery
- User Manual(x1)
- Power Adapter Kit
- USB Cable(x1)
- Professional Carry Case
- Wrist Strap

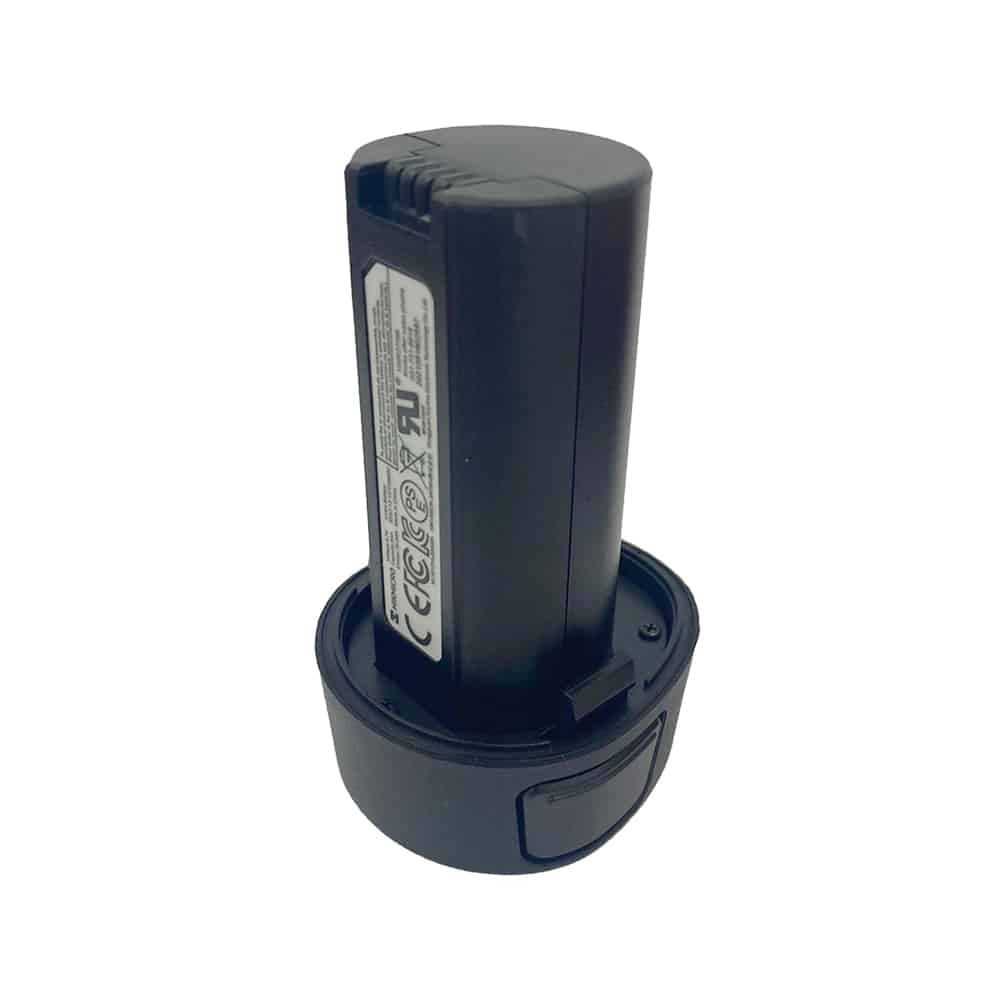

- Battery

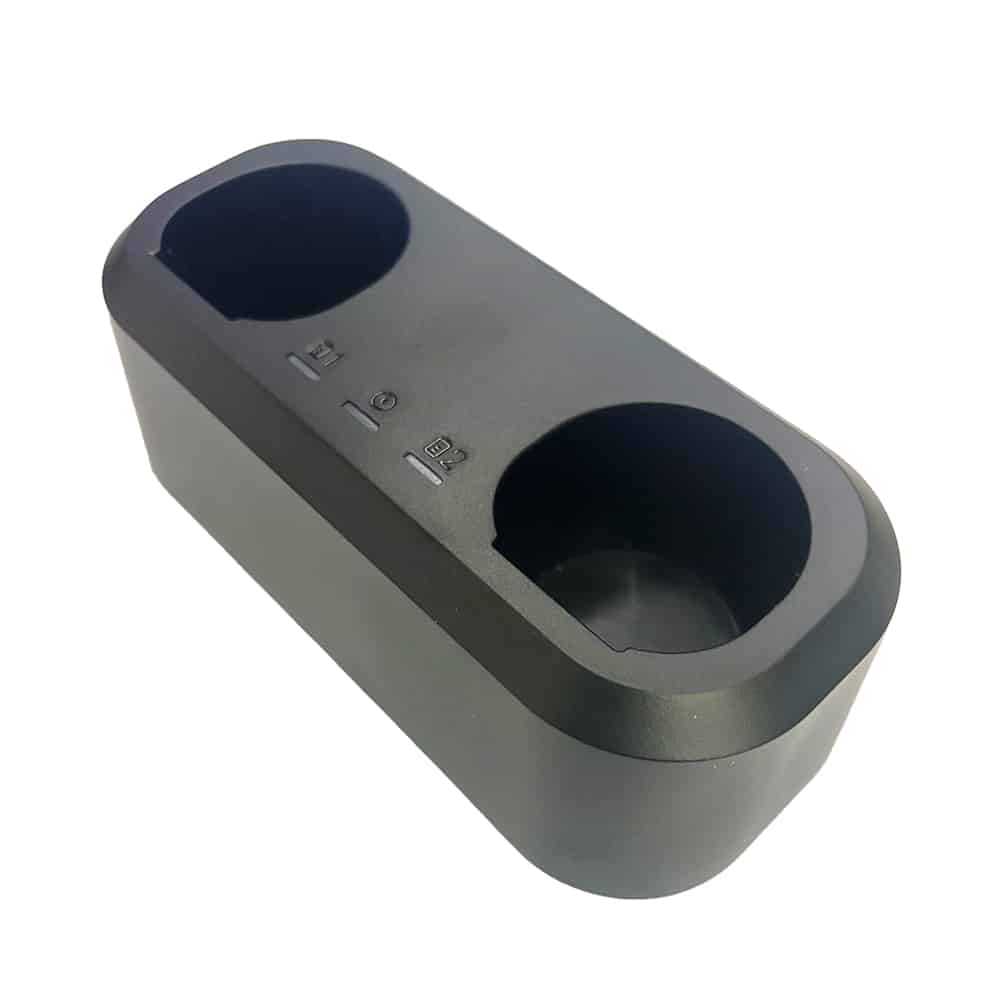

- Charging Dock
FEATURES & APPLICATION
Features
- High Temperature Range: Measures temperatures from -20°C to 550°C, suitable for diverse applications.
- Thermal Resolution: 190x144 pixels for clear and detailed thermal imaging.
- Advanced Image Sensor: Equipped with Uncooled Focal Plane Arrays for reliable performance.
- Precise Spatial Resolution: 2.74mrad IFOV for accurate temperature measurements.
- Fusion Imaging: Displays a combination of thermal and optical views for enhanced diagnostics.
- Multiple Palettes: Offers customizable palette modes to suit different applications and alarm functions.
- Laser Targeting: Long-distance laser light for precise thermography targeting.
- Built-In Memory: Stores recorded videos, snapshots, and important data for easy access.
- Durable and Portable: Compact design with a professional carry case for fieldwork.
- Fast Image Frequency: 25Hz frame rate for smooth and real-time thermal imaging.
Applications

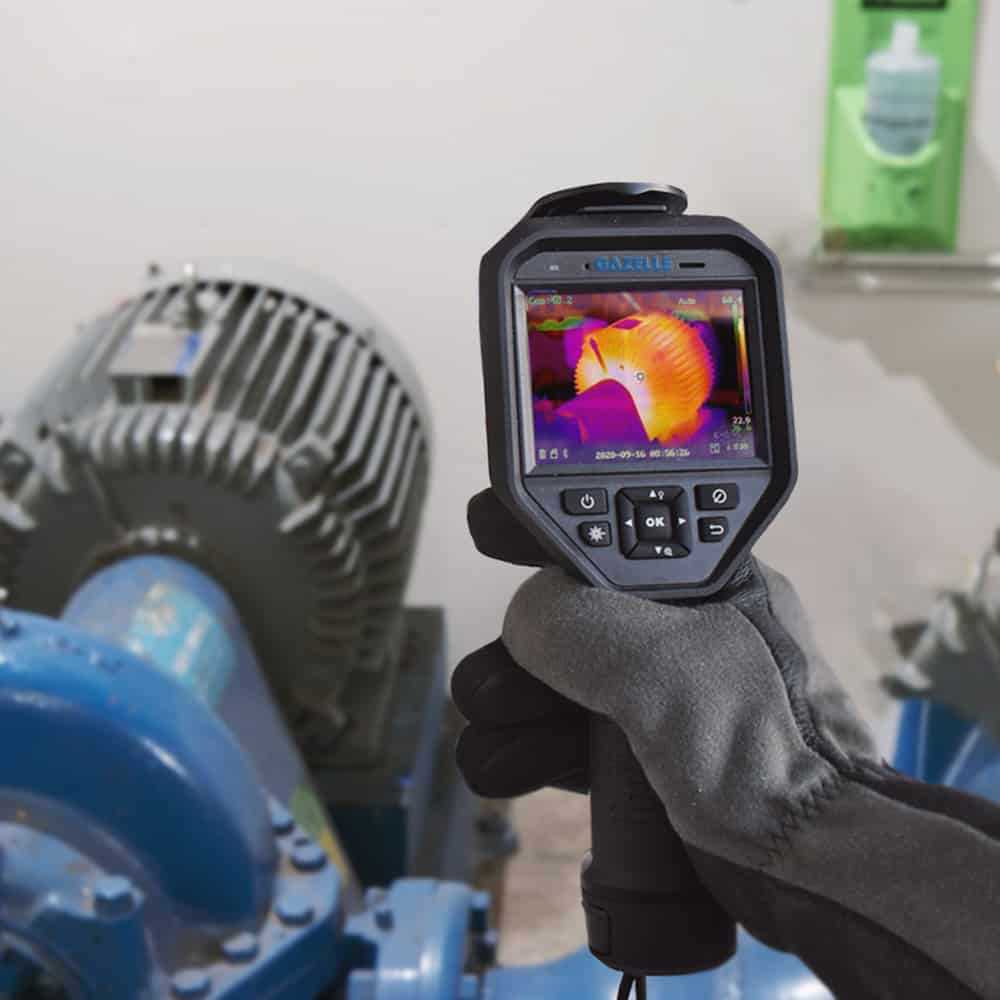

- Industrial Maintenance: Identifies hotspots in machinery, motors, and pumps to prevent failures and downtime.

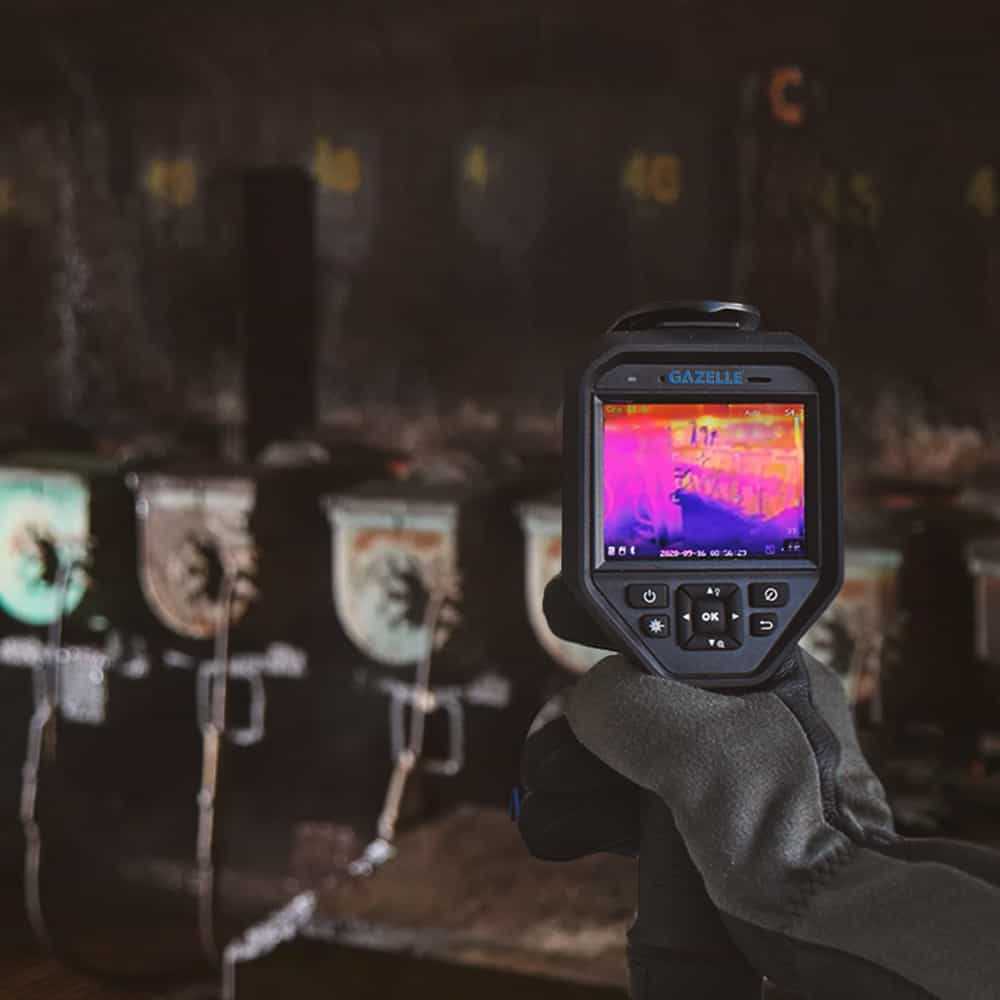

- Electrical Systems: Detects overheating in panels, circuits, and transformers for safety and efficiency.
- HVAC Systems: Monitors temperature distribution in ducts, vents, and compressors for optimal performance.

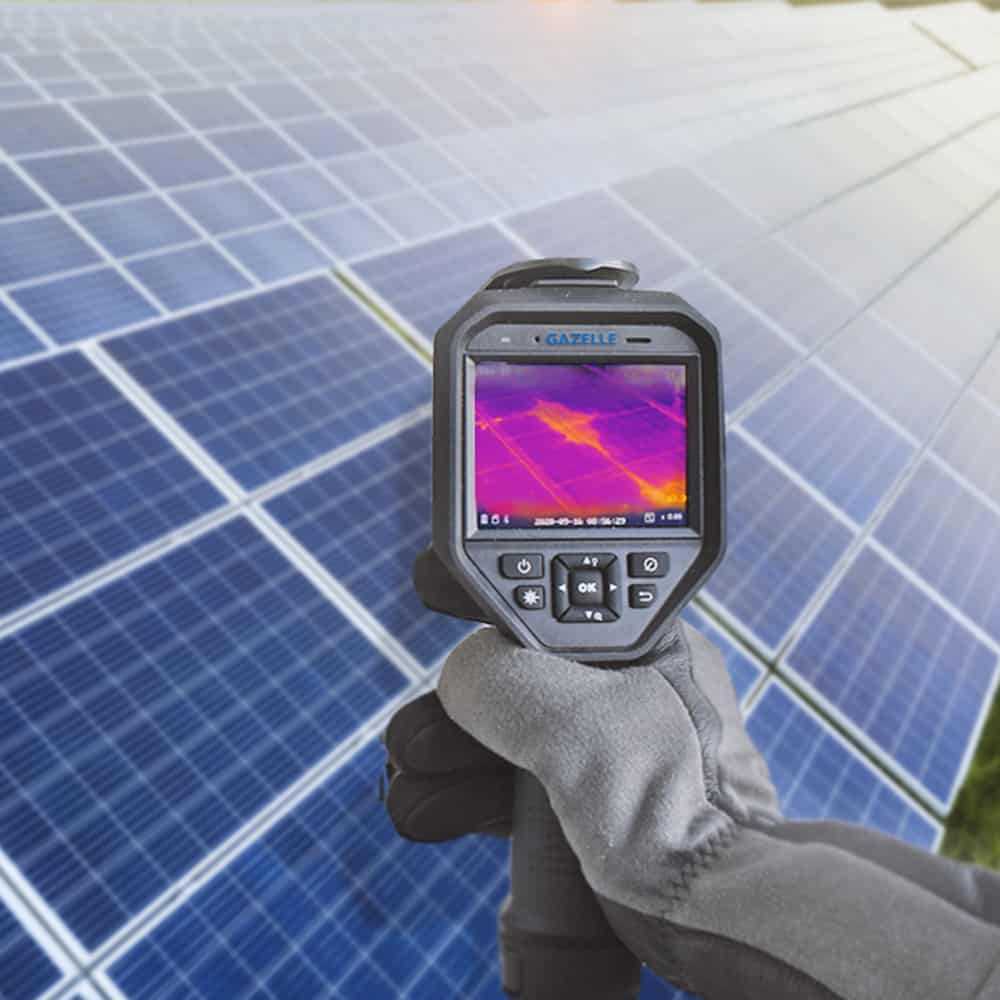

- Energy Sector: Inspects power plants, renewable energy systems, and high-voltage equipment for thermal anomalies.
- Construction & Infrastructure: Evaluates insulation, roofing, and building materials for energy efficiency and safety.
- Automotive Industry: Diagnoses thermal issues in engines, brakes, and electrical systems for quality control.
- Research & Development: Supports experiments and studies requiring precise thermal imaging and analysis.
- Healthcare: Assists in medical diagnostics and laboratory applications requiring accurate temperature monitoring.
TECHNICAL SPECIFICATIONS
- Temperature Range-20 to 550°C
- IR Resolution190x144 pixels
- Image SensorUncooled Focal Plane Arrays
- Pixel Pitch17µm
- Field of View25°x18.7°
- Focal Length6.2mm
- Spatial Resolution (IFOV)2.74mrad
- ApertureF1.1
- Image Frequency25Hz
