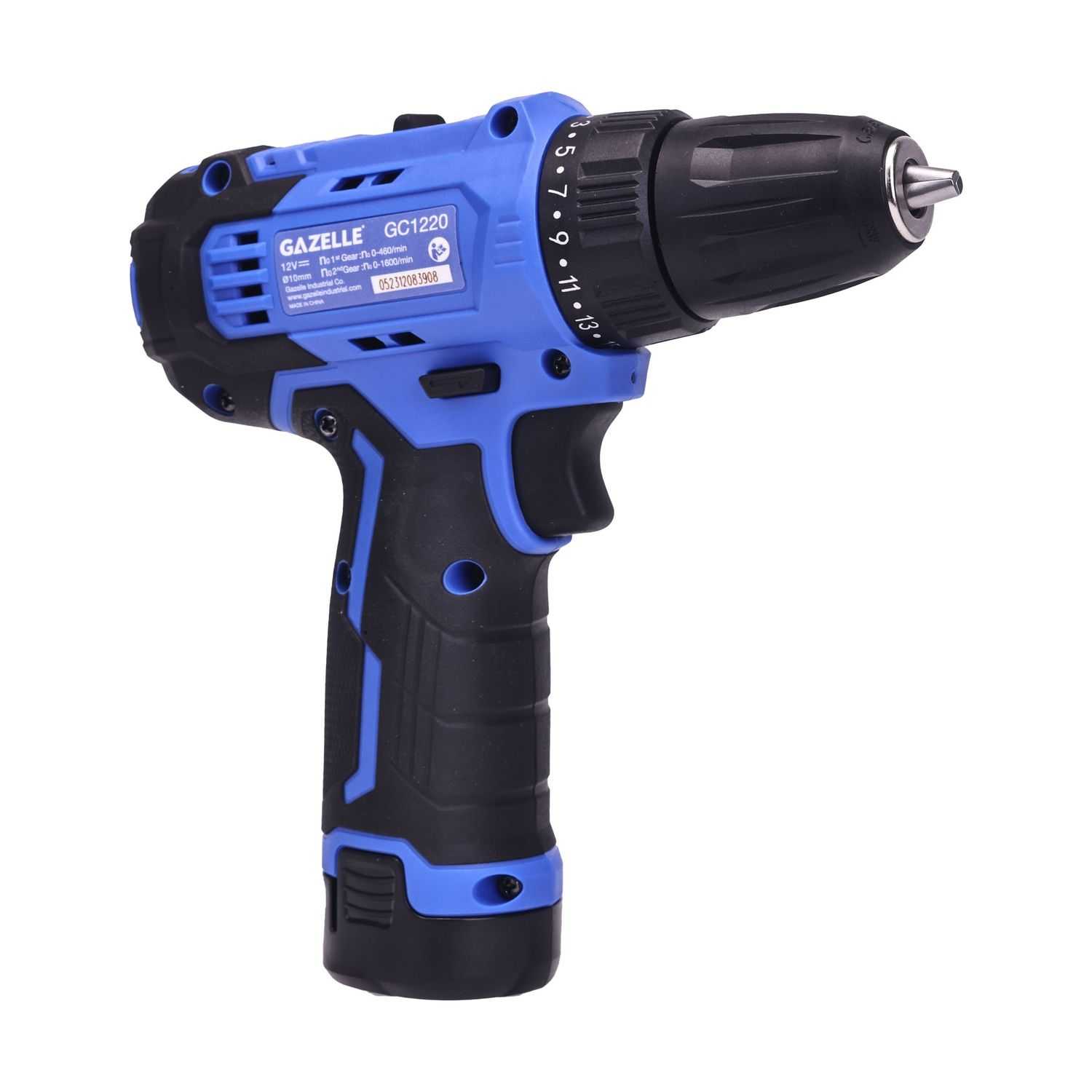

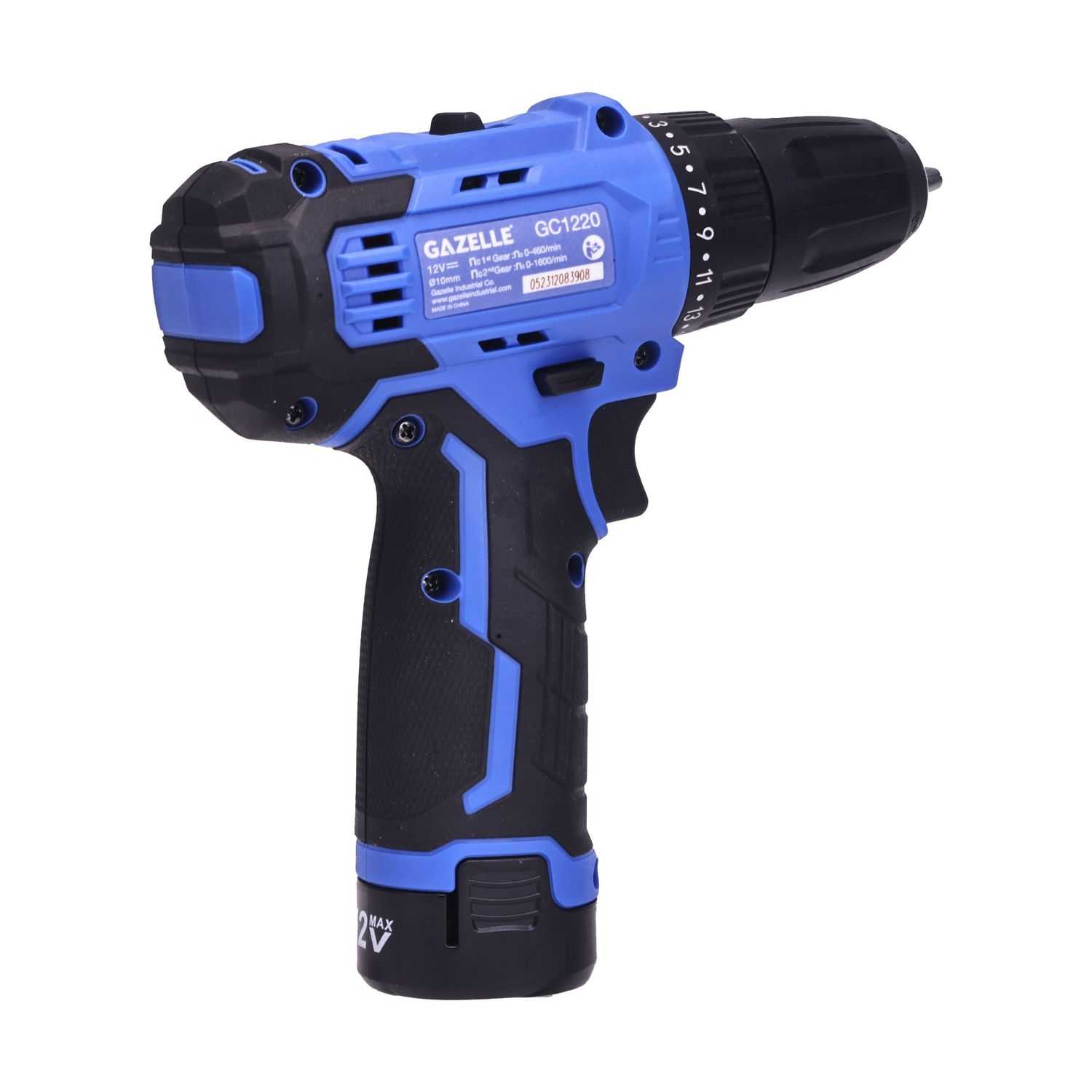

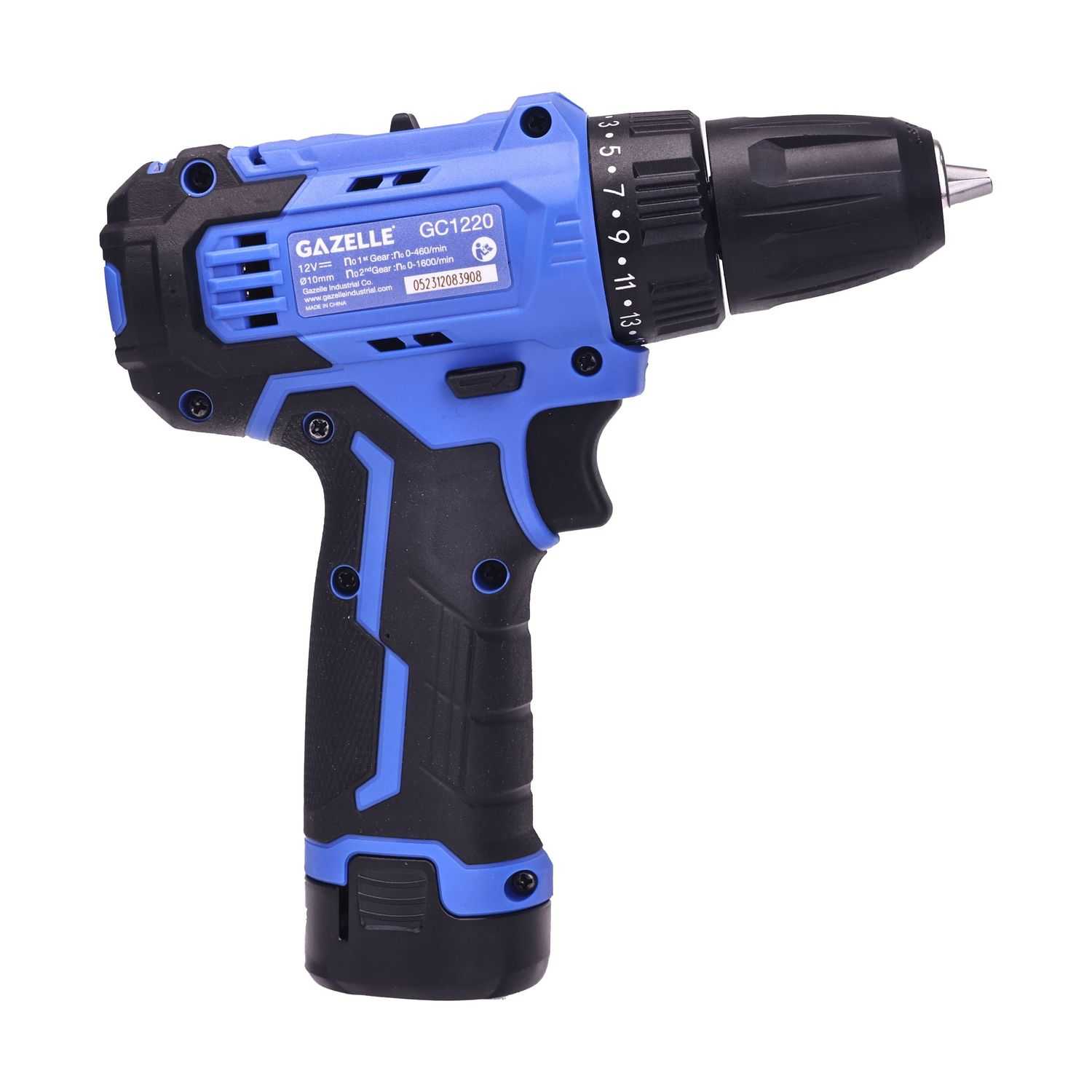

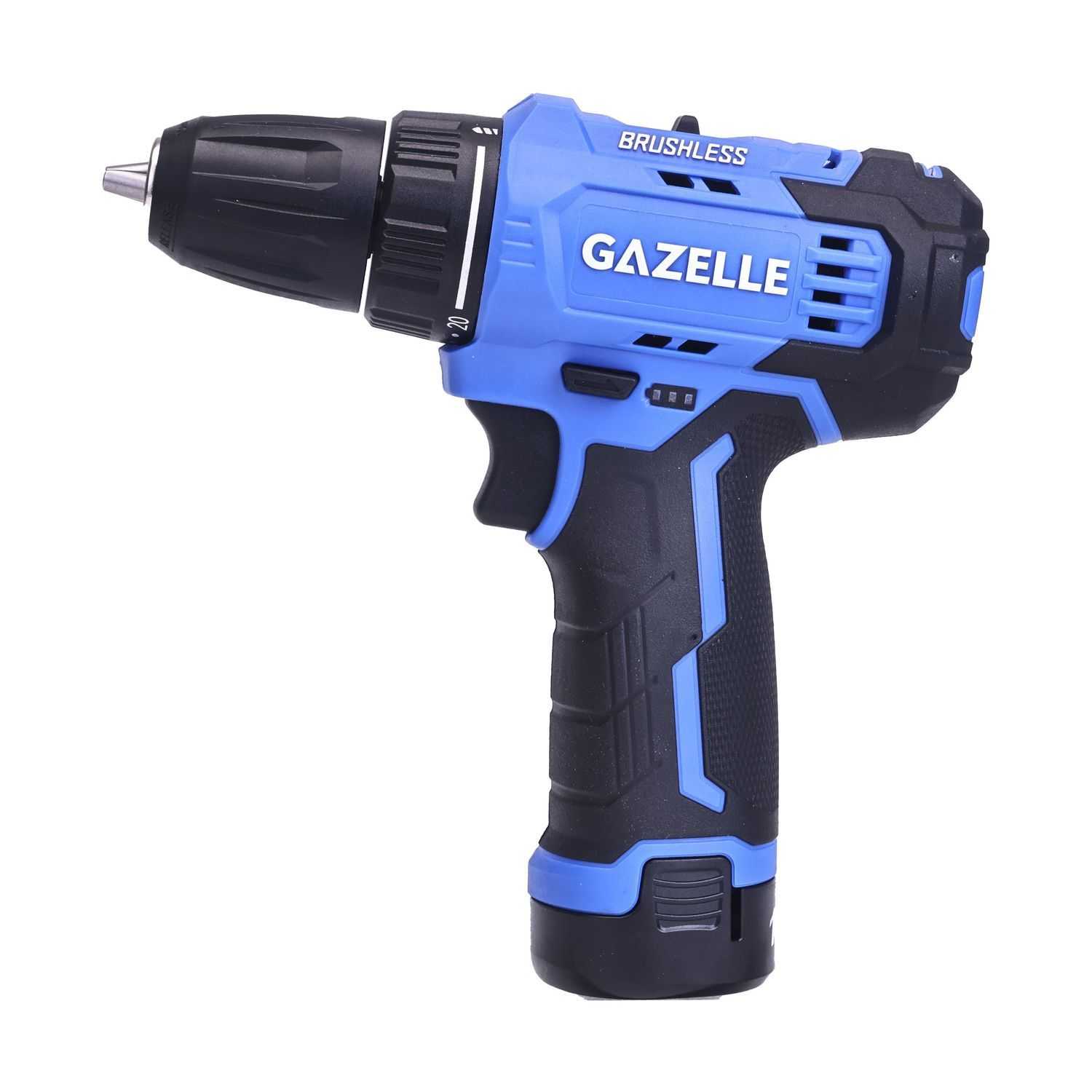

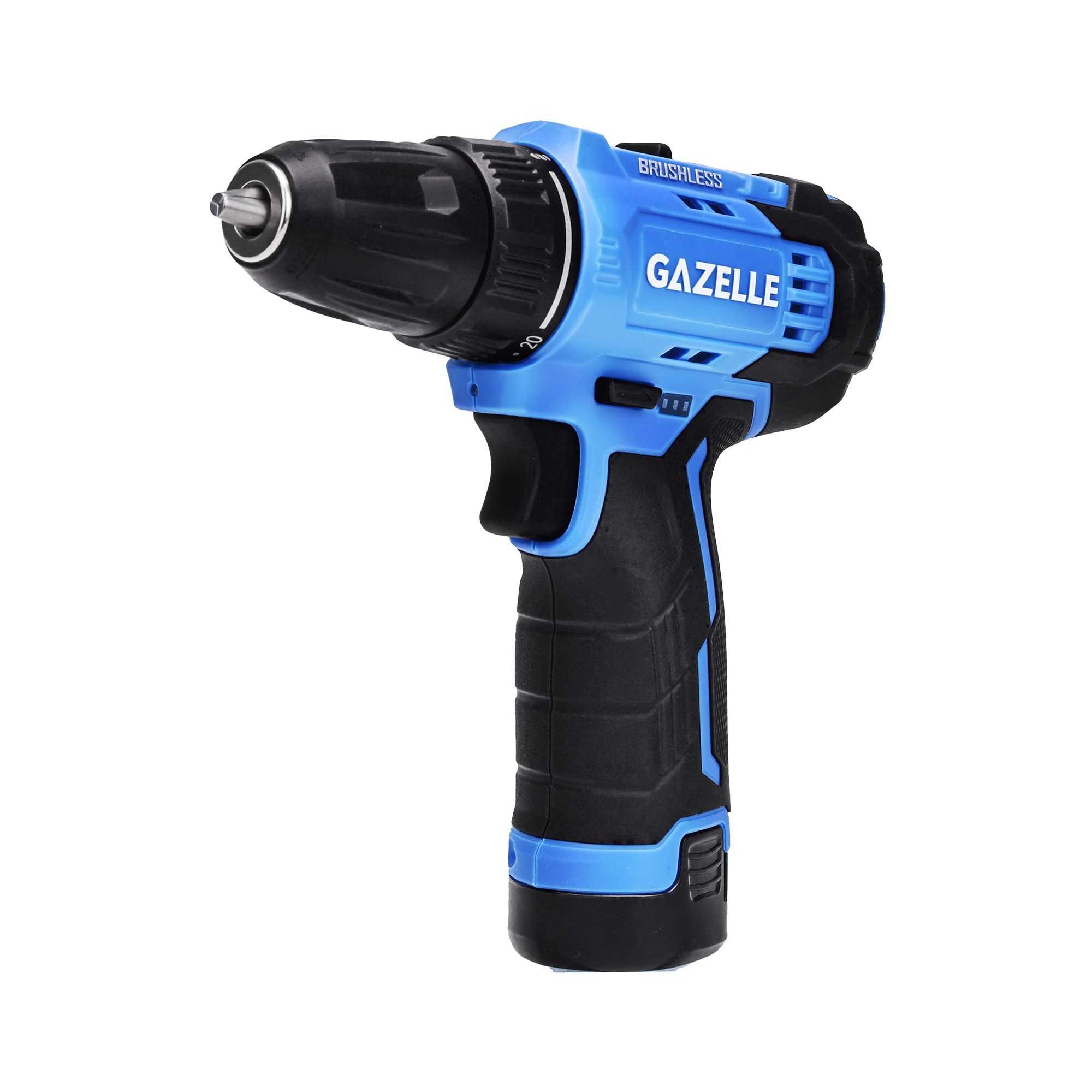

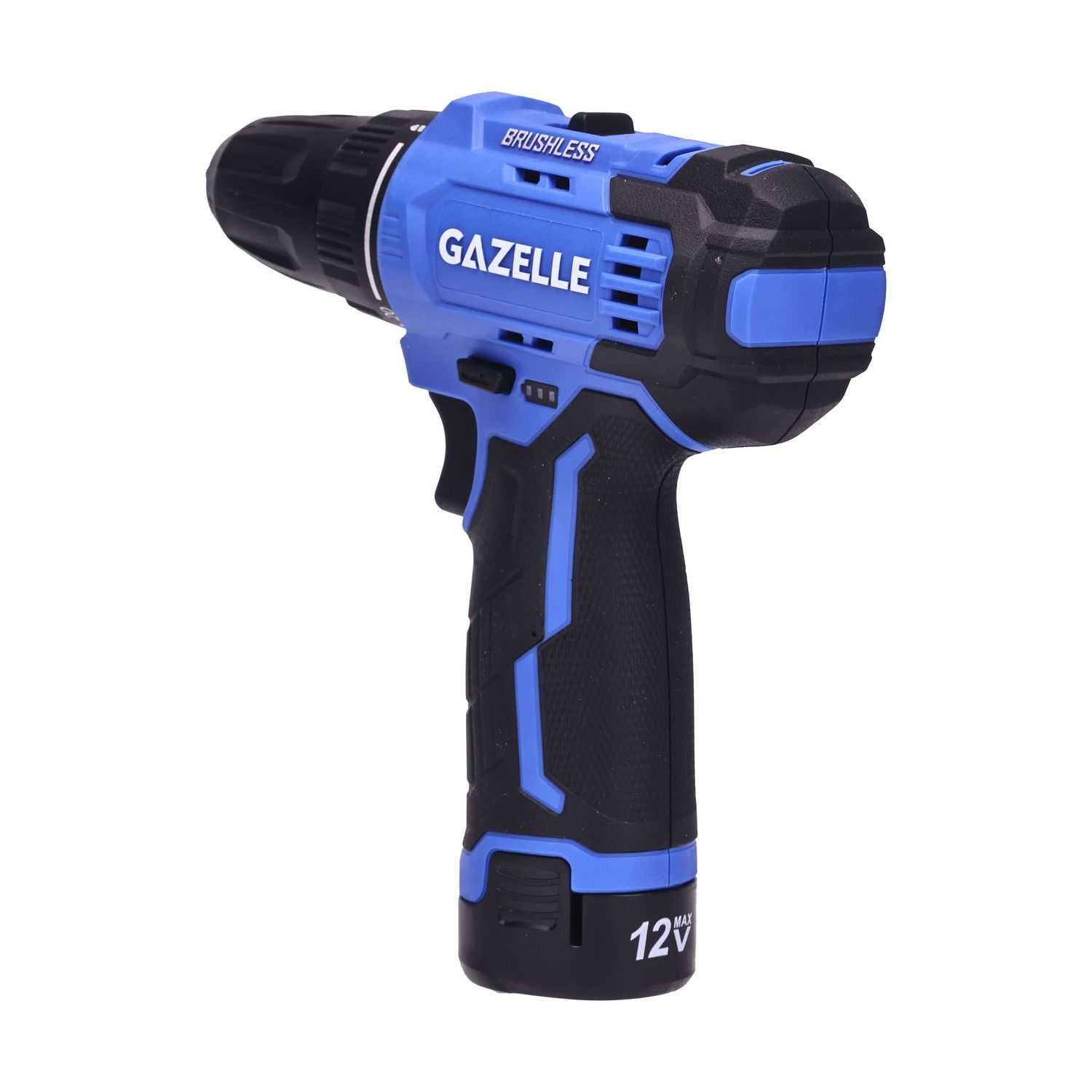

GC1220 12V Max Brushless Drill Driver 10mm







GC1220 12V Max Brushless Drill Driver 10mm
Features
- Battery: 12V/2.0Ah×2
- Max. Chucking Capacity: 10mm
- Max. Screw Dia.: 7mm
- No Load Speed: 0 - 460 RPM (1st gear), 0 - 1600 RPM (2nd gear)
- Max. Drilling Dia.: Steel Φ10mm
- Warranty: 1 year manufacturer's warranty
Scope of Delivery
- Battery Charger
- 2.0Ah Battery Pack (2pcs)
- Driver Bit
- Plastic Case Packing
FEATURES & APPLICATION

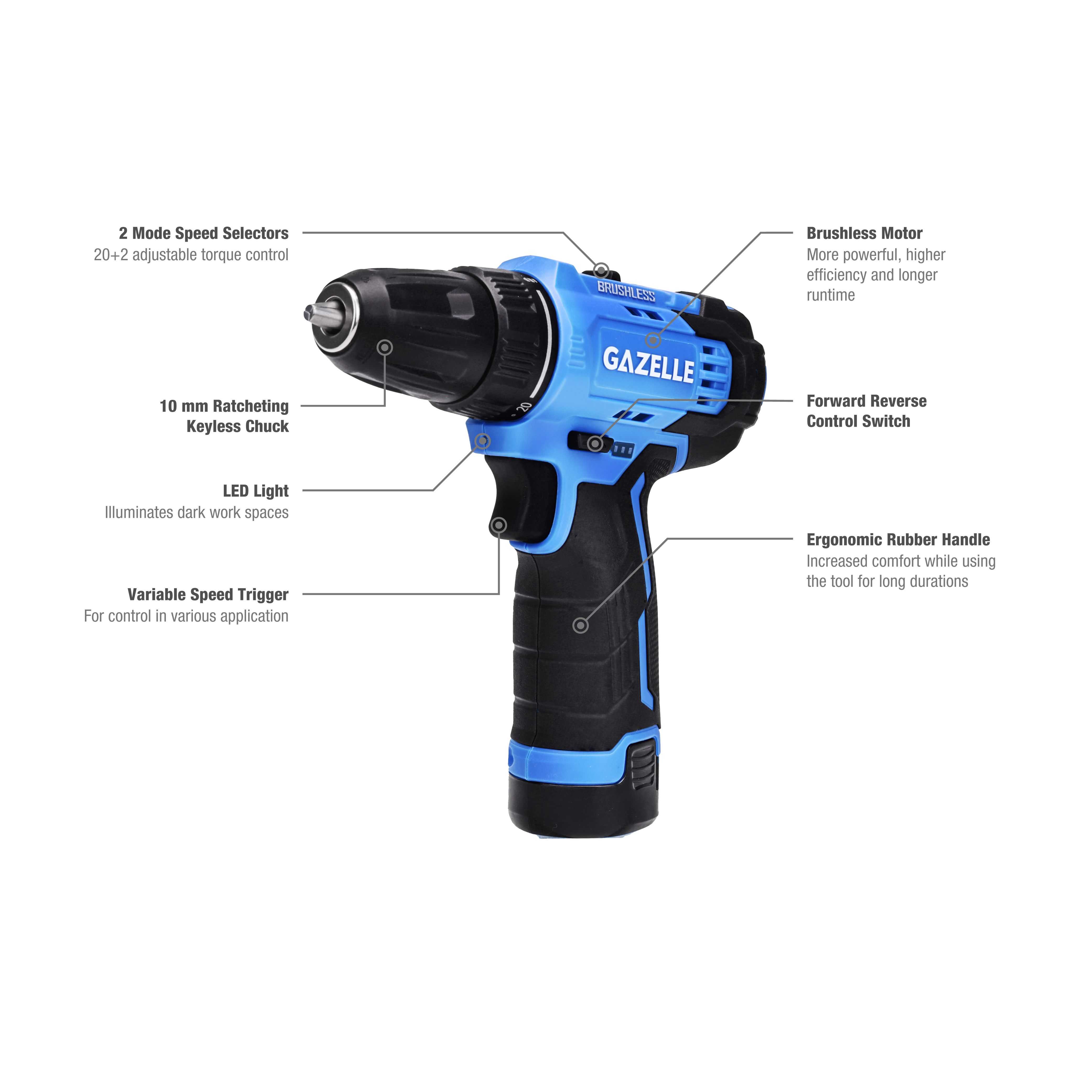

Features
- Brushless Motor: Efficient for longer runtime, more power, and extended tool life.
- Compact & Lightweight: Weighs only 0.93 kg (2 lbs) and 7" length for easy handling and reduced fatigue.
- Torque: Delivers 35Nm for tough drilling in wood, metal, and plastic.
- 2-Speed Gearbox: Variable speed trigger with 0–460 RPM (low) and 0–1600 RPM (high) for precision and speed.
- Adjustable Torque: 20+2 settings for versatile screw driving and drilling.
- LED Light: Built-in light for better visibility in dark areas.
- Ergonomic Handle: Rubber grip for comfort and control during extended use.
- 1/2" Ratcheting Chuck: Secure bit holding for reliable operation.
- Forward/Reverse Switch: Quick toggle for easy direction changes.
Applications
- Woodworking: Drilling wood for shelves, furniture assembly, etc.
- Automotive & Metalworking: Drilling metal for fixtures and automotive work
- Plumbing & Household: Drilling plastic pipes and other household materials
- General Repair & Assembly: Driving screws into wood, metal, and plastic for repairs and assembly
TECHNICAL SPECIFICATIONS
- Power SourceCordless
- Voltage12V
- Motor TypeBrushless
- Battery Capacity2.0 Ah
- Max. Torque Gear 135 Nm
- Max. Torque Gear 216 Nm
- No Load Speed0 - 460 RPM / 0 - 1600 RPM
- Chuck Capacity10mm
- Max. Screw Diameter7mm
- Torque settings20 + 2
- Variable SpeedYes
- Reverse FunctionYes
- Max. Drilling Capacity (Wood)20mm
- Max. Drilling Capacity (Steel)10mm
- Weight0.93 kg
SERVICES

- Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
- Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
- Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.
PERFORMANCE YOU TRUST
- Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
- Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
- Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
- Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
- Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.
PACKAGING INFO
- Width9.4 cm
- Length31 cm
- Height25.8 cm
- Weight0.93 Kg
