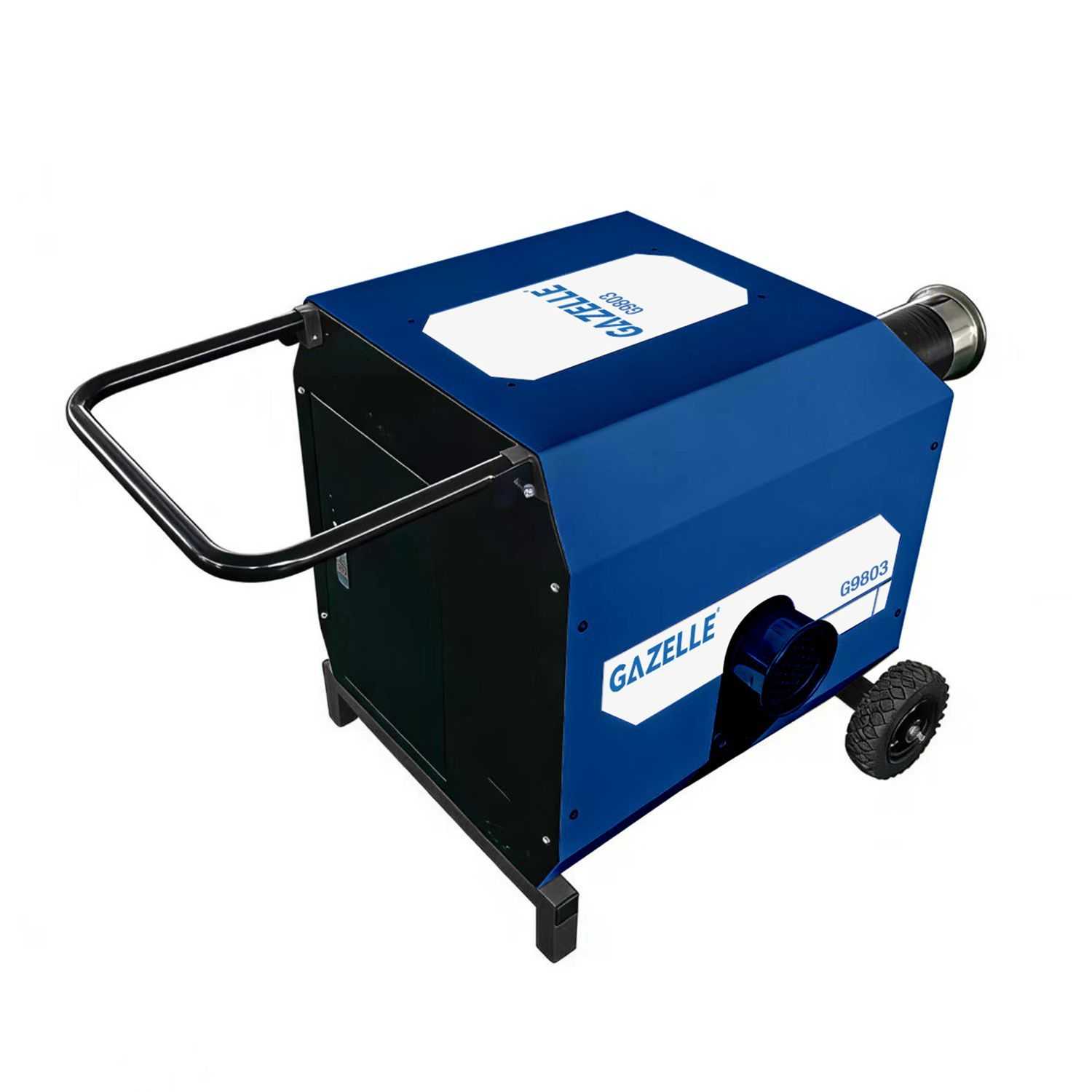

G9803 Duct Air Leakage Tester with Built-in Printer
G9803 Duct Air Leakage Tester with Built-in Printer
Features
- Air Flow Range (Matrix) 36~640 m³/h
- Air Flow Range (Nozzle)4~36 m³/h
- Air Flow AccuracyThe reading is ±2.5% ±0.1 m³/h
- Air Flow Resolution0.01m³/h
- Static Pressure Range±2500 Pa
Scope of Delivery
- 1 x Duct Air Leakage Tester
- 1 x Flow Grid
- 1 x Low Flow Nozzle
- 6 x Silicone Tube (white)
- 1 x Duct Connection Hose
- 1 x Power Cord
- 1 x Container
- 6 x Silicon Tube (blue)
- 6 x Silicon Tube (red)
- 1 x Calibration Certificate
- 1 x Instruction Manual
FEATURES & APPLICATION
Features
- Flexible Testing Modes: Supports duct air leakage testing under both positive and negative pressure conditions for comprehensive evaluation
- International Standards Compliance: Fully compliant with major global standards including EN1507:2006, EN12237:2003, Eurovent 2/2, DW/143, SMACNA, AABC, and GB50243 (2003/2016)
- High-Precision Measurement: Wide airflow testing range combined with dual measurement tools ensures accurate and reliable results
- Clear Pass/Fail Assessment: Instantly determines duct sealing performance, helping verify compliance and quality standards
- Real-Time Monitoring: Displays leakage rate, test pressure, temperature, and atmospheric conditions in real time for complete test visibility
- Large Data Storage Capacity: Stores up to 1,000 test records with options to review and delete data as needed
- User-Friendly Touch Interface: Equipped with a 5-inch LCD touchscreen for intuitive and easy operation
- Compact & Easy Installation: Designed with a simple structure for quick setup and convenient on-site use
- 1 Year manufacturer's warranty
TECHNICAL SPECIFICATIONS
- Air Flow Range (Matrix) 36~640 m³/h
- Air Flow Range (Nozzle)4~36 m³/h
- Air Flow AccuracyThe reading is ±2.5% ±0.1 m³/h
- Air Flow Resolution0.01m³/h
- Static Pressure Range±2500 Pa
- Static Pressure AccuracyReadings are 1% ±1 Pa
- Static Pressure Resolution0.1 Pa
- Temperature Range0 ～ 60 ℃
- Temperature Accuracy±0.5 ℃
- Temperature Resolution0.1 ℃
- Atmospheric Pressure Range70～130k Pa
- Atmospheric Pressure AccuracyReadings are ±2%
- Atmospheric Pressure Resolution0.1k Pa
- Power Supply (G9803-0E)100-120V, 1 Phase, 50/60Hz, 16A
- Power Supply (G9803-1E)200-240V, 1 Phase, 50/60Hz, 10A
- Weight: Net weight approximately72 Kg
- Size98*63*63 cm
- Data LoggingUp to 1000 measurements
SERVICES
Gazelle Tool Service- Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
- Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
- Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.
PERFORMANCE YOU TRUST
Trusted by Professionals- Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
- Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
- Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
- Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
- Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.
DOWNLOADS
PACKAGING INFO
- Width63 cm
- Length98 cm
- Height63 cm
- Weight72 Kg
