Home/Testing Equipment/Hvac Testing Equipment/G9802 Duct Air Leakage Tester with Touchscreen Control

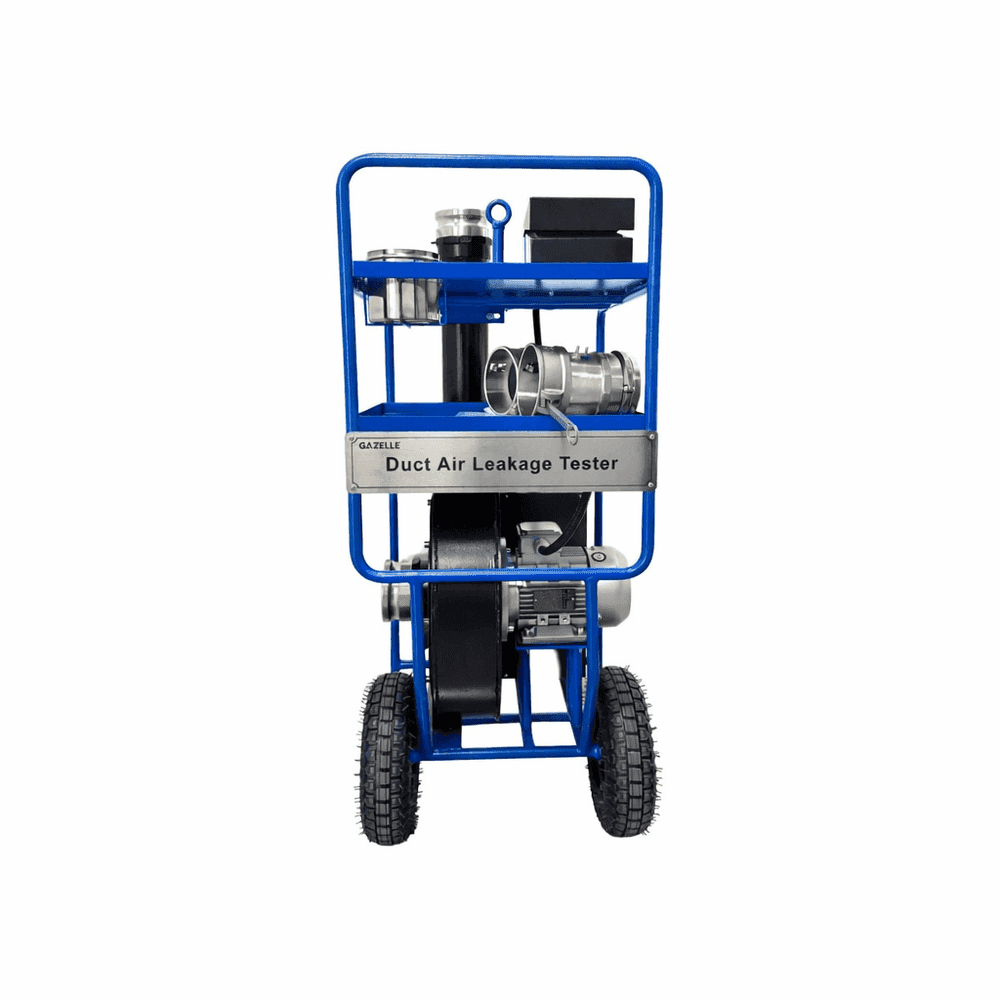

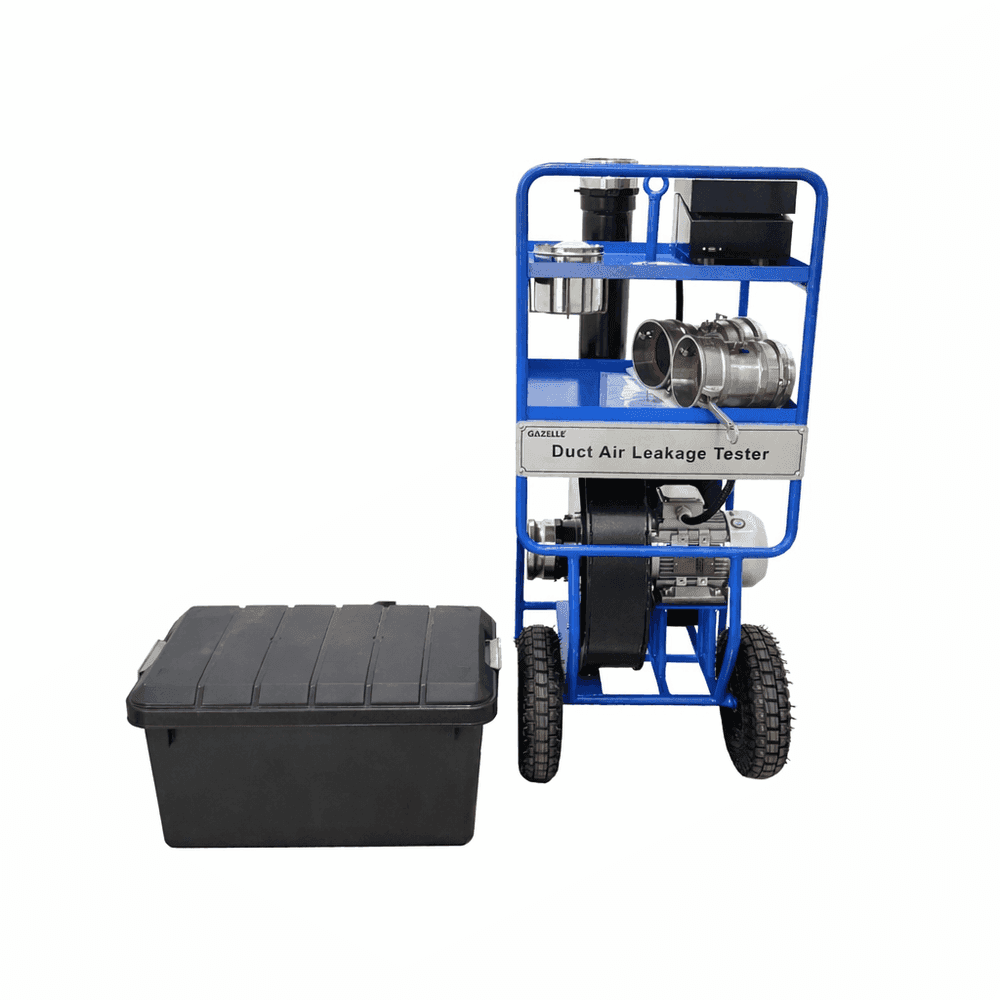

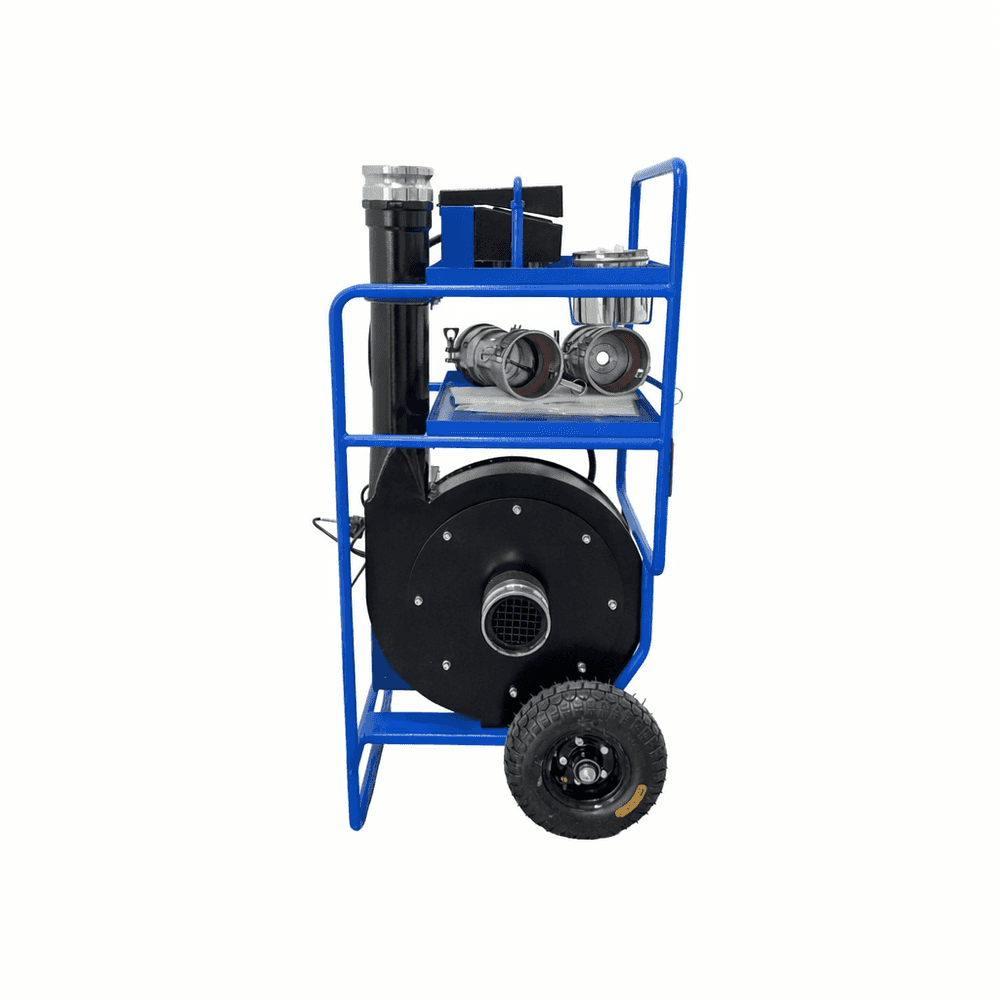

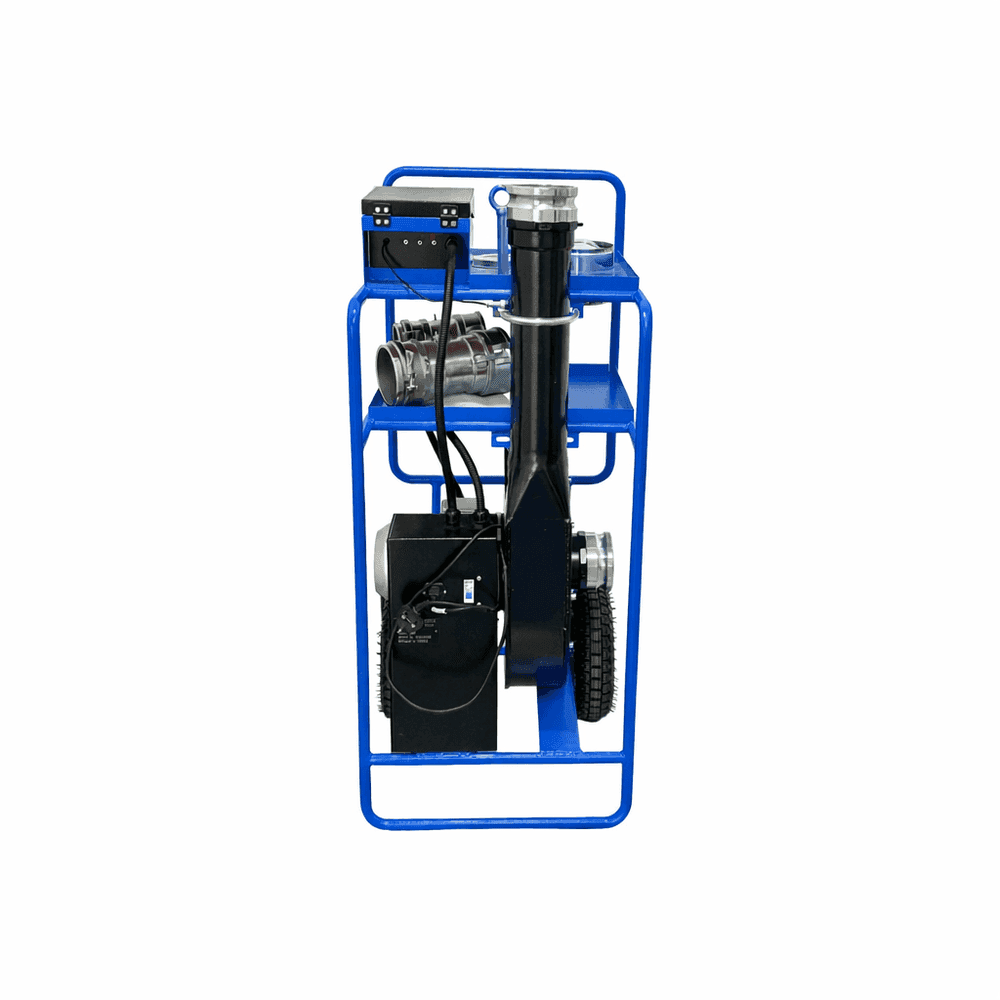

G9802 Duct Air Leakage Tester with Touchscreen Control
G9802 Duct Air Leakage Tester with Touchscreen Control
Features
- Air Flow Large Nozzle Range41 ~ 483 CFM
- Air Flow Small Nozzle Range2.4 ~ 41 CFM
- Air Flow Accuracy± (2.5% of reading +0.06 CFM)
- Air Flow Resolution0.01 CFM
- Static Pressure Range± 10 in. wg
Scope of Delivery
- Duct Air Leakage Tester
- Low flow nozzle
- ⌀6 Silicone tube (Blue) 4m

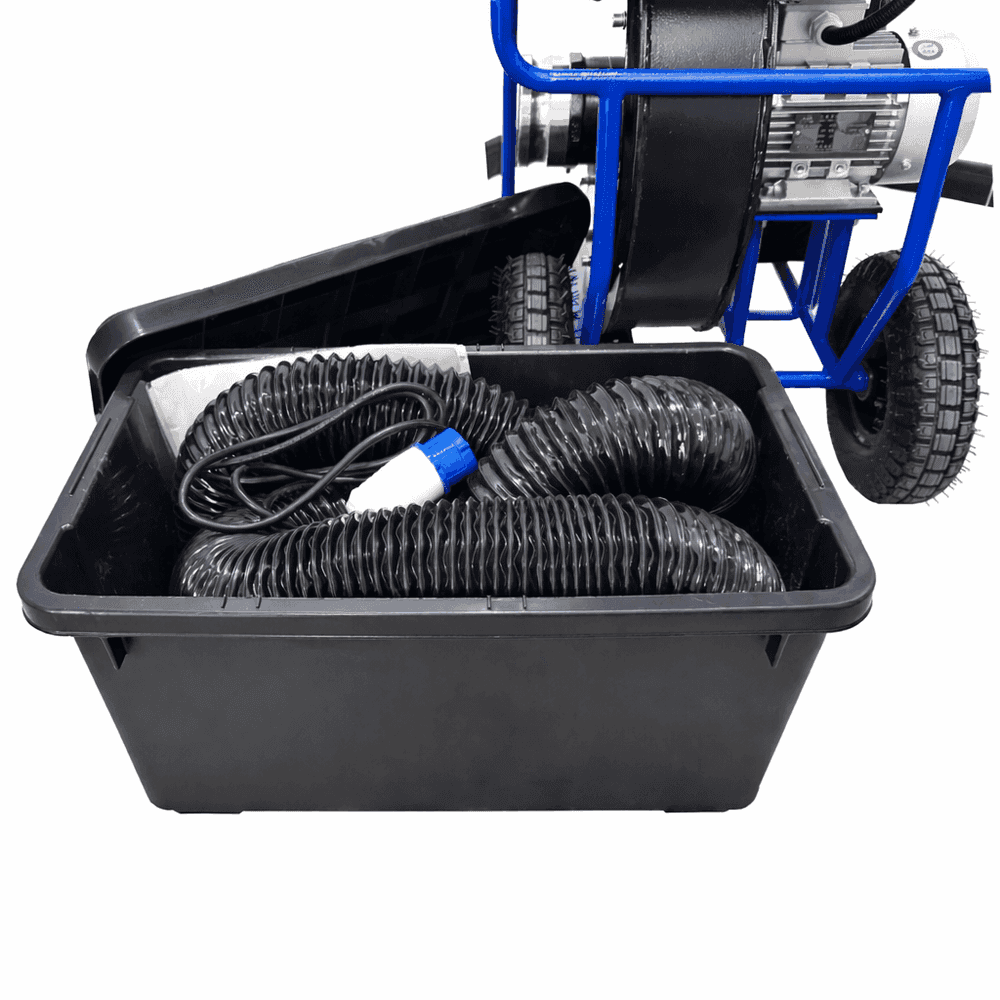

- Duct connection hose
- Storage box
- Power cord
- Calibration Certification
- Operation manual
FEATURES & APPLICATION
Features
- Airflow & Pressure Accuracy: High-precision measurement for HVAC duct systems
- Real-Time Display: Instant graphical and numerical data visualization
- Portable Design: Wheel-mounted unit for convenient on-site mobility
- Standards Compliance: SMACNA, BS EN 12237:2003 (EU), BS EN 1507:2006 (EU), DW/143 (EU), Eurovent 2/2 (EU), and GB50243
- Data Logging: Integrated storage for up to 1000 test records
- Touchscreen Interface: User-friendly control for simplified operation
- 1 Year manufacturer's warranty
TECHNICAL SPECIFICATIONS
- Air Flow Large Nozzle Range41 ~ 483 CFM
- Air Flow Small Nozzle Range2.4 ~ 41 CFM
- Air Flow Accuracy± (2.5% of reading +0.06 CFM)
- Air Flow Resolution0.01 CFM
- Static Pressure Range± 10 in. wg
- Static Pressure Accuracy± (1% of reading +0.004 in. wg.)
- Static Pressure Resolution0.001 in. wg
- Temperature Range32ºF ~ 140ºF
- Temperature Accuracy±1ºF
- Temperature Resolution0.1ºF
- Atmospheric Pressure Range20.6 ~ 38.3 in. Hg
- Atmospheric Pressure Accuracy± 2% of reading
- Atmospheric Pressure Resolution0.1 in. Hg
- Power Supply (100-120V, 1 Phase)50 / 60 Hz, 16A
- Power Supply (200-240V, 1 Phase)50 / 60 Hz, 16A
- Weight Net weight approximately 60kg
- Dimensions (WxDxH)18.9 x 24.7 x 44.3 inches
- Data LoggingUp to 1000 measurements
SERVICES
Gazelle Tool Service- Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
- Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
- Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.
PERFORMANCE YOU TRUST
Trusted by Professionals- Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
- Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
- Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
- Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
- Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.
DOWNLOADS
PACKAGING INFO
- Width63 cm
- Length48 cm
- Height113 cm
- Weight60 Kg
