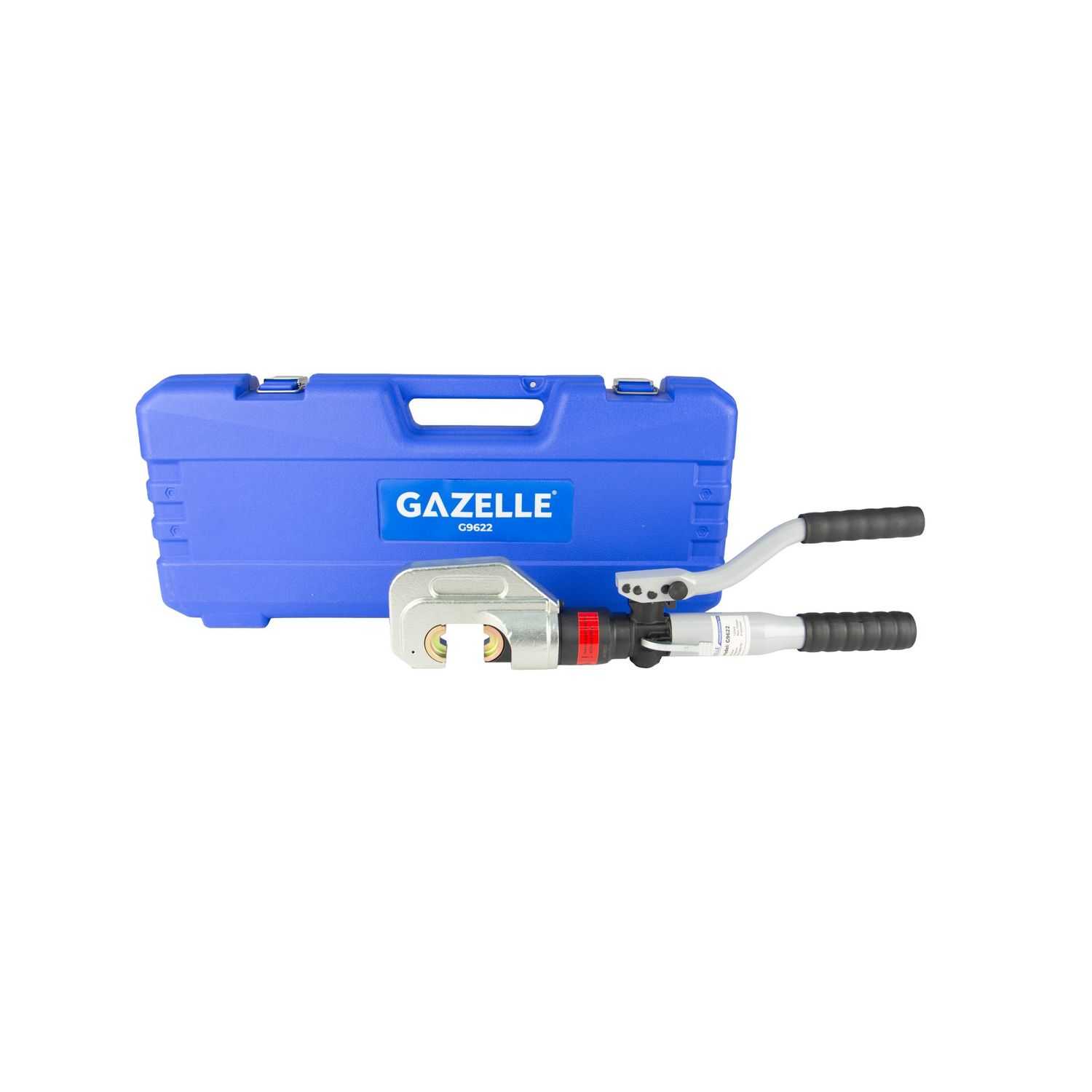

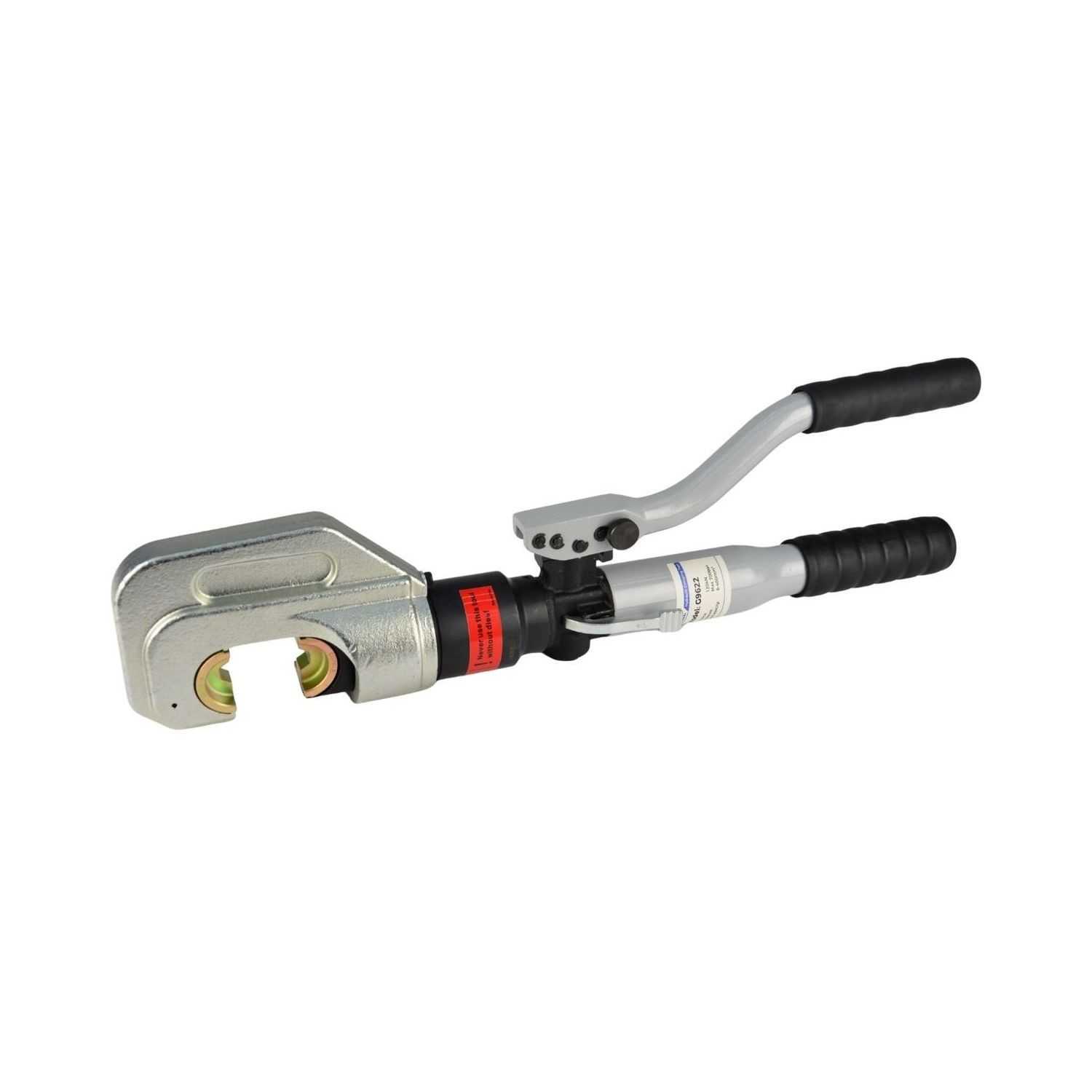

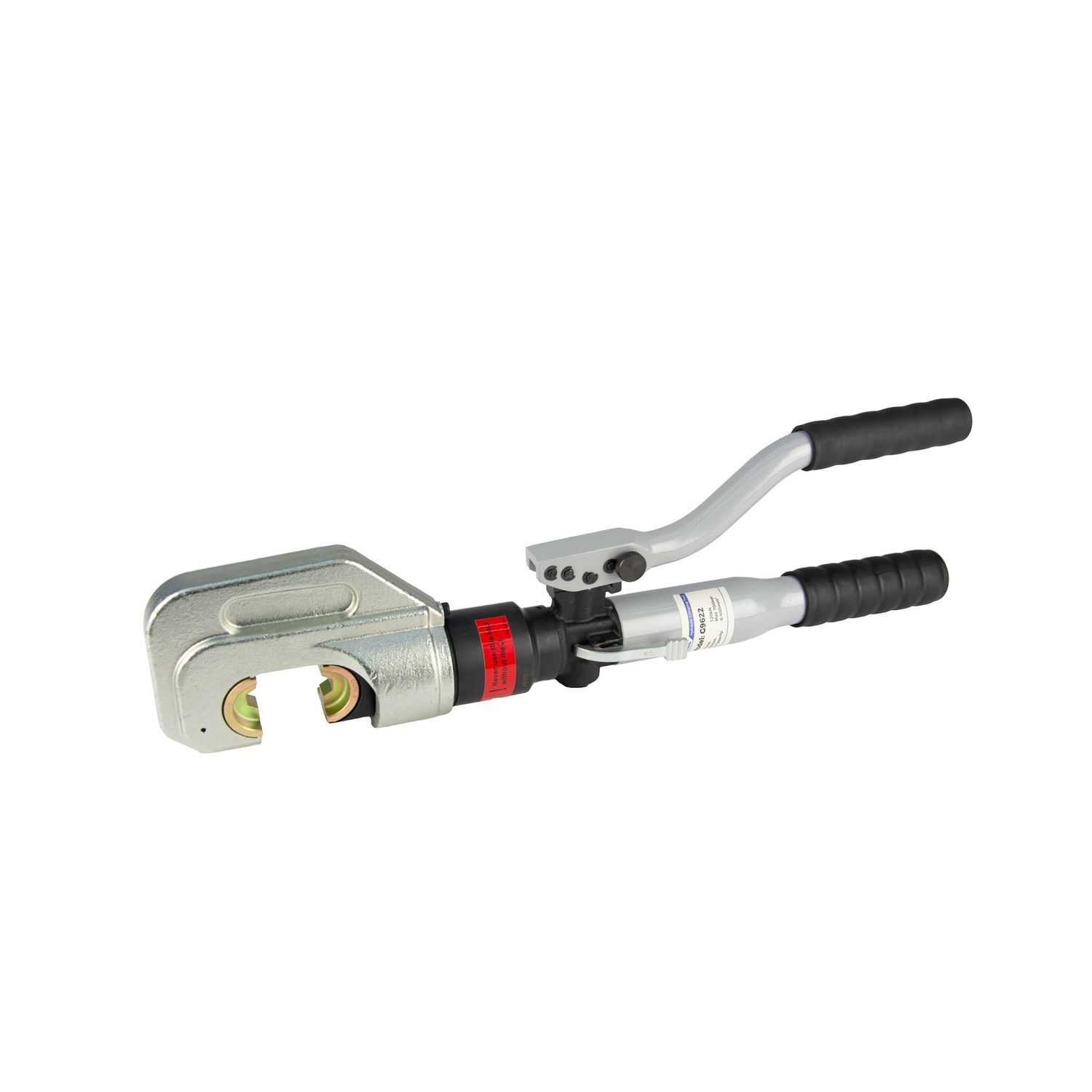

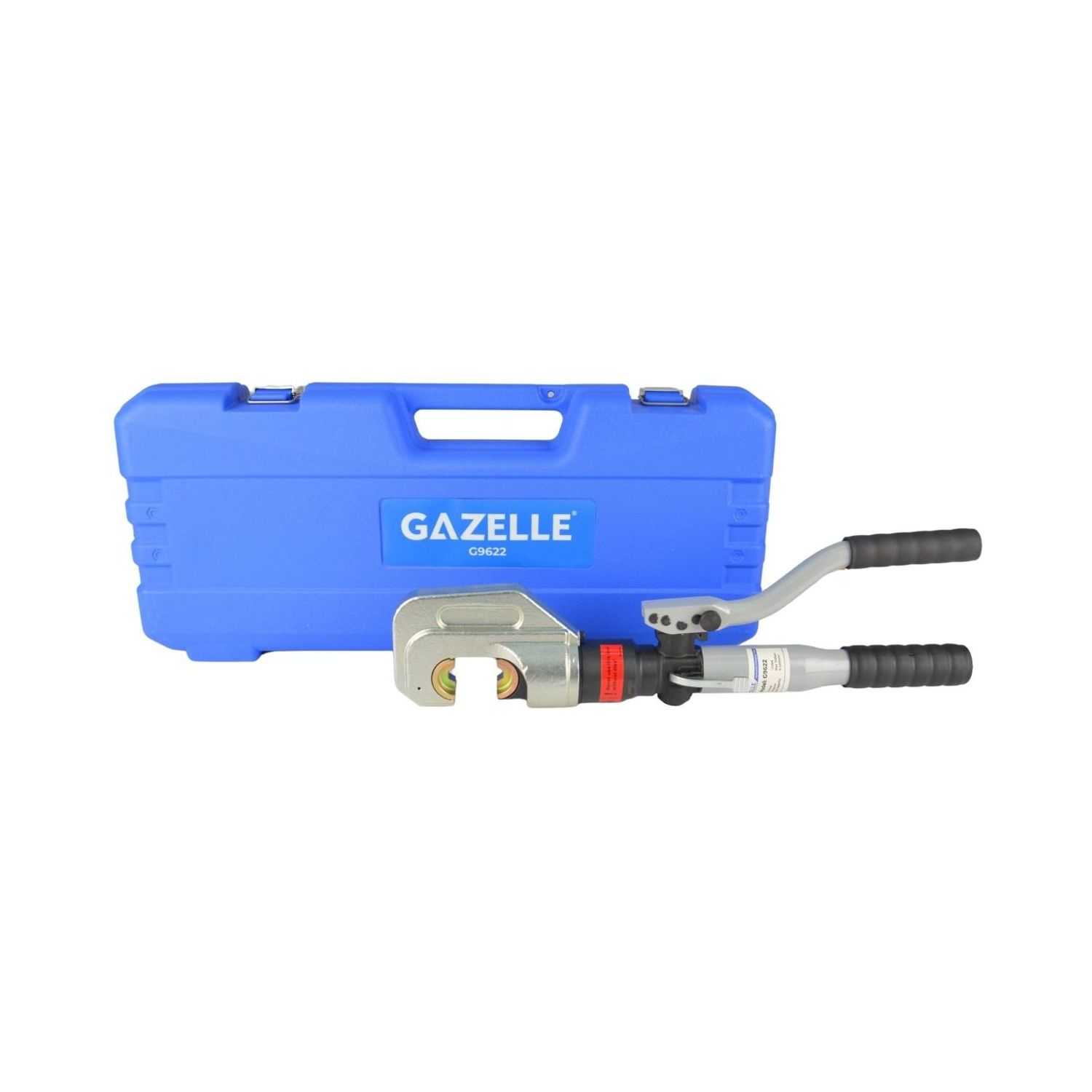

G9622 Hand Hydraulic Crimping Tool, 6-400mm² with Dies

Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies
Hand Hydraulic Crimping Tool, 6-400mm² with Dies

G9622 Hand Hydraulic Crimping Tool, 6-400mm² with Dies

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • Crimping Force: 12T
  • Stroke: 70 mm
  • Rated Pressure: 700 bar
  • Crimping Capacity: 400 mm²
  • Standard Dies: Cu 6-400 mm²
  • Warranty: 1 year manufacturer's warranty

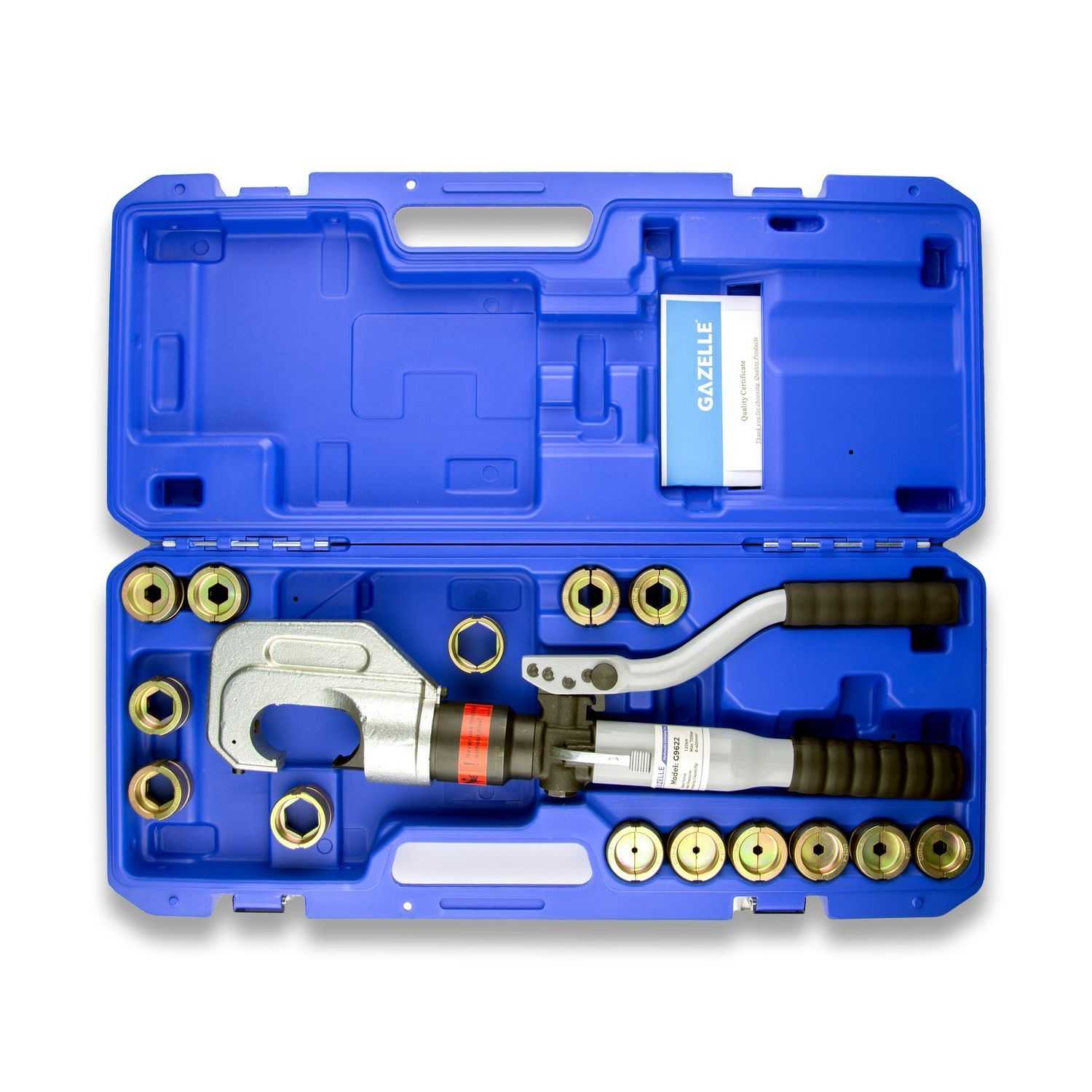

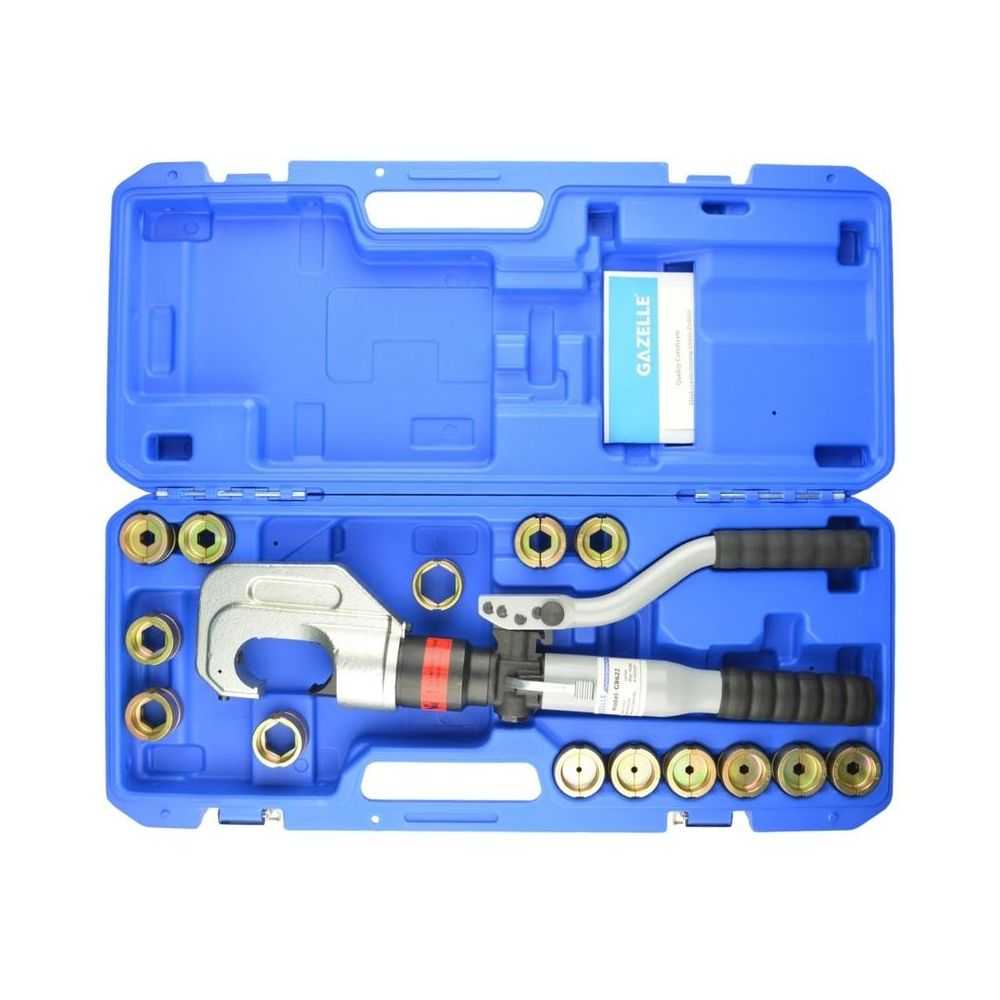

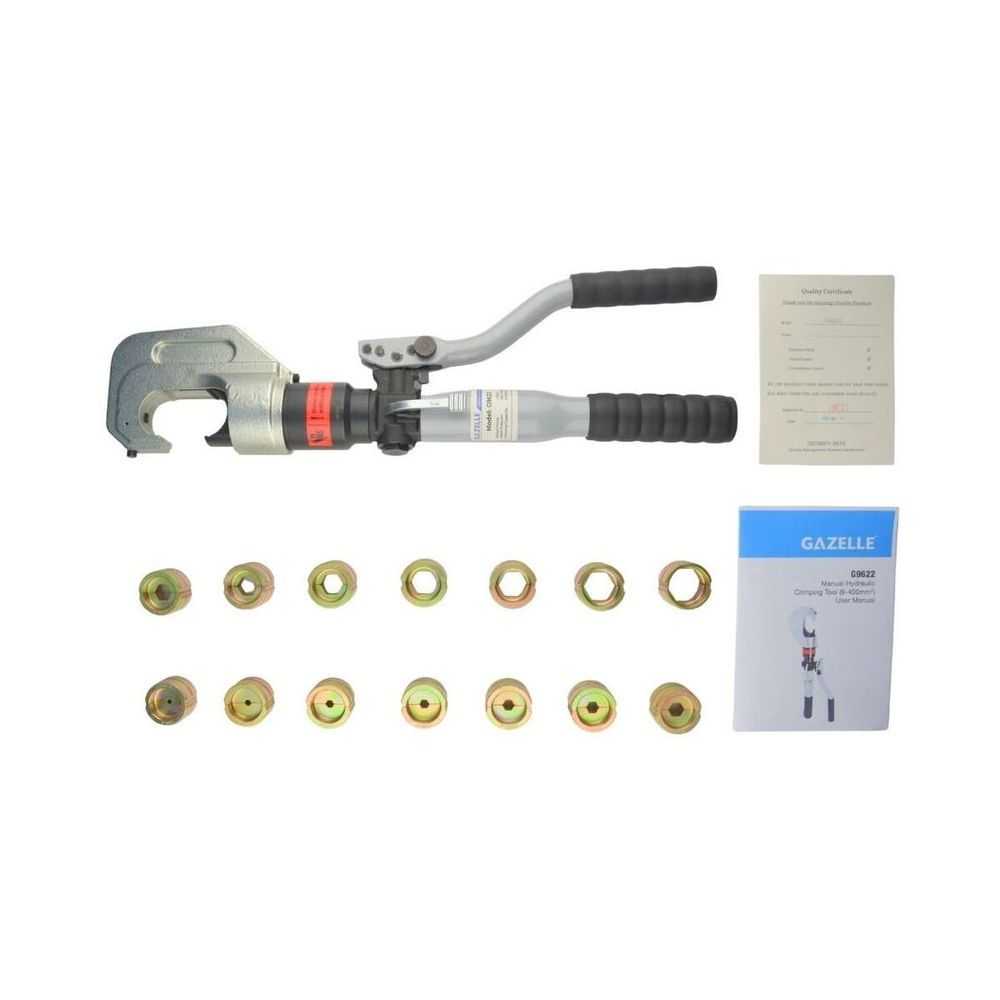

Scope of Delivery

  • Hydraulic Crimping tool
  • Crimping dies 6-400 mm² (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400)
  • Carry case
  • User manual

FEATURES & APPLICATION

Features

  • 360° Rotating Crimping Head: Provides flexibility for crimping in confined or hard-to-reach areas.
  • High Crimping Force: Delivers 12 tons of power for heavy-duty applications.
  • Two-Stage Hydraulic System: Ensures efficient operation with automatic pressure release for safety.
  • C-Head Design with 42mm Opening: Allows easy access to fittings and simplifies the crimping process.
  • Wide Crimping Capacity: Supports cables up to 400 mm², accommodating diverse industrial needs.
  • Comprehensive Die Set: Includes standard dies for Cu 6-400 mm², offering versatility for various tasks.
  • Durable and Portable: Weighs 6.1 kg and comes with a robust PP plastic case for secure storage and transport.
  • Precision Engineering: Rated pressure of 700 bar and a stroke of 70 mm for consistent and reliable performance.

Applications

  • Electrical Power Distribution: Ideal for crimping cables in substations and power grids.
  • Telecommunications: Suitable for securing connections in large-scale telecom networks.
  • Industrial Manufacturing: Perfect for heavy-duty wiring in machinery and equipment.
  • Construction: Used in electrical installations for commercial and industrial buildings.
  • Energy Sector: Applicable for renewable energy projects like solar farms and wind turbines.
  • Railway Systems: Ensures secure connections in railway signaling and power systems.
  • Shipbuilding: Reliable for marine electrical systems and heavy-duty cable installations.
  • Utility Maintenance: Essential for on-site repairs and installations in utility services.

TECHNICAL SPECIFICATIONS

  • Crimping Force12T
  • Stroke70 mm
  • Rated Pressure700 bar
  • Crimping Capacity400 mm²
  • Net Weight6.1 kg
  • Standard DiesCu 6-400 mm²
  • Dimensions50 x 17 x 7 cm
  • PP Plastic Case67 x 30 x 12 cm
