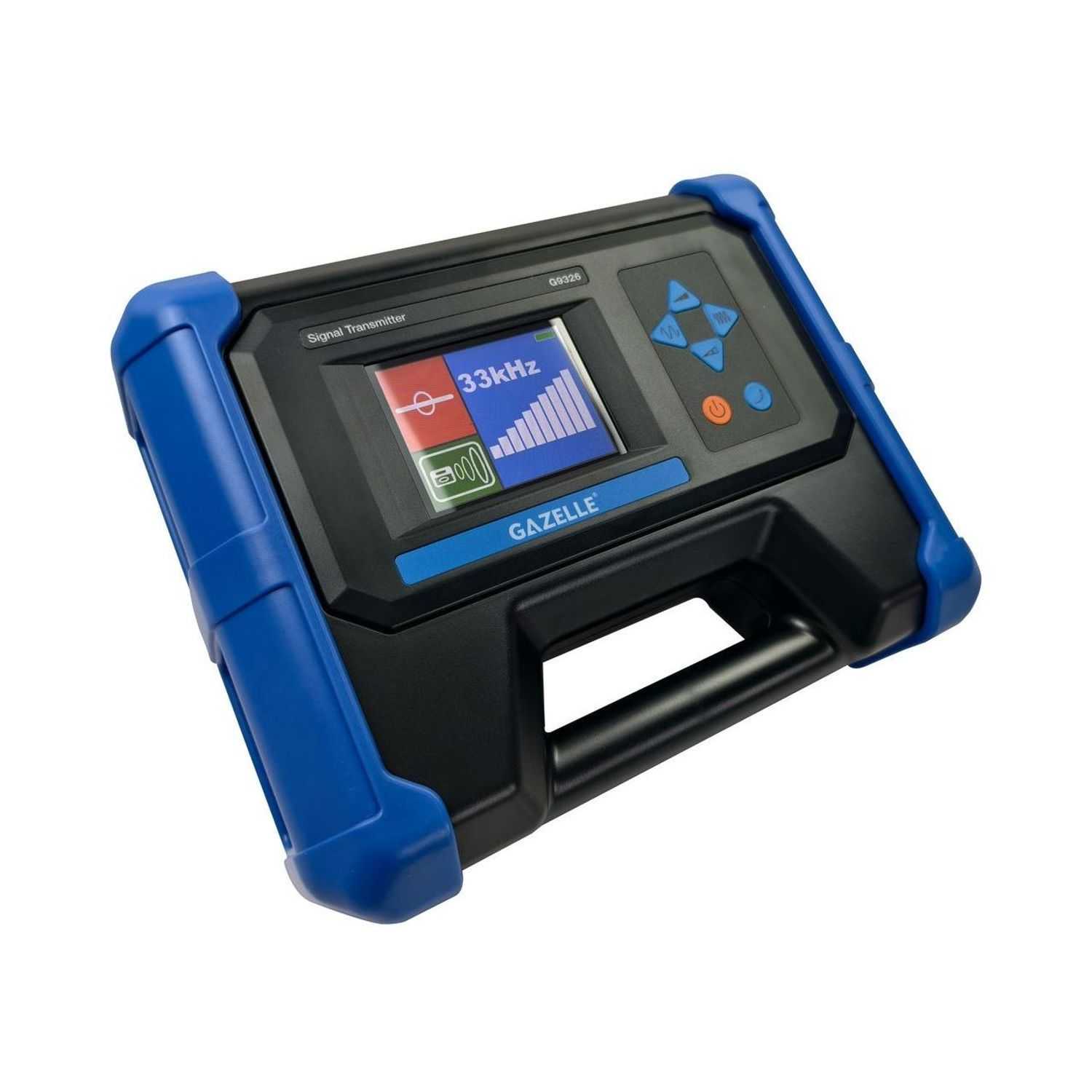

G9326 Line Transmitter (with Rechargeable Battery)

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • Output Modes: Direct connection, clamp coupling, radiation, booster mode
  • Output Frequency Range: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
  • Output Power Capacity: 15W (maximum), 10 adjustable levels
  • Charger Input: AC 100-240V, 50/60Hz
  • Charger Output: DC 8.4V, 2A
  • Warranty: 1 year manufacturer's warranty

Scope of Delivery

  • Transmitter
  • G9333 Charger
  • G9332 Direct Connection Cable
  • G9334 Ground Rod x2

FEATURES & APPLICATION

Features

  • Versatile Output Modes: Supports direct connection, clamp coupling, radiation, and booster modes for a wide range of applications.
  • Adjustable Power Output: Delivers up to 15W of power with 10 adjustable levels, allowing for precise control based on operational needs.
  • Wide Frequency Range: Configurable output frequencies from 640Hz to 197kHz, ensuring compatibility with various detection systems.
  • Automatic Protection: Features fully automatic overvoltage and overcurrent protection, along with automatic impedance matching for safe and efficient operation.
  • Enhanced Digital Display: Equipped with a 320×240 dot matrix color LCD for clear visibility in all lighting conditions.
  • Long-Lasting Battery: Integrated lithium-ion battery (7.4V, >6Ah) provides extended runtime, ensuring uninterrupted field operations.
  • Compact and Rugged Design: Weighs only 2.3kg with dimensions of 280×220×90mm, and is IP65-rated for durability in harsh environments.
  • Field-Ready Performance: Operates reliably in temperatures from -25°C to 60°C, withstanding humidity levels below 90% and altitudes up to 4500 meters.

Applications

  • Utility Services: Ideal for transmitting signals to locate underground cables and pipelines during maintenance and repair operations.
  • Telecommunications: Facilitates signal transmission for detecting and maintaining buried telecom cables.
  • Energy Sector: Supports the identification and maintenance of underground power lines in renewable and conventional energy projects.
  • Municipal Infrastructure: Essential for mapping and maintaining water, gas, and sewage pipelines in urban and industrial areas.
  • Industrial Facilities: Assists in troubleshooting and maintaining underground utility networks within large industrial complexes.
  • Construction: Used for pre-construction surveys to transmit signals for identifying underground utilities, ensuring safe excavation.

TECHNICAL SPECIFICATIONS

  • Output Modes Direct connection, clamp coupling, radiation, booster mode
  • Output Frequency Range 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
  • Output Power Capacity 15W (maximum), 10 adjustable levels
  • Impedance Matching Fully automatic
  • Overvoltage/Overcurrent Protection Fully automatic
  • Display Interface 320×240 dot matrix color LCD
  • Battery Type and Capacity Lithium-ion, 7.4V nominal, >6Ah
  • Charger Input AC 100-240V, 50/60Hz
  • Charger Output DC 8.4V, 2A
  • Dimensions 280×220×90 mm
  • Weight 2.3 kg
  • IP Rating IP65
  • Operating Conditions Temperature -25°C to 60°C; Humidity <90%; Altitude <4500m
