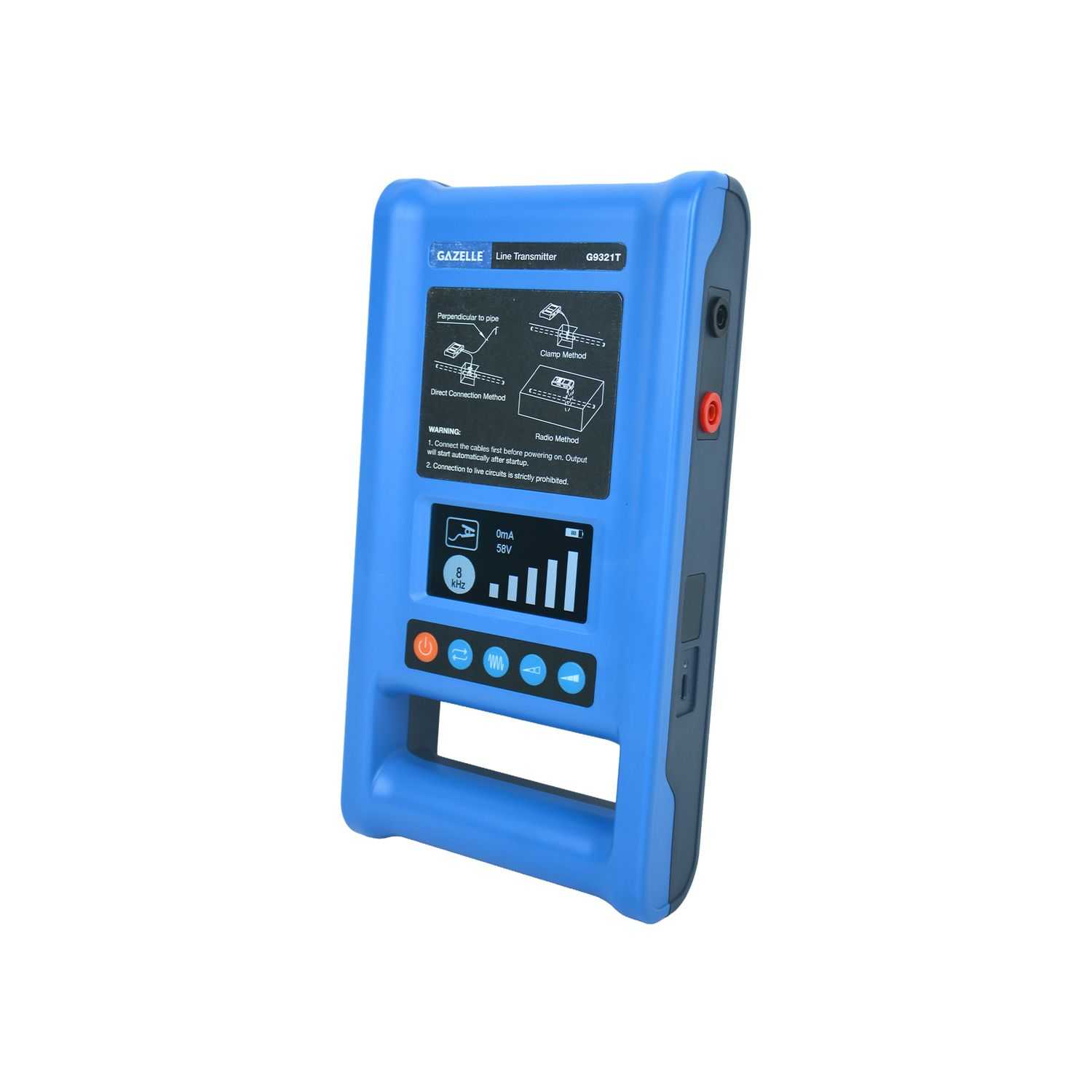

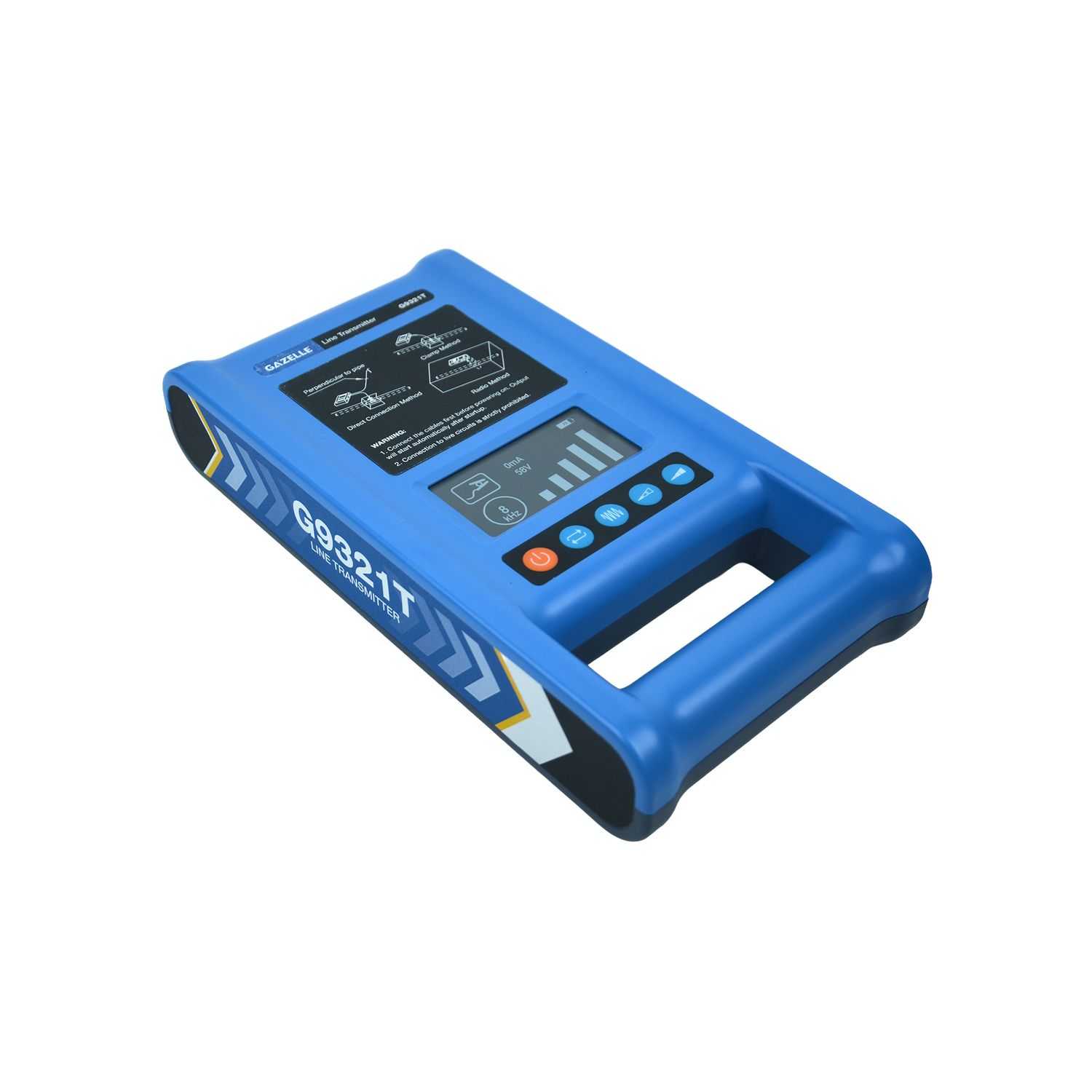

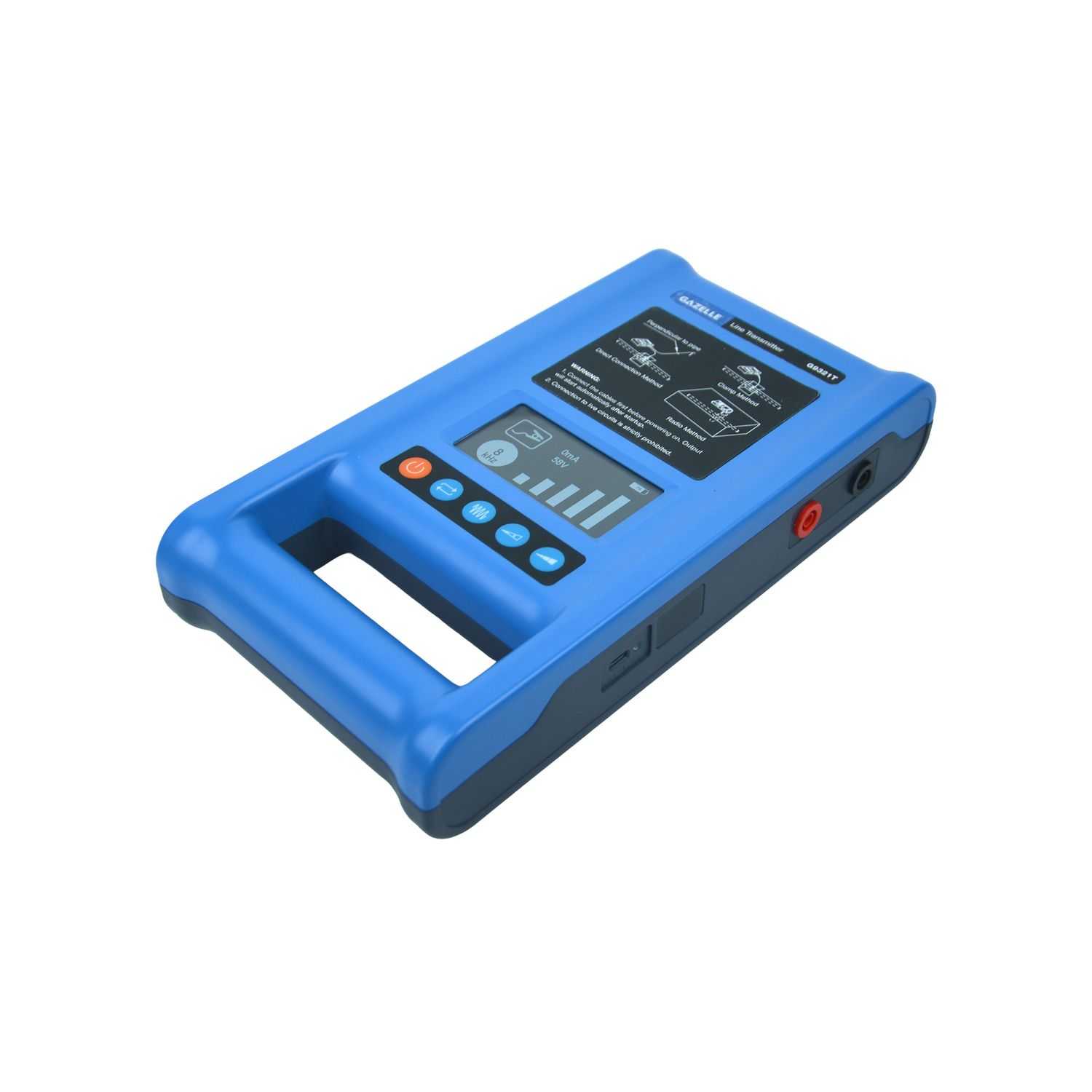

G9321T Line Transmitter, 5 Frequencies (with Rechargeable Battery)
G9321T Line Transmitter, 5 Frequencies (with Rechargeable Battery)
Features
- Output Modes Direct connection, Clamp coupling (Optional), Radio (Optional)
- Output Frequency Range 512Hz, 1024Hz, 8kHz, 33kHz, 82kHz
- Output Power Capacity 6W (maximum)
- Impedance Matching Fully automatic
- Overvoltage/Overcurrent Protection Fully automatic
Scope of Delivery
- G9321T Transmitter
- G9333 Charger
- Direct Connection Cable
- G9334 Ground Rod x2
- G9332 Direct Cable
- Soft Bag
FEATURES & APPLICATION
Features
- Apply a traceable signal to buried cables and pipelines for route tracing, identification and depth measurement with the G9321 receiver
- Choose the best method for each site: direct connection, clamp coupling (optional) or radio induction (optional)
- Select from five frequencies, 512 Hz, 1024 Hz, 8 kHz, 33 kHz and 82 kHz, to suit locating conditions and transmission distance
- Push a strong signal onto underground utilities with up to 6 W output power
- Get optimal output on any pipe or cable with fully automatic impedance matching
- Work more safely with automatic over-voltage and over-current protection
- Rely on stable, consistent transmission from a digital power amplifier with fully digital processing
- 1 Year manufacturer's warranty
TECHNICAL SPECIFICATIONS
- Output Modes Direct connection, Clamp coupling (Optional), Radio (Optional)
- Output Frequency Range 512Hz, 1024Hz, 8kHz, 33kHz, 82kHz
- Output Power Capacity 6W (maximum)
- Impedance Matching Fully automatic
- Overvoltage/Overcurrent Protection Fully automatic
- Display Interface 480 x 240 LCD
- Power Supply Built-in Lithium-ion Battery Pack, Nominal 7.4V, >5Ah
- Maximum Output Voltage 60V
- Maximum Output Current 200mA
- Dimensions 278 x 143 x 52 mm
- Weight 1.15 kg
