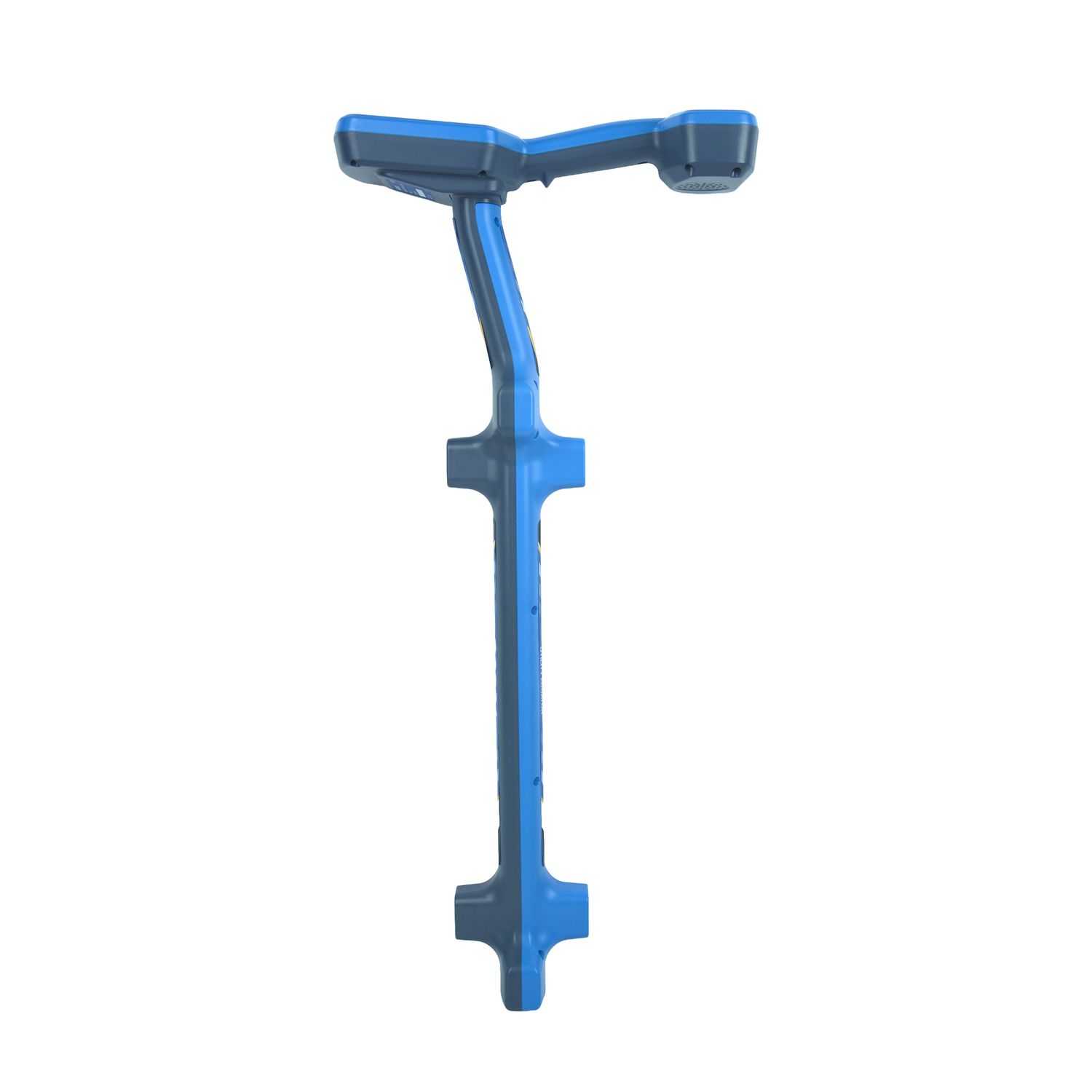

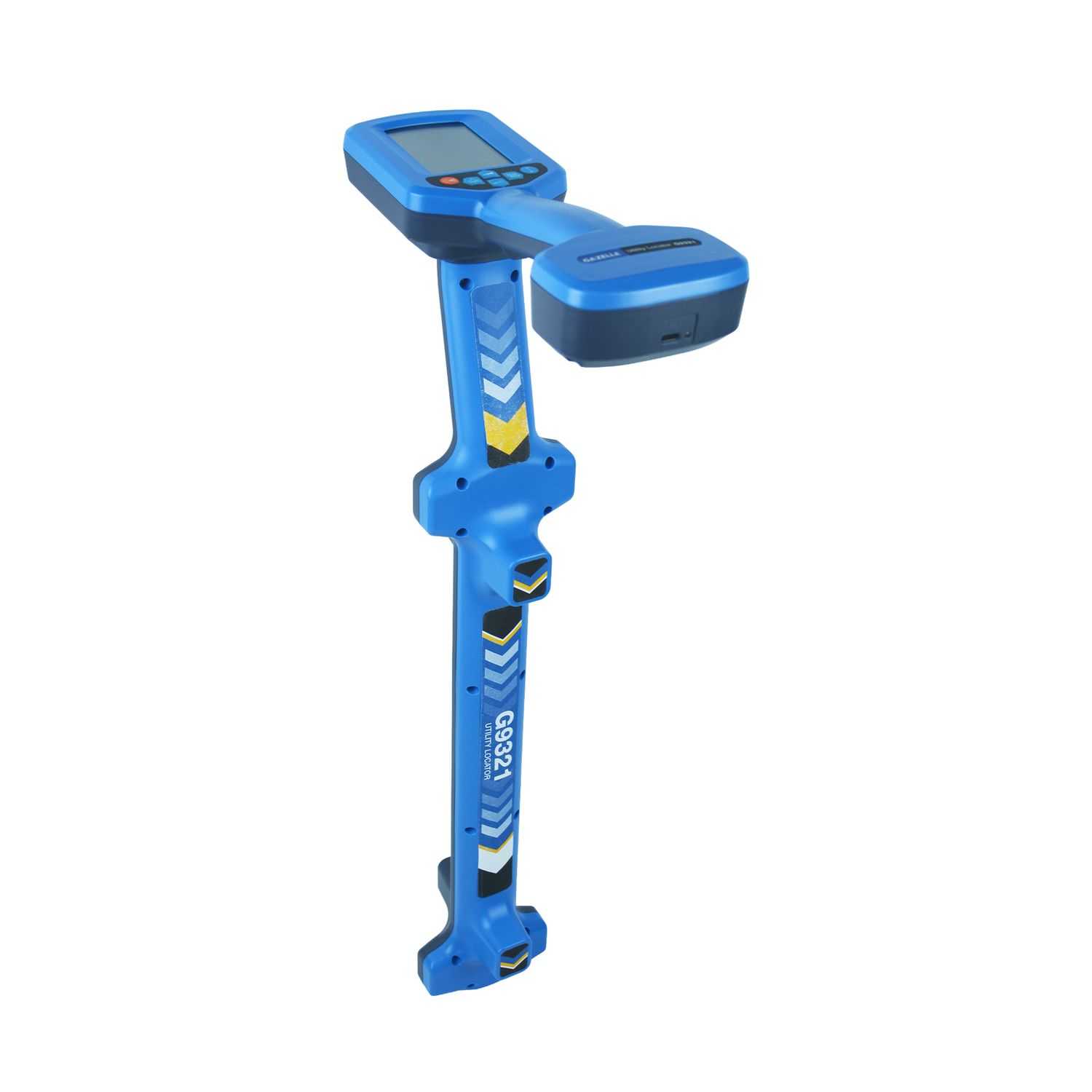

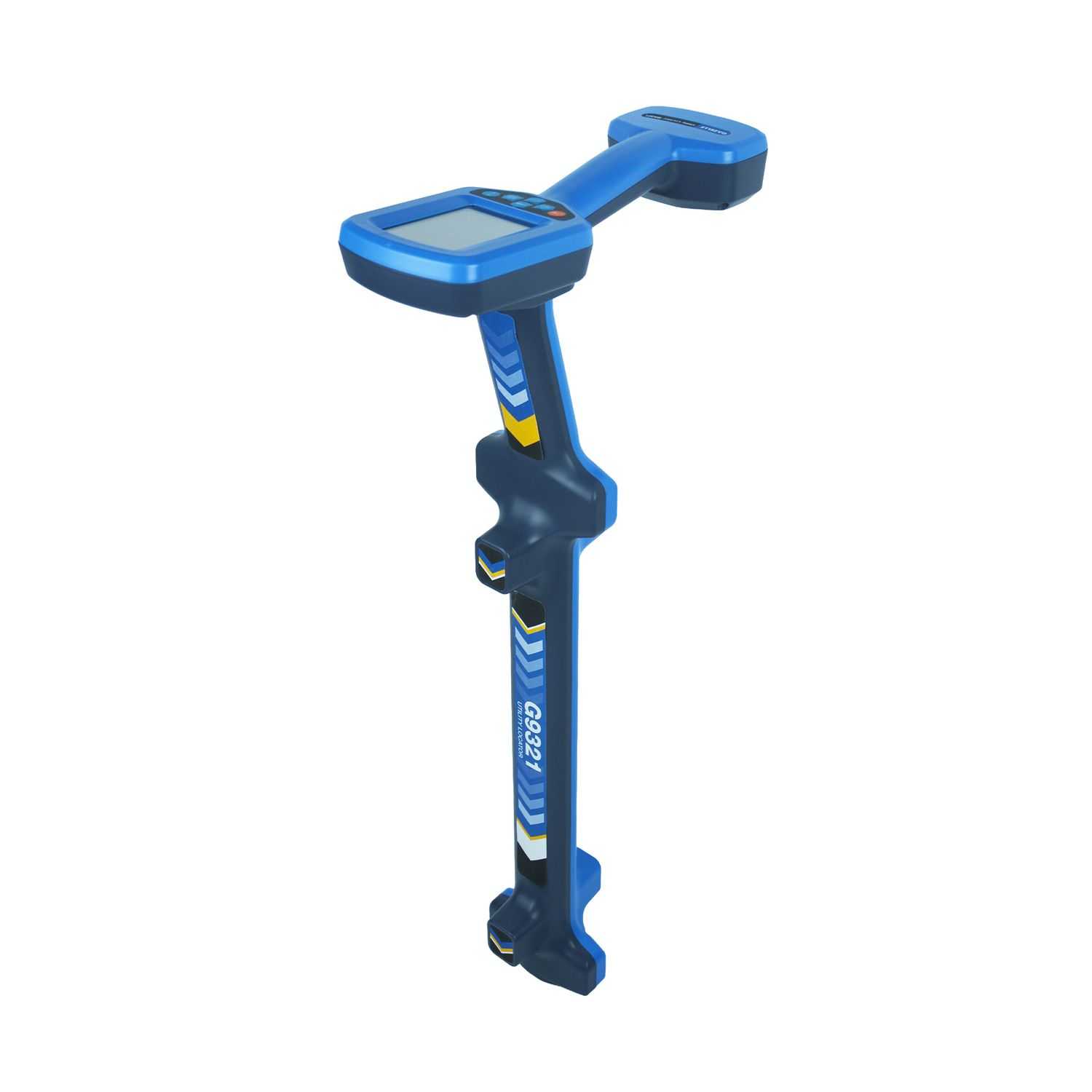

G9321 Underground Utility Locator, Max Depth 10m, 5 Active Frequencies
G9321 Underground Utility Locator, Max Depth 10m, 5 Active Frequencies
Features
- Receiver Modes Built-in coil
- Detection Modes Wide peak, narrow peak, valley mode
- Active Frequencies 512Hz, 1024Hz, 8kHz, 33kHz, 82kHz
- Max Detection Depth 5 m
- Max Detection Depth (Sonde) 10 m
Scope of Delivery
- G9321 Utility Locator
- G9333 Charger
- Soft Carry Case
FEATURES & APPLICATION
Features

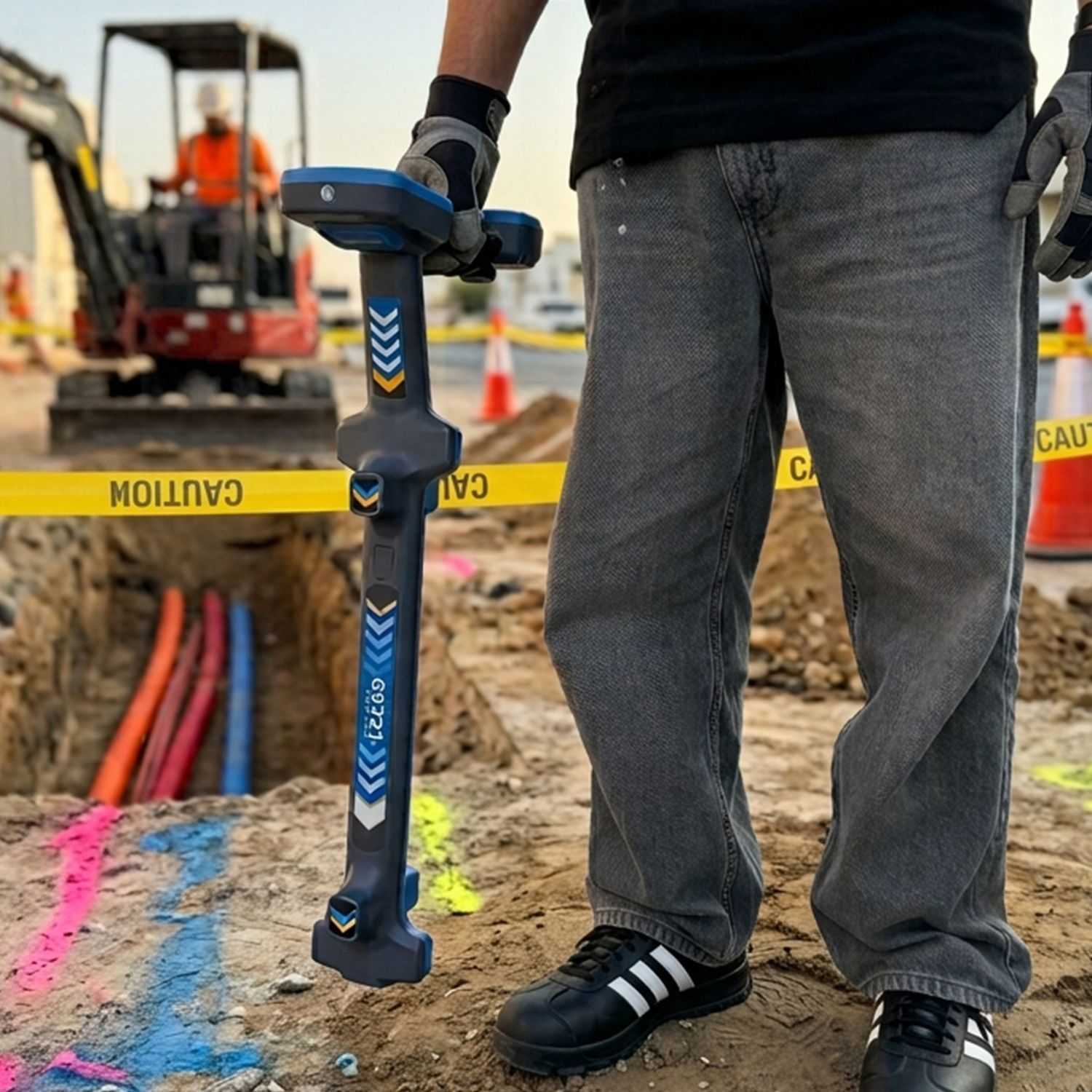

- Locate buried cables and metallic pipes with both active and passive detection modes, covering power frequency and radio frequency bands

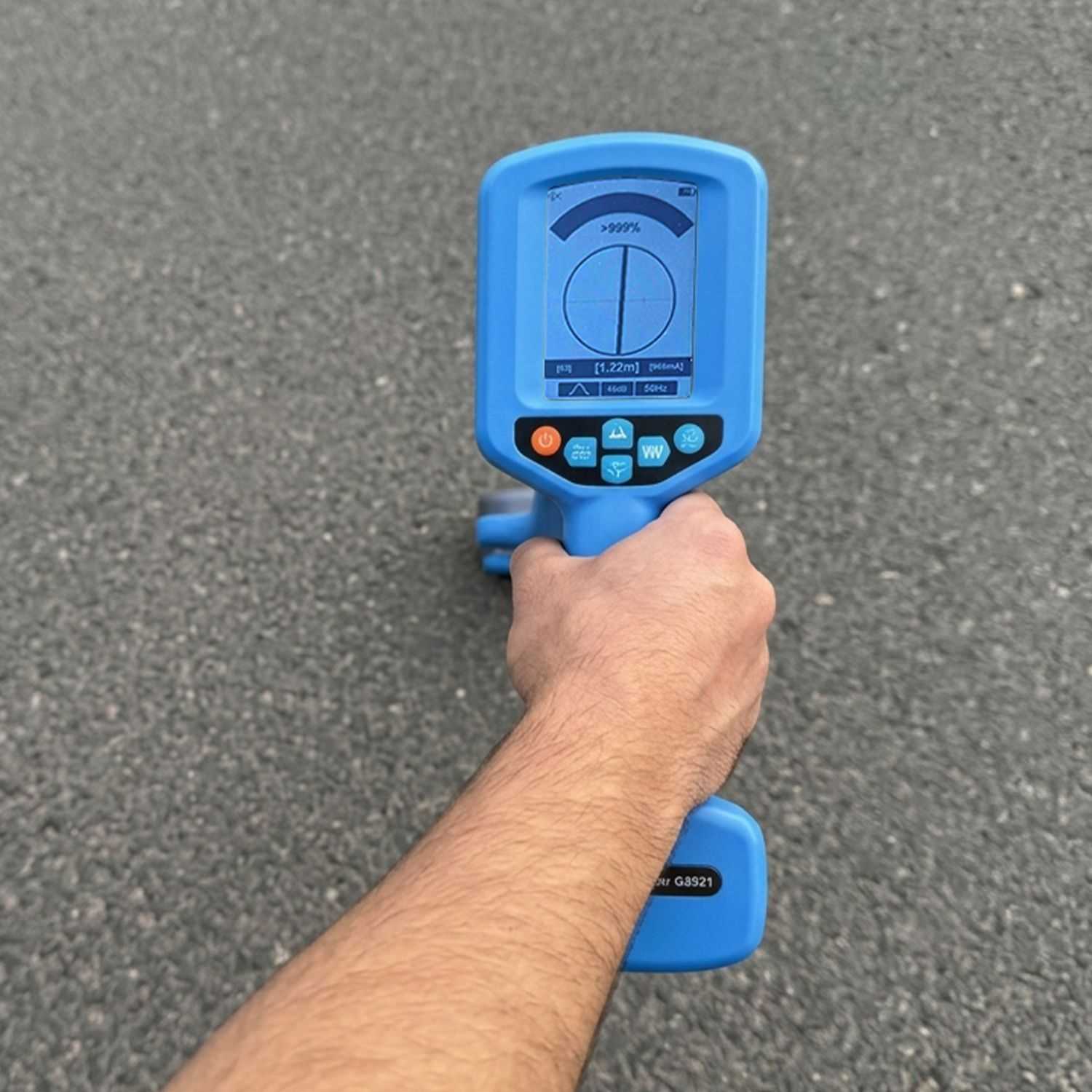

- Read utility depth in real time on screen to plan safe excavation without guesswork
- Hold a steady signal in noisy sites thanks to 0.5 Hz ultra-narrow bandwidth reception for strong interference resistance
- Match the locating frequency to site conditions with five active frequencies: 512 Hz, 1024 Hz, 8 kHz, 33 kHz and 82 kHz
- Works with direct connection, clamp coupling and radiation induction signal application methods
- Follow the route accurately with compass-guided tracing that shows position and direction of buried utilities
- Extend locating to non-metallic pipes and ducts with the optional Sonde, detecting up to 10 m deep
- 1 Year manufacturer's warranty
TECHNICAL SPECIFICATIONS
- Receiver Modes Built-in coil
- Detection Modes Wide peak, narrow peak, valley mode
- Active Frequencies 512Hz, 1024Hz, 8kHz, 33kHz, 82kHz
- Max Detection Depth 5 m
- Max Detection Depth (Sonde) 10 m
- Passive Frequency Band Power frequency and its harmonics, high, medium and low frequency bands of radio frequency
- Human-Machine Interface 320 x 480 LCD
- Communication Bluetooth (optional)
- Power Supply Built-in lithium-ion battery pack, nominal 7.4V, >2.5Ah
- Dimensions 628 x 287 x 98 mm
- Weight 1.18 kg
SERVICES
Gazelle Tool Service- Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
- Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
- Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.
PERFORMANCE YOU TRUST
Trusted by Professionals- Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
- Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
- Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
- Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
- Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.
DOWNLOADS
PACKAGING INFO
- Width28 cm
- Length73 cm
- Height38 cm
- Weight1.7 Kg
