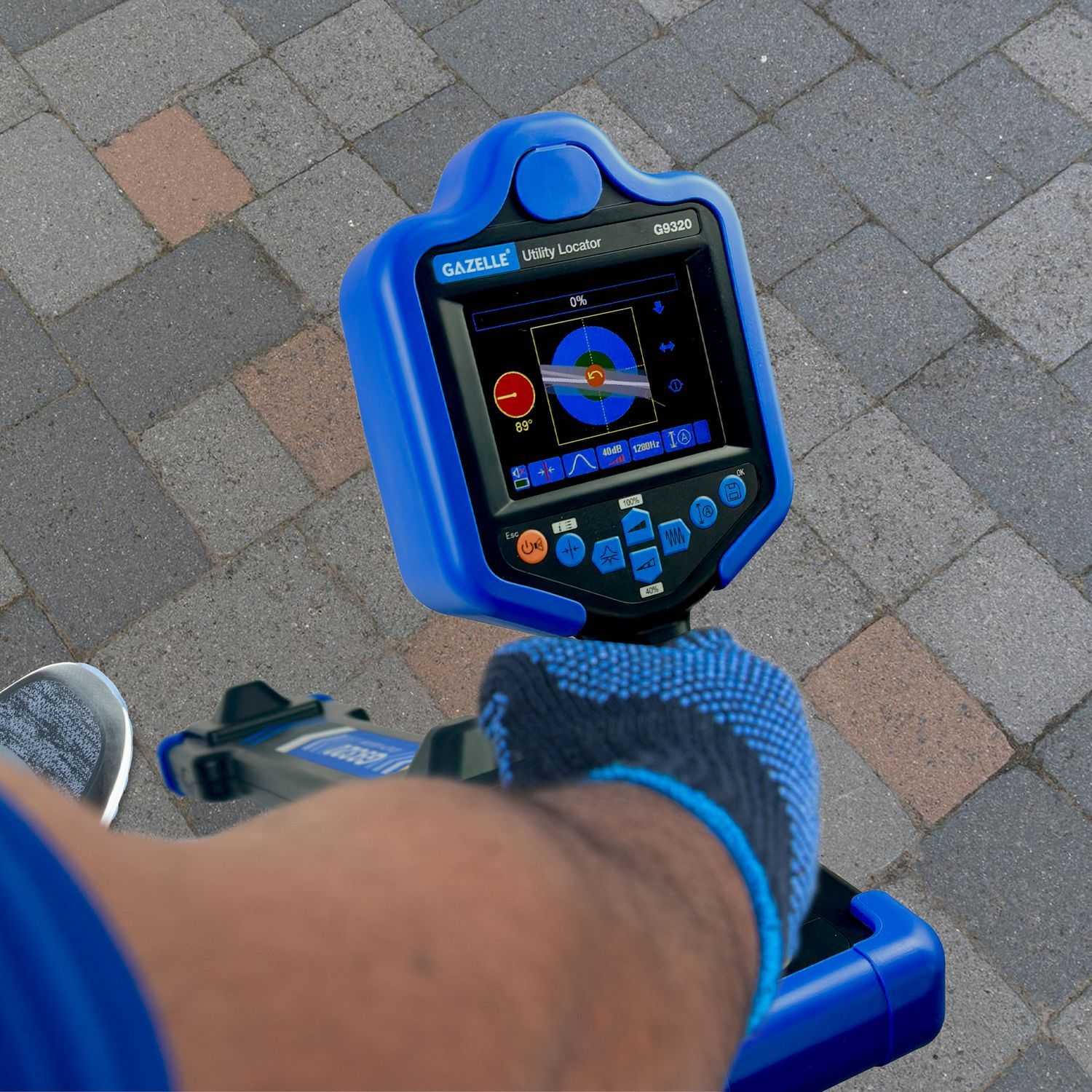

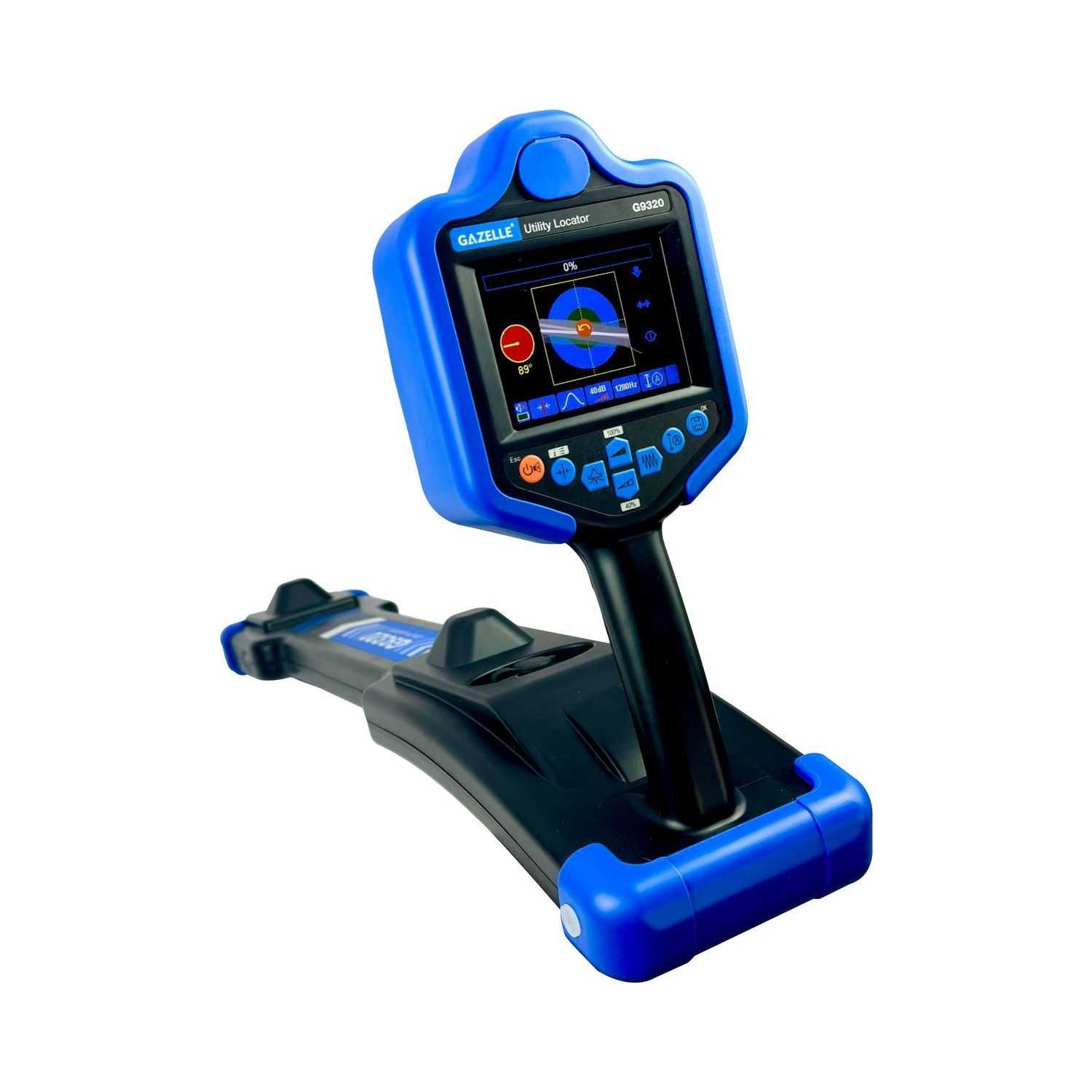

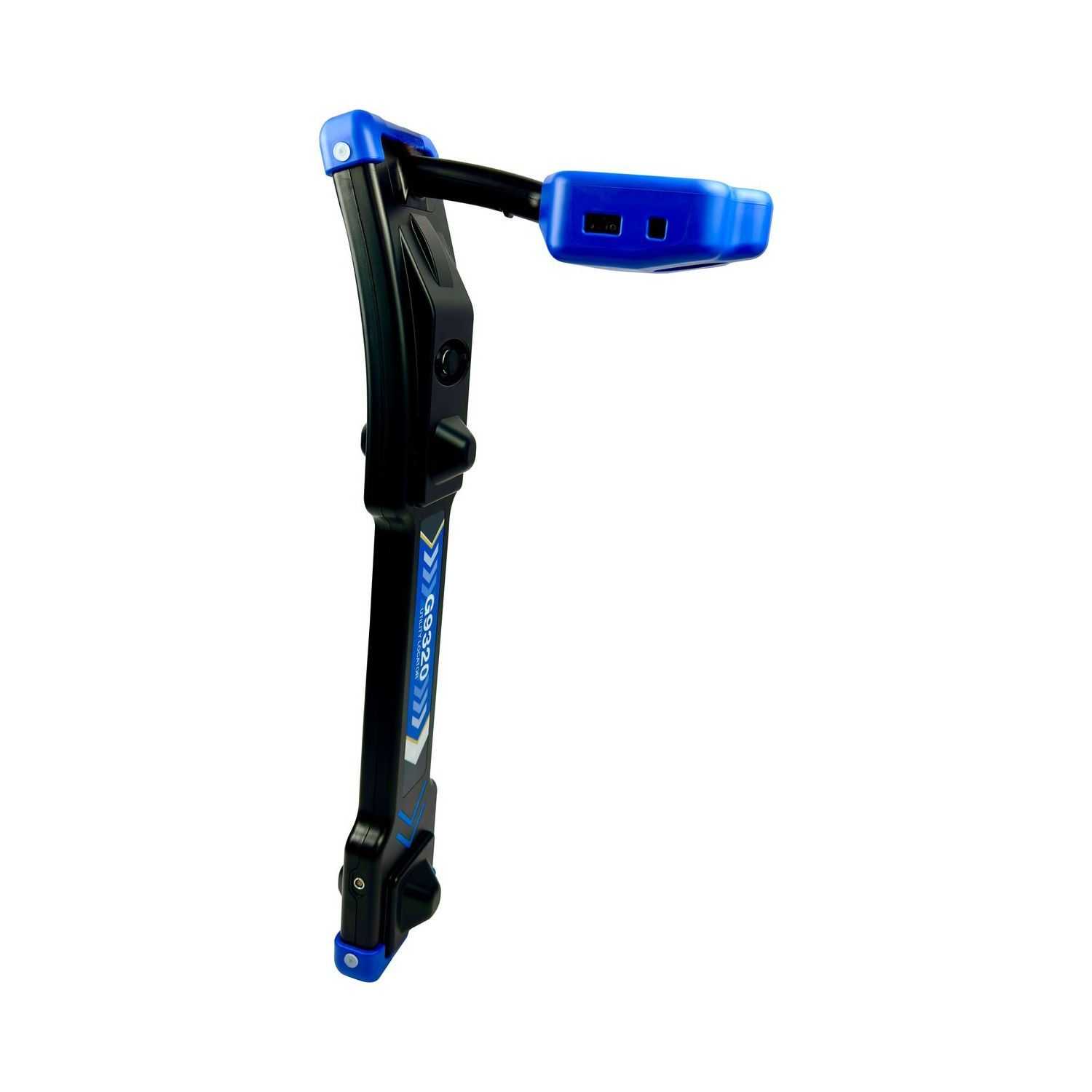

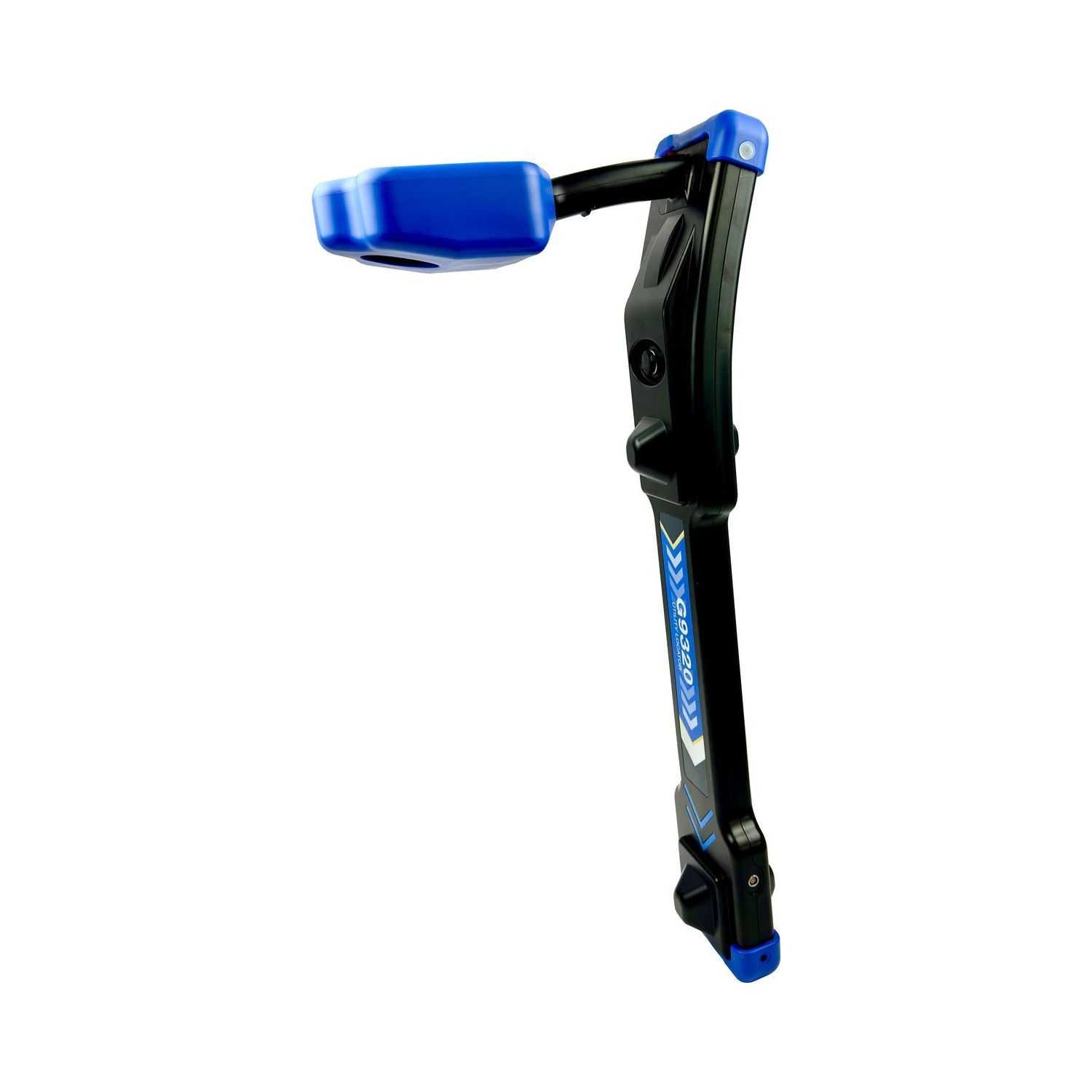

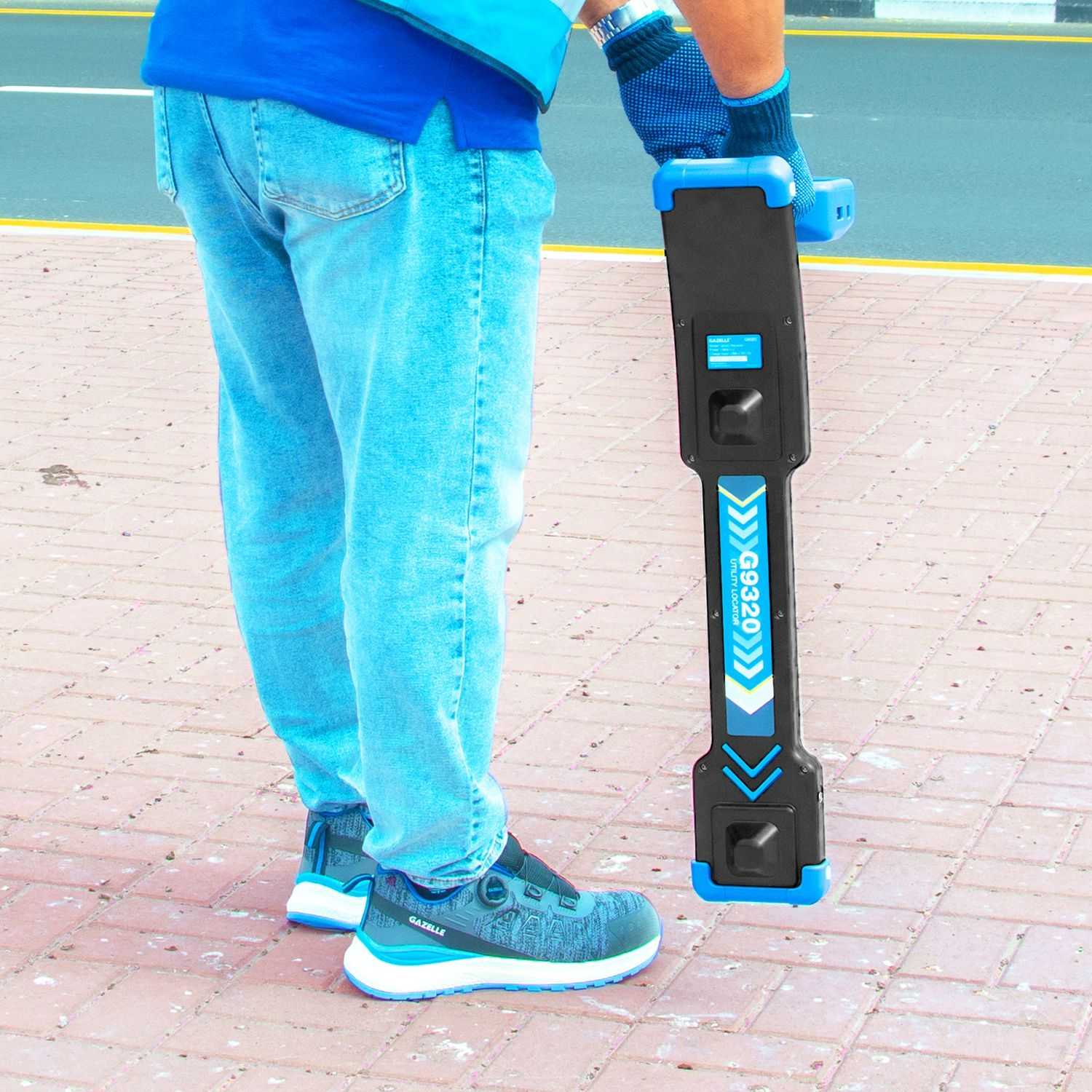

G9320 Underground Utility Locator (with Rechargeable Battery)

Gazelle Tool Service
Warranty
Find A Distributor

Features

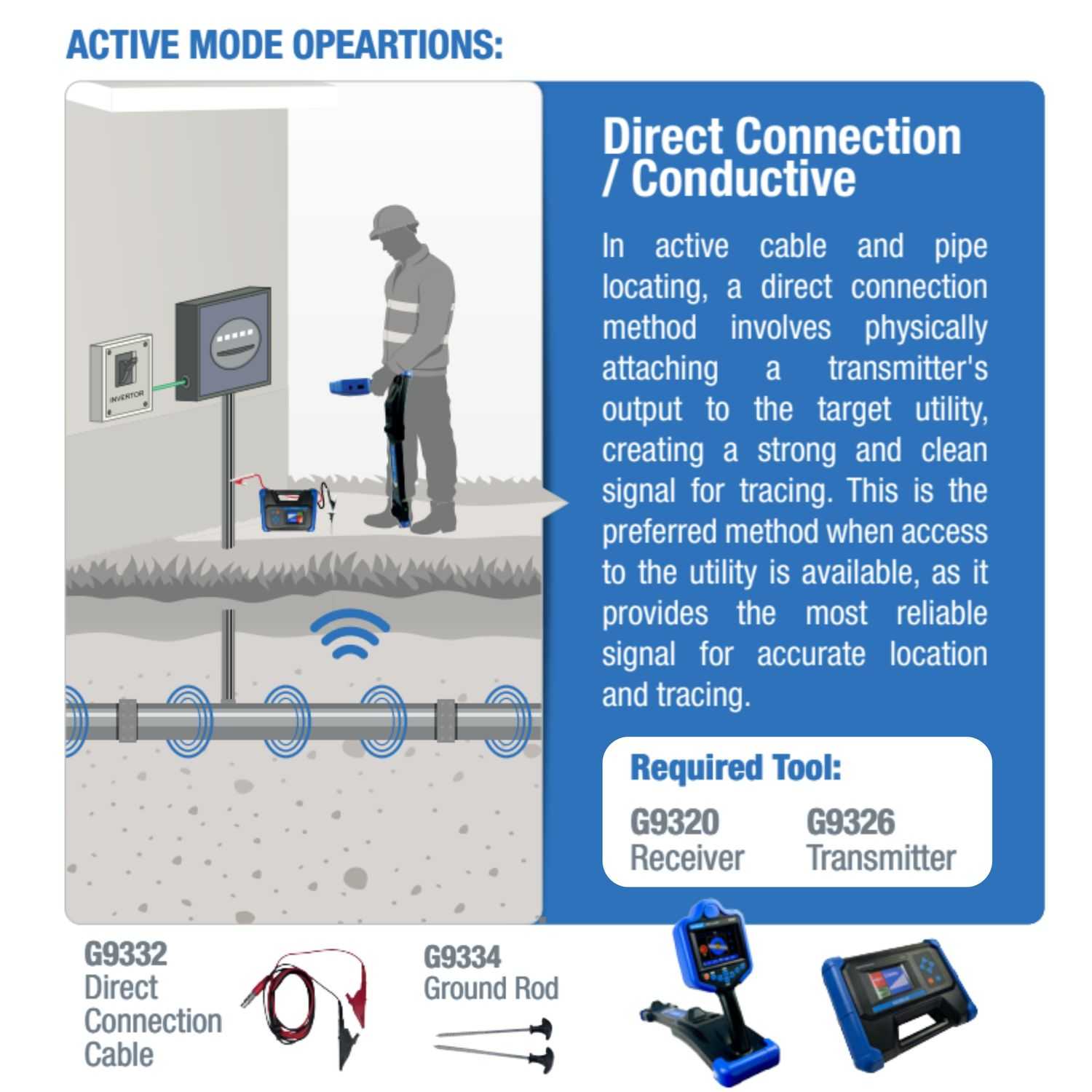

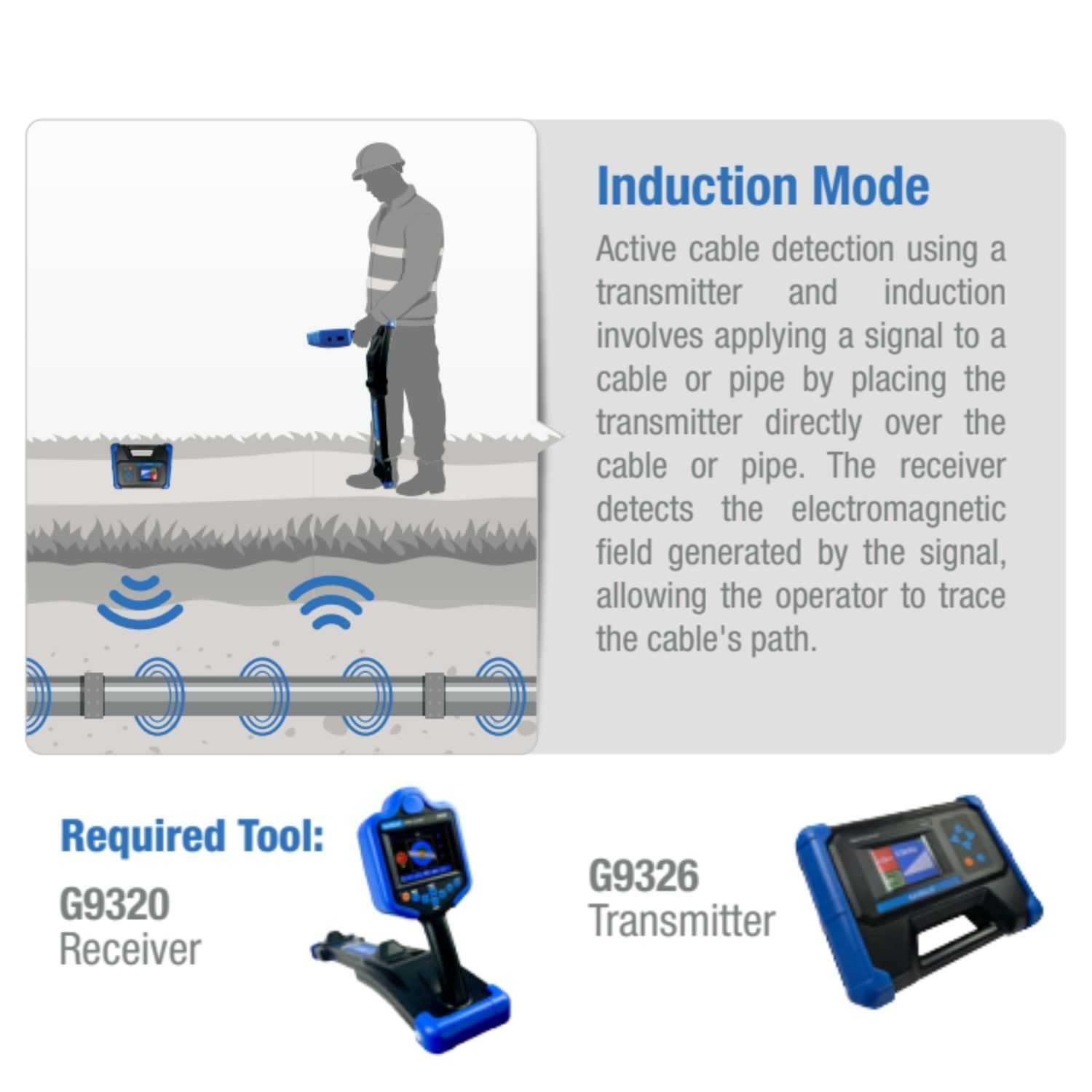

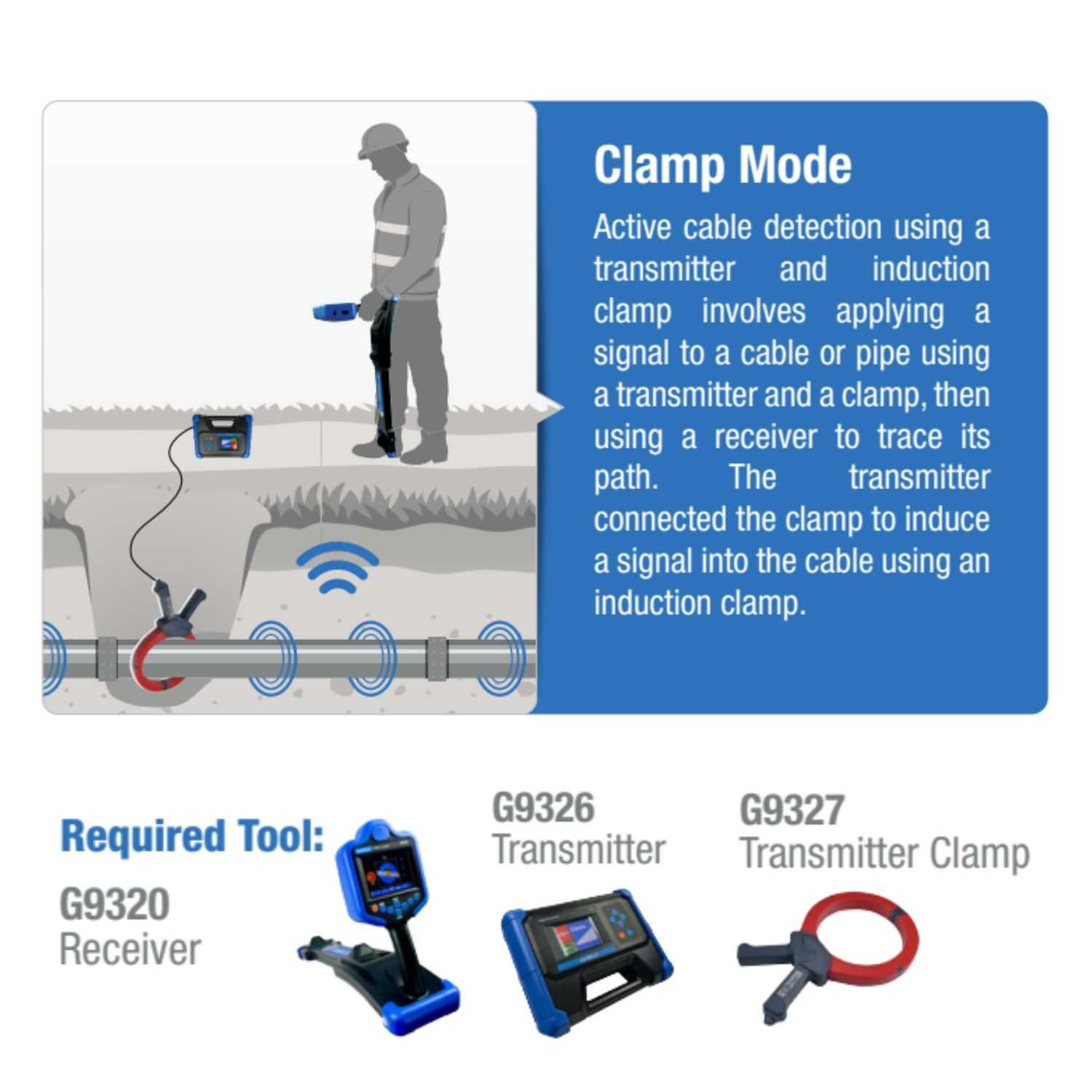

  • Receiver Modes: Direct connection, clamp coupling, radiation, booster mode
  • Detection Modes: Wide peak, narrow peak, valley mode, historical curve, frequency spectrum
  • Active Frequencies: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
  • Charger Input: AC 100-240V, 50/60Hz
  • Charger Output: DC 8.4V, 2A
  • Warranty: 1 year manufacturer's warranty

Scope of Delivery

  • G9320 Utility Locator
  • G9333 Receiver Charger

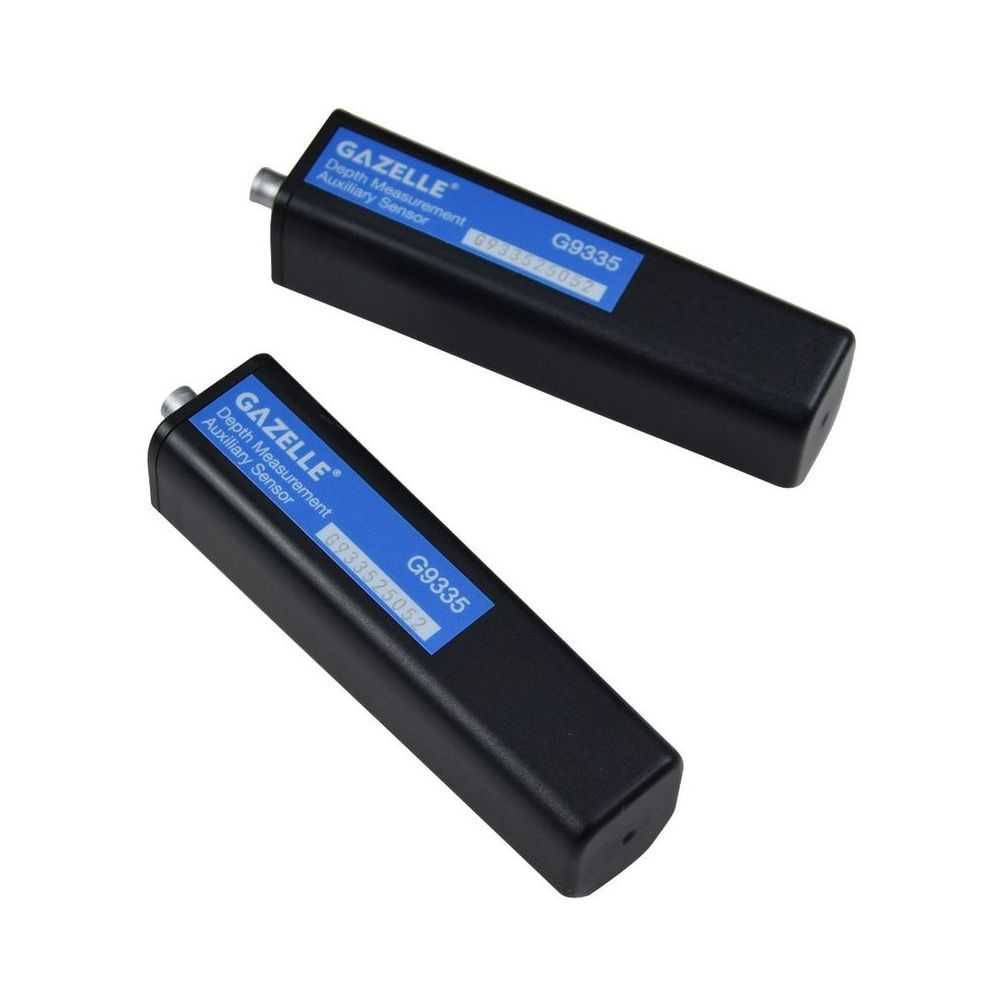

  • G9335 Depth Measurement Auxiliary Sensory

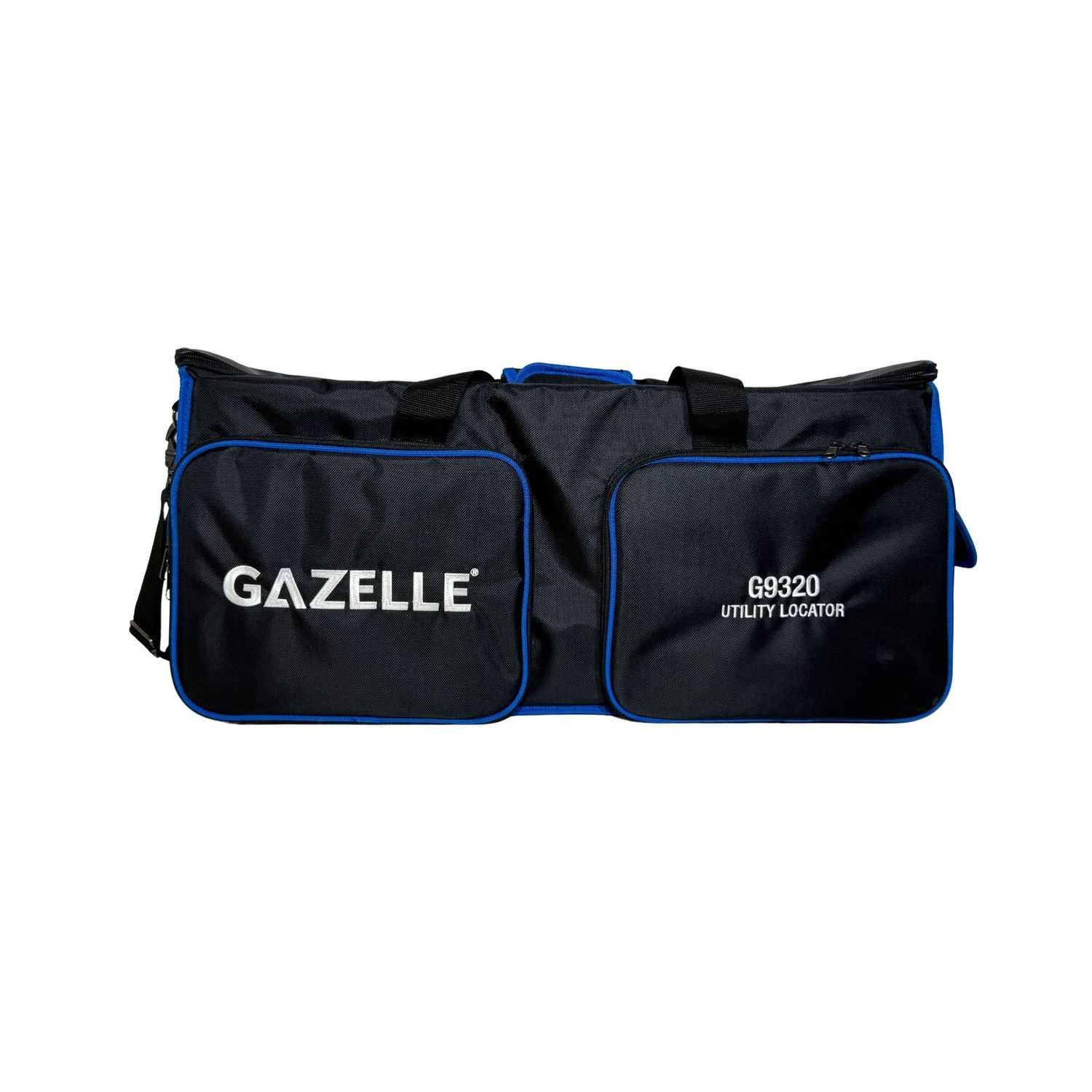

  • Soft Carry Case

FEATURES & APPLICATION

Features

  • Multi-Mode Operation: Offers direct connection, clamp coupling, radiation, and booster modes for versatile utility detection.
  • Advanced Detection Modes: Includes wide peak, narrow peak, valley mode, historical curve, and frequency spectrum for precise and detailed analysis.
  • Comprehensive Frequency Support: Active frequencies range from 640Hz to 197kHz, with passive support for power frequencies, harmonics, and radio frequency bands.
  • High-Visibility Display: Equipped with a 320×240 dot matrix color LCD, ensuring clear readability even in bright sunlight.
  • Durable Battery Backup: Features a built-in lithium-ion battery (7.4V, >3Ah) for extended operational hours, with a fast-charging capability.
  • Robust Build for Extreme Conditions: IP65-rated protection ensures reliability in harsh environments, with operational temperatures from -25°C to 60°C and altitudes up to 4500 meters.
  • Compact and Lightweight: Weighs only 2.0kg with dimensions of 680×120×277mm, making it portable and easy to handle.
  • Deep Detection Capability: Measures depths up to 25 meters in active mode, providing accurate underground utility mapping.

Applications

  • Utility Services: Ideal for locating underground cables, pipes, and other utilities during maintenance and repair operations.
  • Construction: Used for pre-construction surveys to identify and avoid underground utilities, ensuring safe excavation.
  • Telecommunications: Facilitates the detection of buried telecom cables for installation and maintenance tasks.
  • Energy Sector: Supports the identification of underground power lines and pipelines in renewable and conventional energy projects.
  • Municipal Infrastructure: Essential for mapping and maintaining water, gas, and sewage pipelines in urban and industrial areas.
  • Industrial Facilities: Assists in locating buried utilities within large industrial complexes for maintenance and expansion projects.

TECHNICAL SPECIFICATIONS

  • Receiver Modes Direct connection, clamp coupling, radiation, booster mode
  • Detection Modes Wide peak, narrow peak, valley mode, historical curve, frequency spectrum
  • Active Frequencies 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz

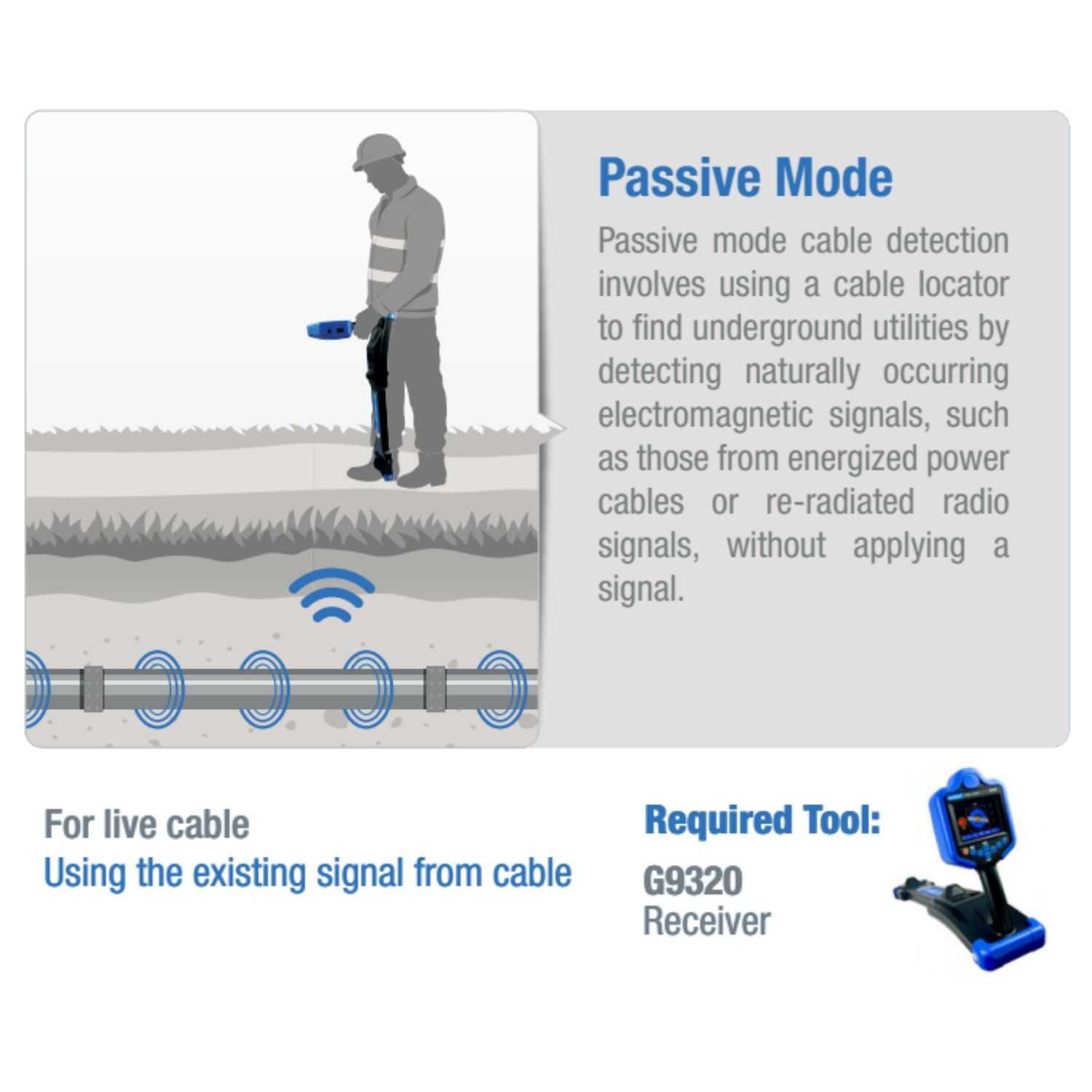

  • Passive Frequencies Power frequency and harmonics, radio frequency

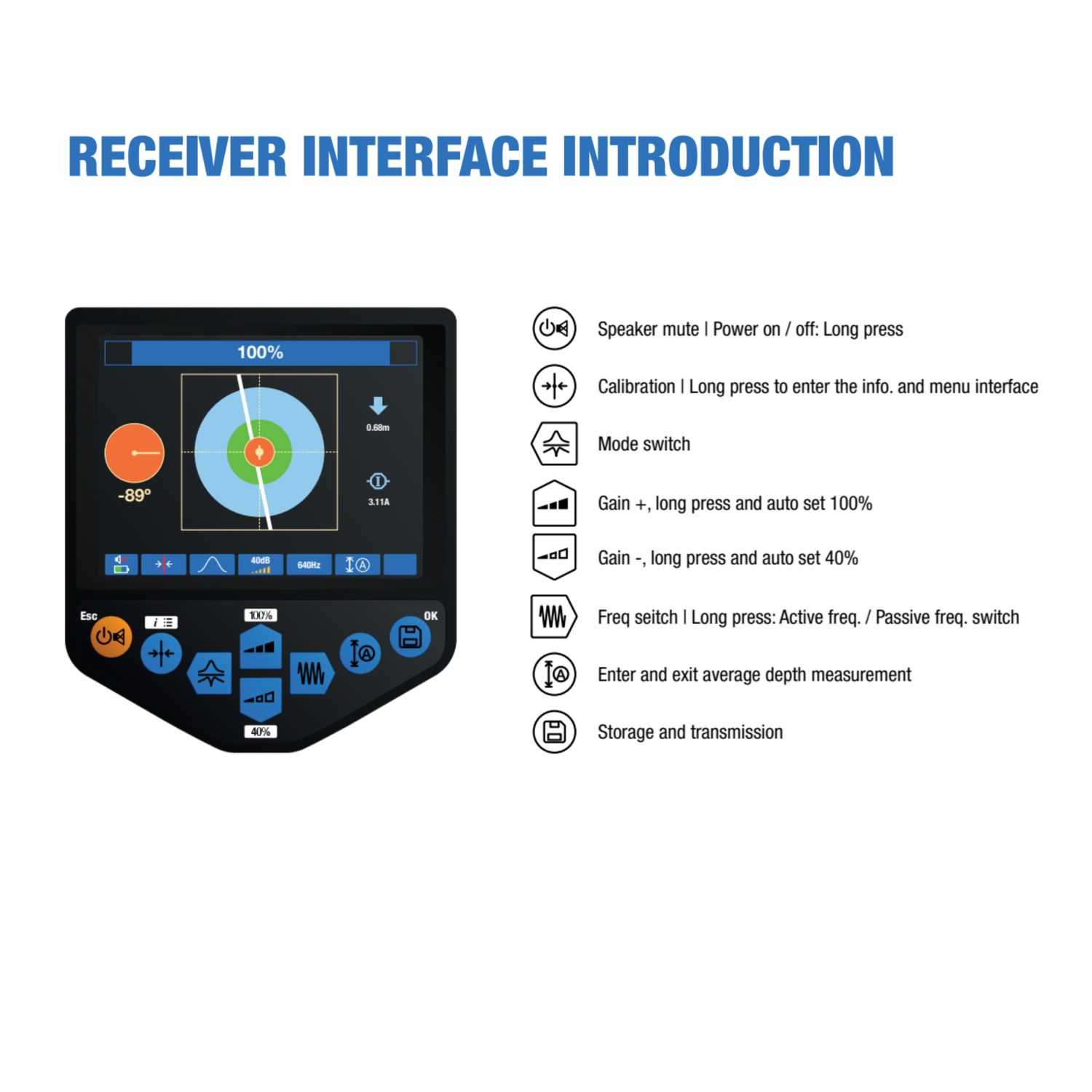

  • Display Interface 320×240 dot matrix color LCD
  • Battery Type and Capacity Lithium-ion, 7.4V nominal, >3Ah
  • Charger Input AC 100-240V, 50/60Hz
  • Charger Output DC 8.4V, 2A
  • Dimensions 680×120×277 mm
  • Weight 2.0 kg
  • Protection Rating IP65
  • Max depth measurement25 meters (Active Mode)
  • Operating Conditions Temperature -25°C to 60°C; humidity <90%; altitude <4500m
