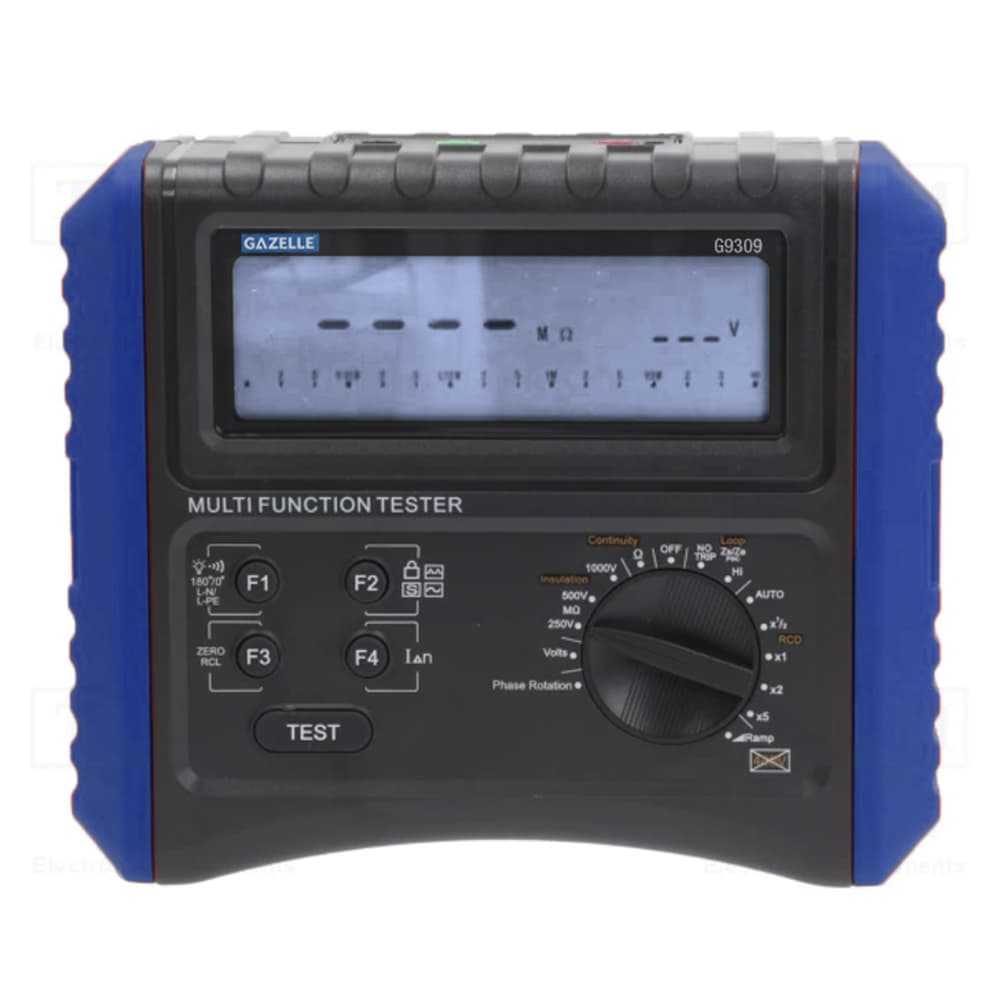

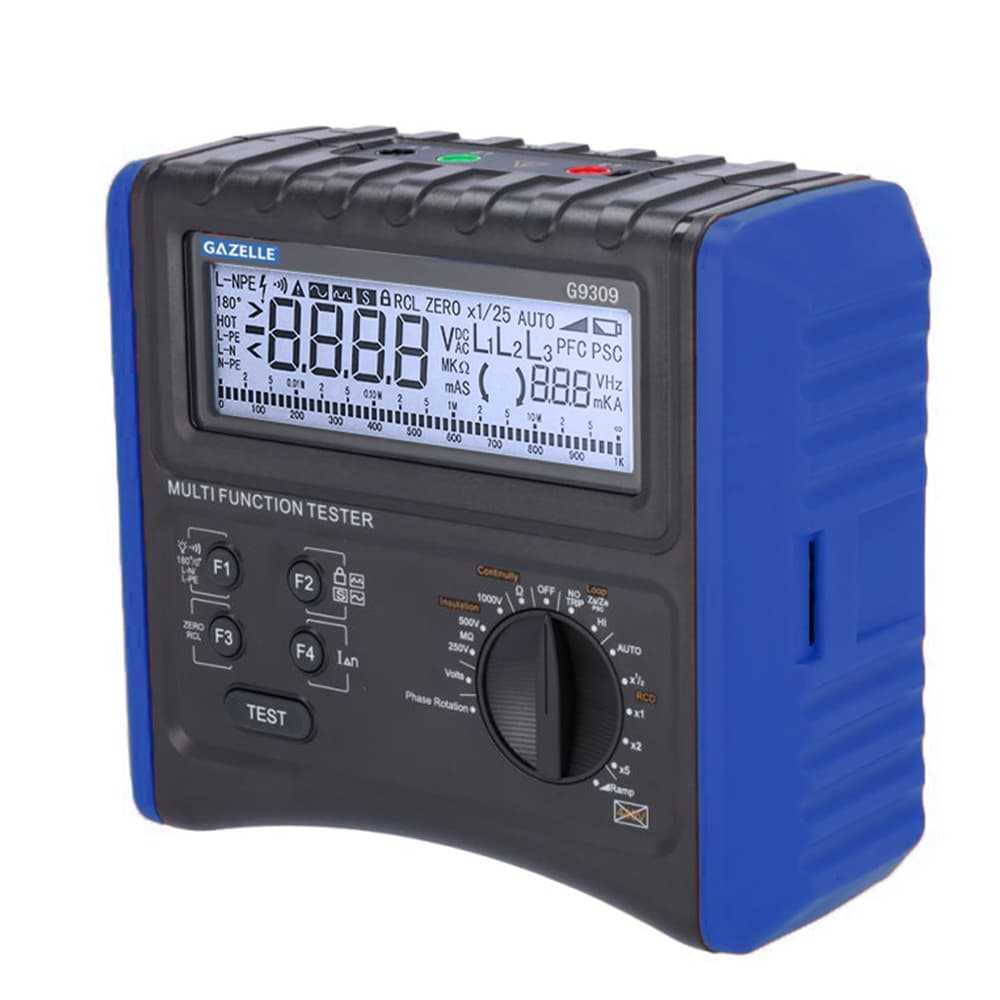

G9309 Multifunction Installation Tester

Multifunction Installation Tester
Multifunction Installation Tester
Multifunction Installation Tester
Multifunction Installation Tester
Multifunction Installation Tester
Multifunction Installation Tester
Multifunction Installation Tester

G9309 Multifunction Installation Tester

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • RCD Test Current: 10, 30, 100, 300, 500 mA
  • Loop Impedence Test (Current/Time): 20A/20 ms
  • Line Impedence Test (Current/Time): 20A/20 ms
  • Insulation Resistance (250V): 0.05 - 250 MΩ
  • Warranty: 1 year manufacturer's warranty

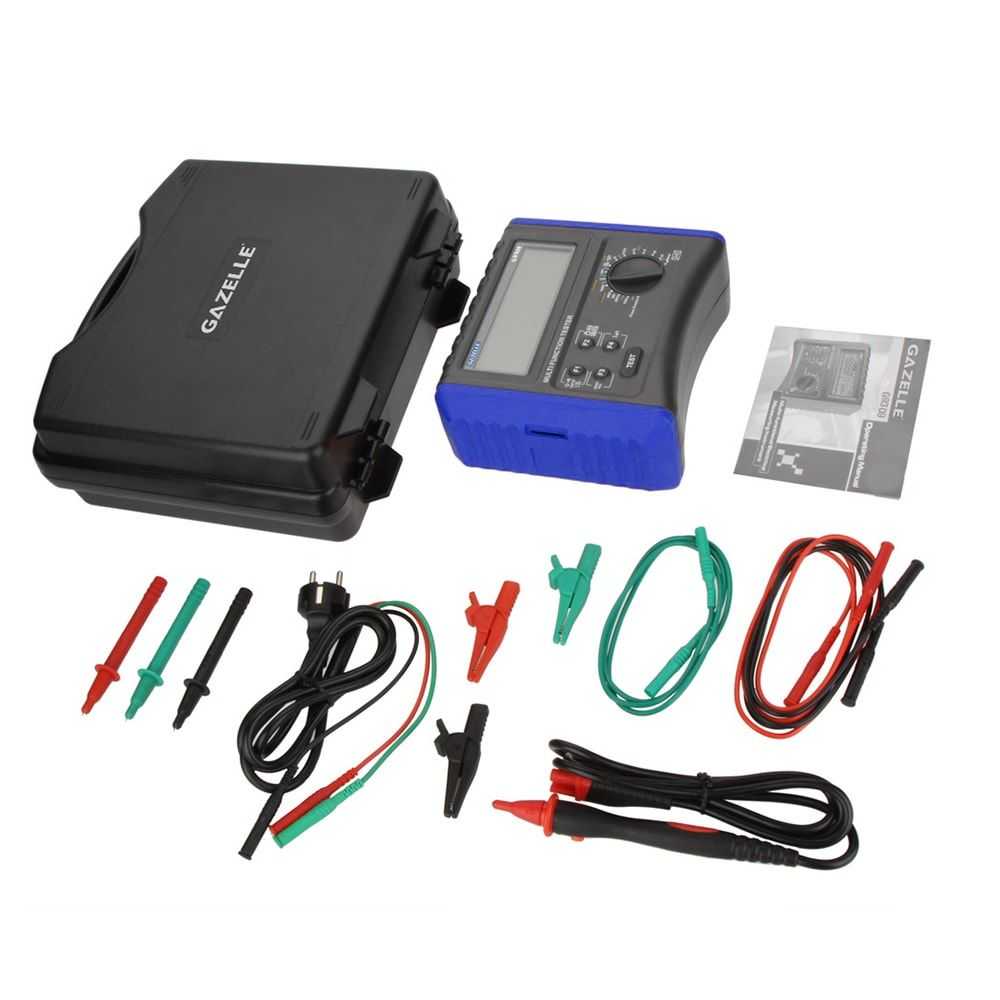

Scope of Delivery

  • 1x Installation Tester
  • 8x 1.5V AA Alkaline Batteries
  • 1x Operating Manual
  • 1x Pair of test leads
  • 1x Carry bag

FEATURES & APPLICATION

Features

  • RCD Testing: Measures RCD test currents (10, 30, 100, 300, 500 mA) with high precision.
  • Impedance Testing: Performs loop and line impedance tests with 20A/20ms current and time settings.
  • Insulation Resistance: Selectable test voltages—250V (0.05–250MΩ), 500V (0.05–500MΩ), and 1000V (0.05–1000MΩ).
  • Continuity Testing: Test scope from 0.01Ω to 200Ω for detailed diagnostics.
  • Voltage & Frequency: Measures AC/DC voltage up to 400V with a frequency range of 20–100Hz.
  • Display: 9999-count LCD display for clear and detailed readings.
  • Safety Rating: CAT III 300V safety rating for reliable operation in industrial environments.
  • Design: Compact design with integrated analog and digital circuits for stable performance.
  • Applications: Ideal for testing, inspection, and maintenance work across various applications.

Applications

  • Electrical Maintenance: Ideal for testing and verifying electrical installations in industrial and commercial systems.
  • Power Distribution: Suitable for ensuring safety and compliance in power distribution networks.
  • Industrial Equipment: Essential for maintaining and inspecting machinery and equipment.
  • Construction: Used for testing electrical installations in large-scale building projects and infrastructure.
  • Telecommunications: Applicable for verifying electrical safety in telecom towers and data centers.

TECHNICAL SPECIFICATIONS

  • RCD Test Current10, 30, 100, 300, 500 mA
  • Loop Impedence Test (Current/Time)20A/20 ms
  • Line Impedence Test (Current/Time)20A/20 ms
  • Insulation Resistance (250V)0.05 - 250 MΩ
  • Insulation Resistance (500V)0.05 - 500 MΩ
  • Insulation Resistance (1000V)0.05 - 1000 MΩ
  • Frequency Range20 - 100 Hz
  • Continuity Test Scope0.01 - 200 Ω
  • Voltage Range (AC/DC)0 - 400V
  • Display TypeLCD
  • Display Count9999
  • Safety RatingCAT III 300V
  • Dimensions (LxWxD)210 x 175 x 90mm
