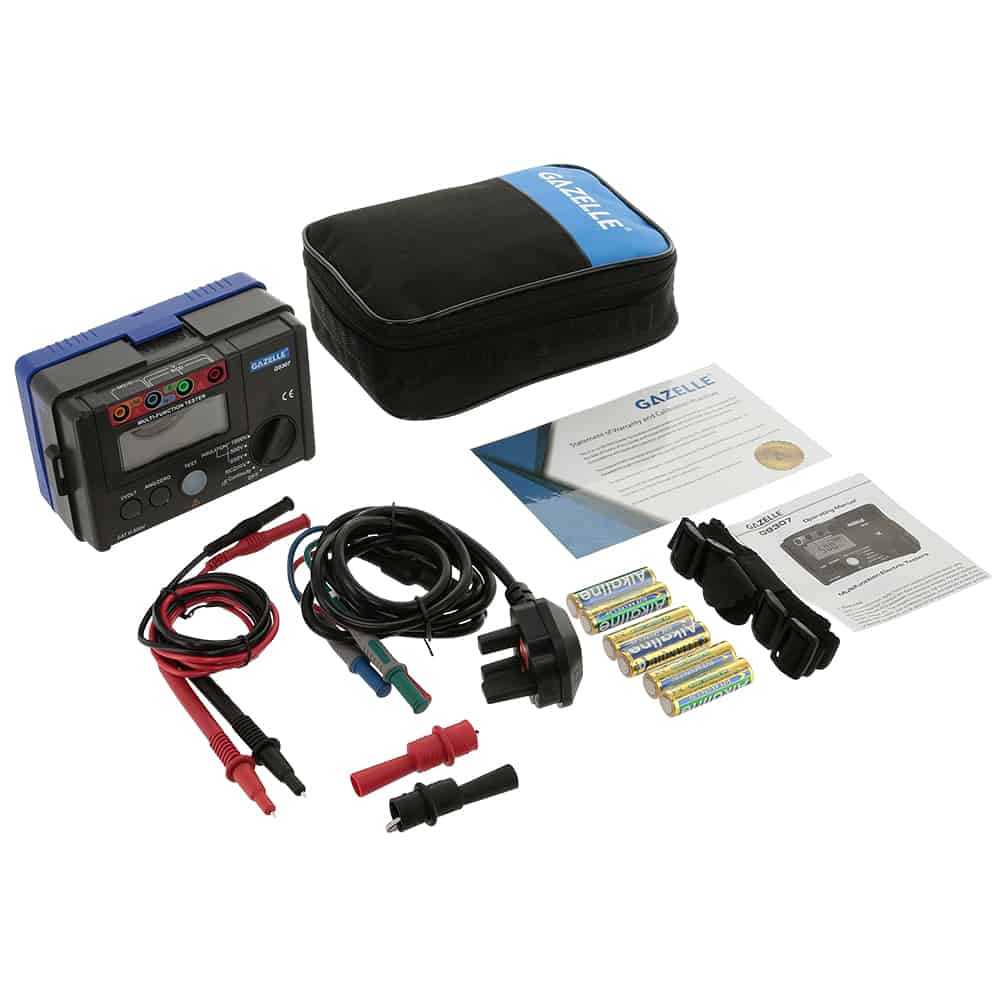

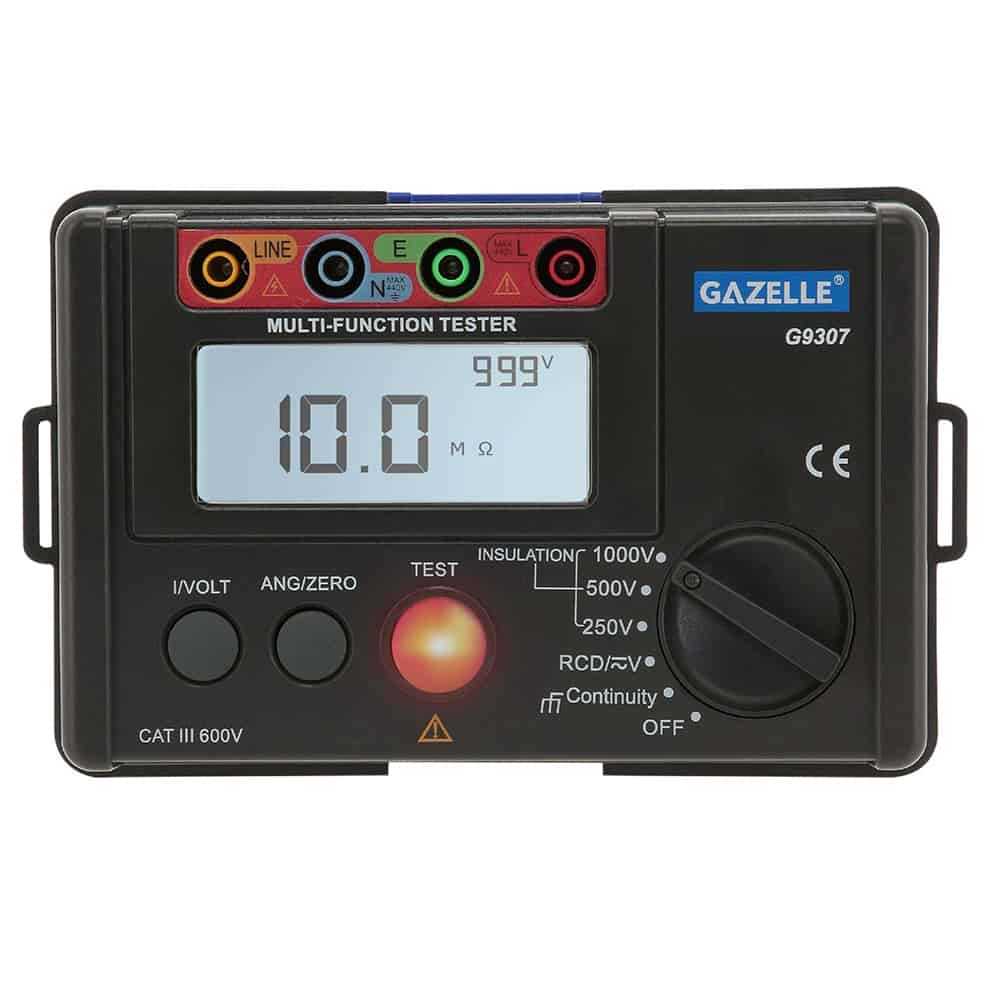

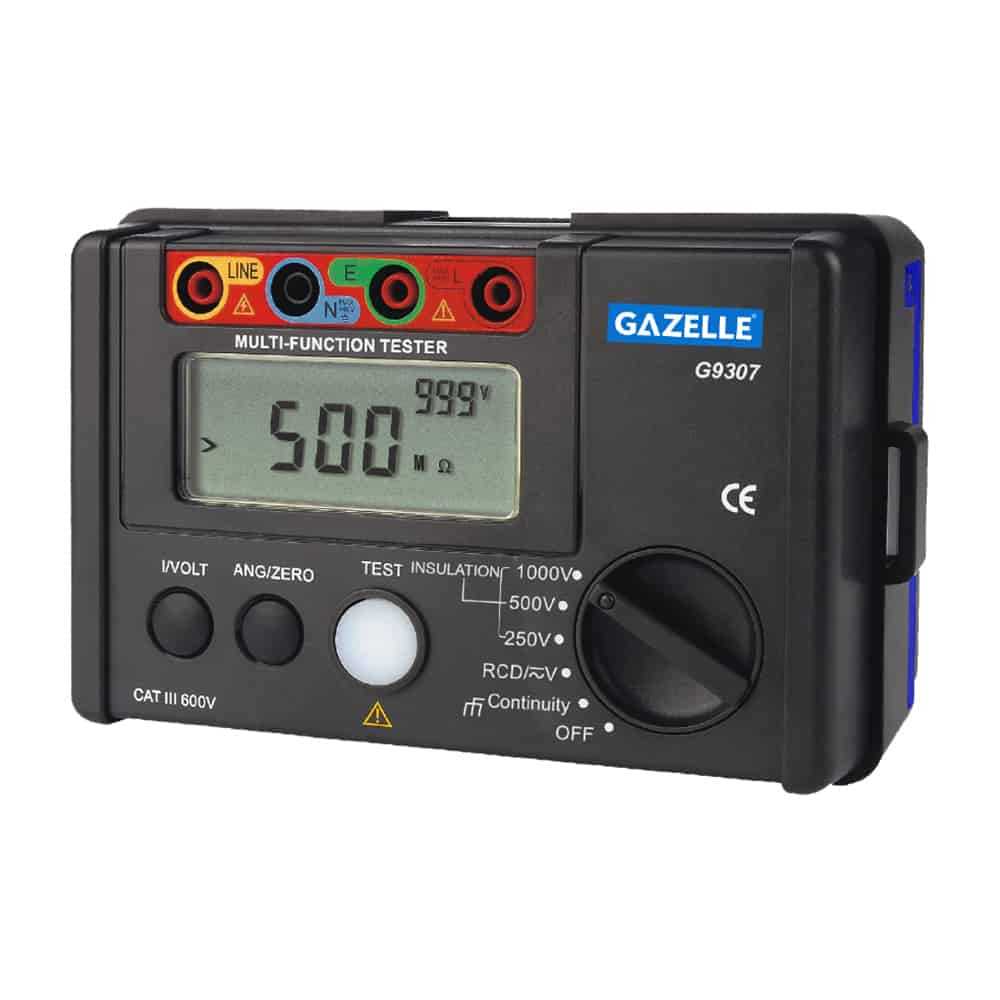

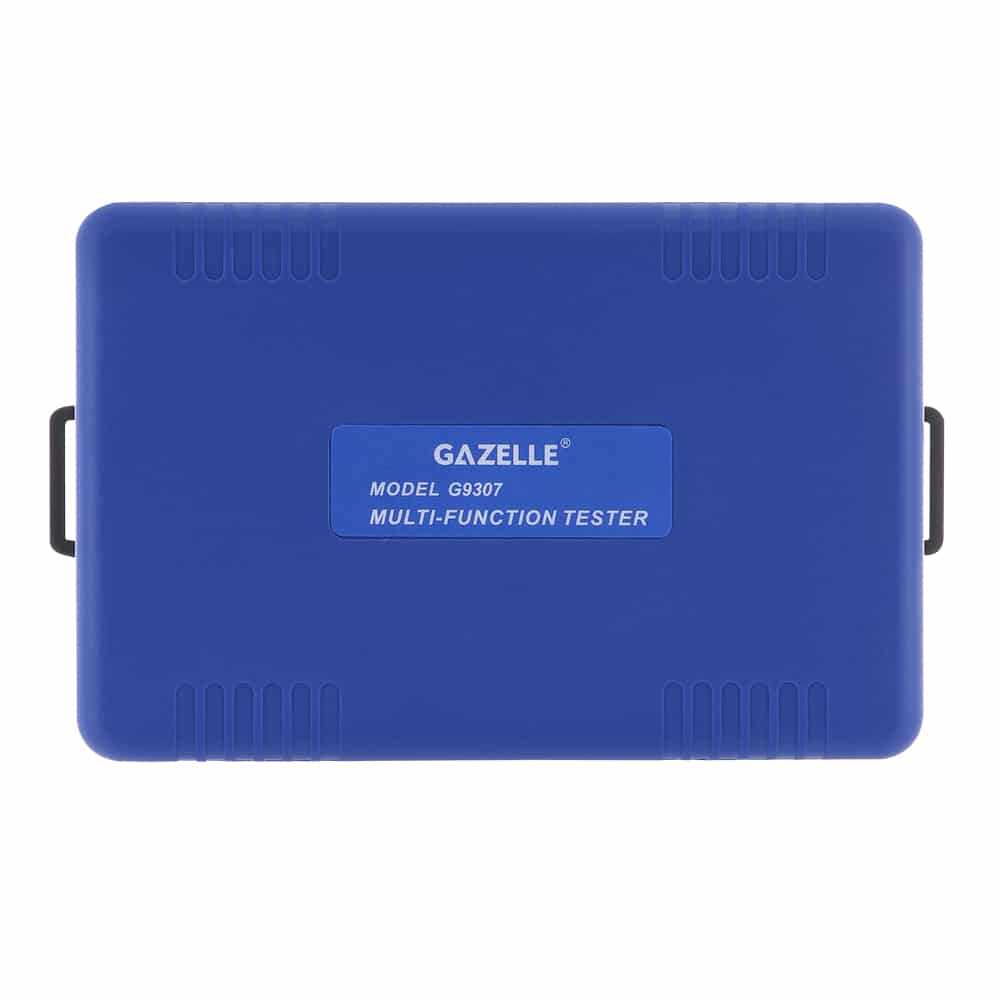

G9307 Multifunction Electrical Tester

Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester
Multifunction Electrical Tester

G9307 Multifunction Electrical Tester

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • Insulation Resistance (250V): 0.05-200MΩ
  • Insulation Resistance (500V): 0.05-300MΩ
  • Insulation Resistance (1000V): 0.05-500MΩ
  • RCD Voltage/Frequency: 220V/45-65Hz
  • Warranty: 1 year manufacturer's warranty

FEATURES & APPLICATION

Features

  • Insulation Resistance: Measures insulation resistance with selectable test voltages—250V (0.05–200MΩ), 500V (0.05–300MΩ), and 1000V (0.05–500MΩ).
  • RCD Testing: RCD testing at 220V/45–65Hz with selectable test currents of 10/30/100/300mA.
  • Voltage Measurement: Capable of measuring both AC and DC voltage up to 440V.
  • Safety Features: Over-range indication and test lead connection alarm for enhanced safety.
  • Operation: Fast measurement capture with a dedicated TEST button.
  • Display & Usability: Backlight and data hold features for improved usability in various environments.
  • Power Efficiency: Auto power-off and battery check functions for efficient operation.
  • Design: Compact and lightweight design for portability and ease of use.

Applications

  • Electrical Maintenance: Ideal for testing insulation and RCD functionality in industrial and commercial electrical systems.
  • Power Distribution: Suitable for verifying insulation and safety in power distribution networks.
  • Industrial Equipment: Essential for ensuring the safety and functionality of machinery and equipment.
  • Construction: Used for testing electrical installations in new building projects and infrastructure.
  • Telecommunications: Applicable for verifying electrical safety in telecom towers and data centers.

TECHNICAL SPECIFICATIONS

  • Insulation Resistance (250V)0.05-200MΩ
  • Insulation Resistance (500V)0.05-300MΩ
  • Insulation Resistance (1000V)0.05-500MΩ
  • RCD Voltage/Frequency220V/45-65Hz
  • RCD Test Current10/30/100/300mAfalse
  • AC Voltage Measurement0-440V
  • DC Voltage Measurement0-440V

SERVICES

HiltiIconGazelle Tool Service
  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

TrustedTrusted by Professionals
  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

PACKAGING INFO

  • Width26 cm
  • Length26 cm
  • Height8 cm
  • Weight1.2 Kg
