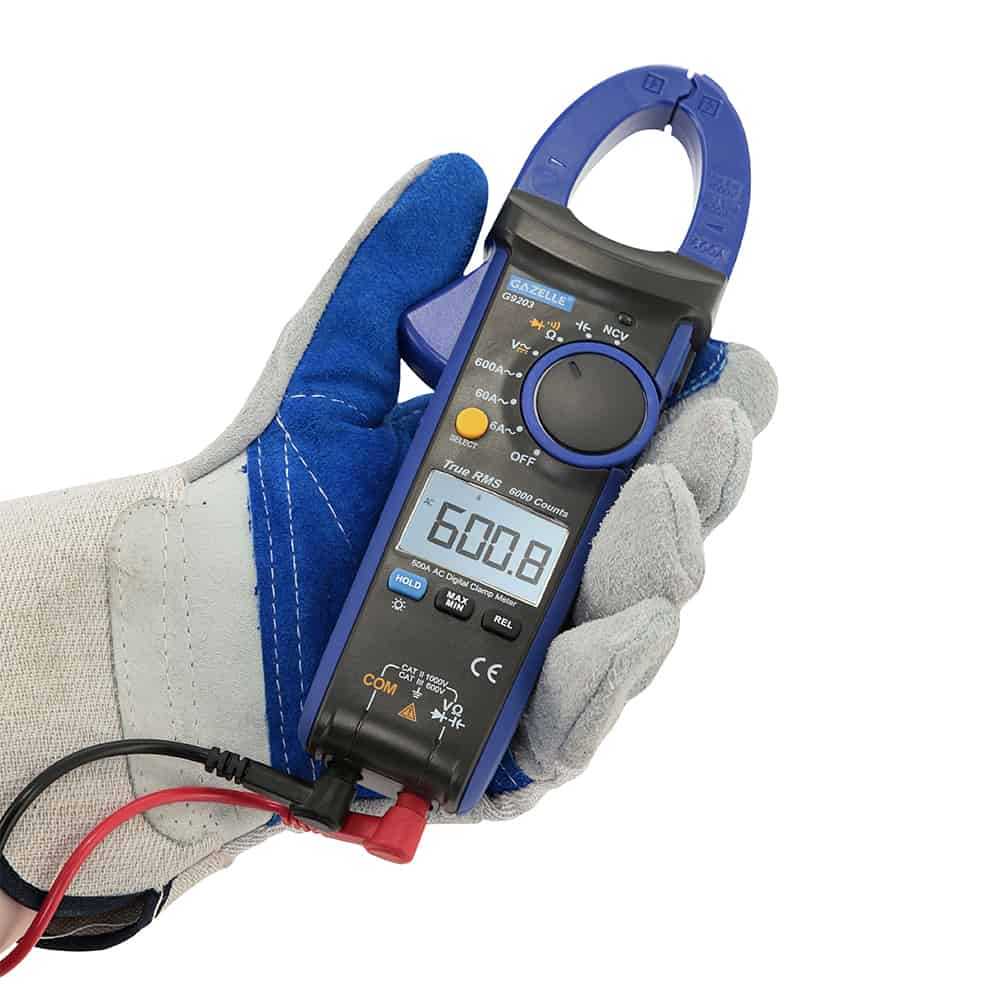

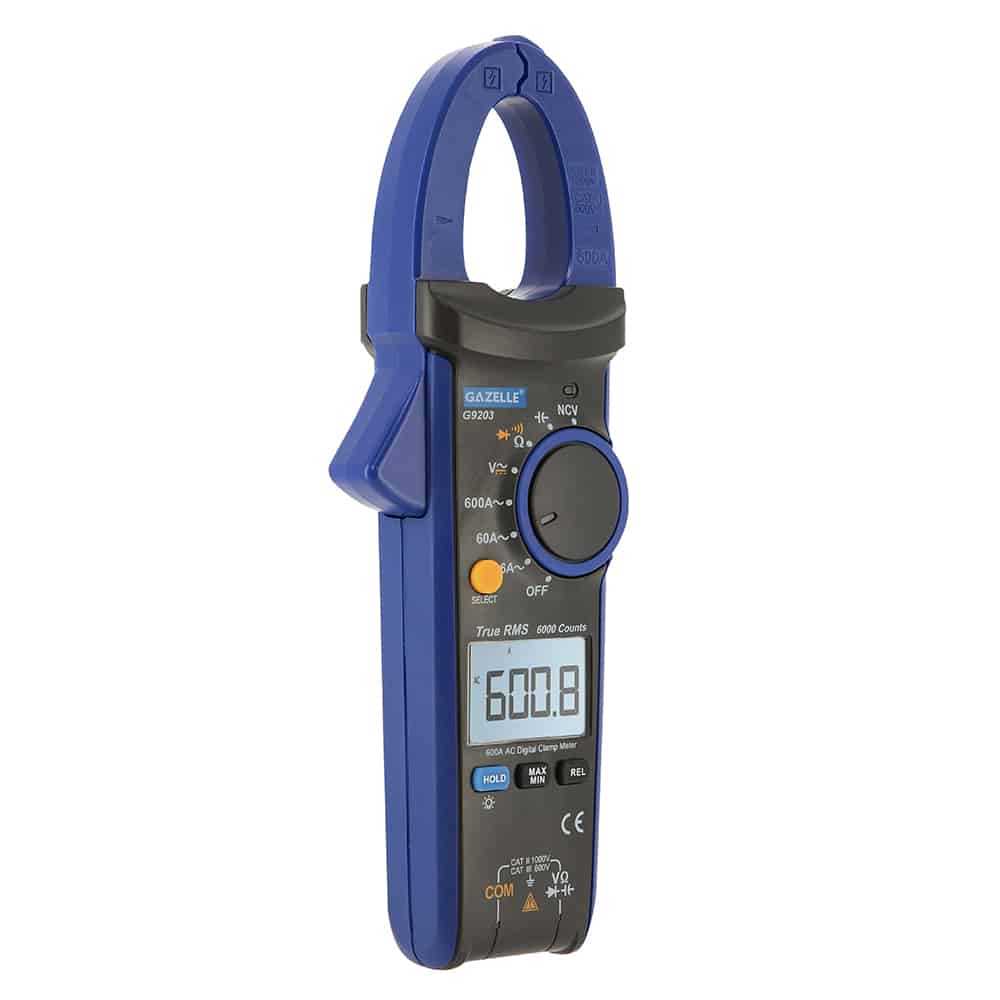

G9203 True RMS Clamp Meter, 600A
G9203 True RMS Clamp Meter, 600A
Features
- TRMS, AC/DC Voltage and AC current measurement
- Multi function capable for Resistance, Diode, Continuity, Frequency measurements
- 600A full range overload protection for additional safety
- CAT II 1000V / CAT III 600V safety rating
- Big LCD display Clear white backlight for measurement in dark areas
- Includes a built in torch for dark electrical panel
- NCV voltage detectors for safety verification
- Includes Gazelle branded carrying case
- 1 year warranty against manufacturing defect only
Technical Specifications
AC Current6/60/600A
AC Voltage6/60/600/750V
Jaw Capacity30mm
Safety RatingCAT III 600V
DC Voltage600mV/6/60/600/1000V
Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency10Hz-10Mhz
Capacitance99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/60mF
Input Impedance for DCV≥10MΩ

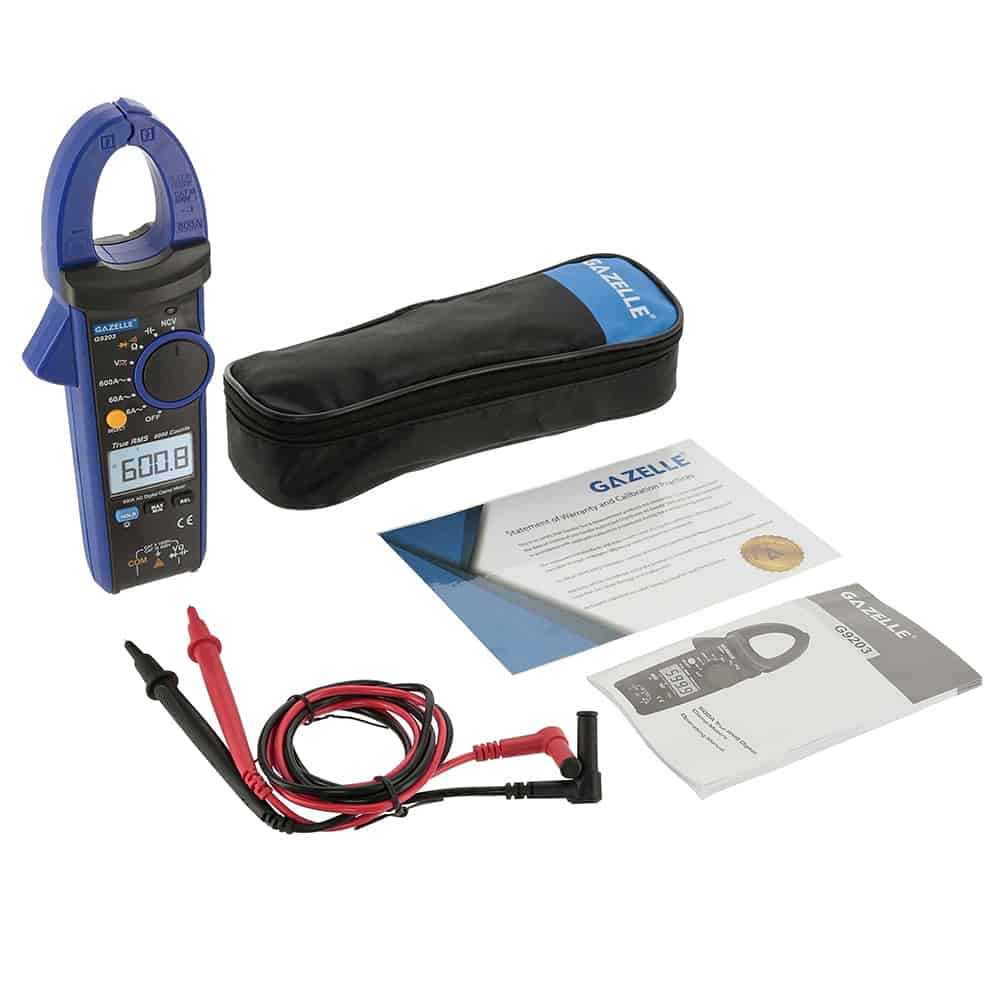

Items Included
- Operating Manual
- Carrying Case
- Test Lead
Downloads
Packaging Info
- Width9 cm
- Length27.5 cm
- Height6.5 cm
- Weight0.4 kg
- AC Current6/60/600A
- AC Voltage6/60/600/750V
- Jaw Capacity30mm
- Safety RatingCAT III 600V
- DC Voltage600mV/6/60/600/1000V
- Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Frequency10Hz-10Mhz
- Capacitance99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/60mF
- Input Impedance for DCV≥10MΩ
