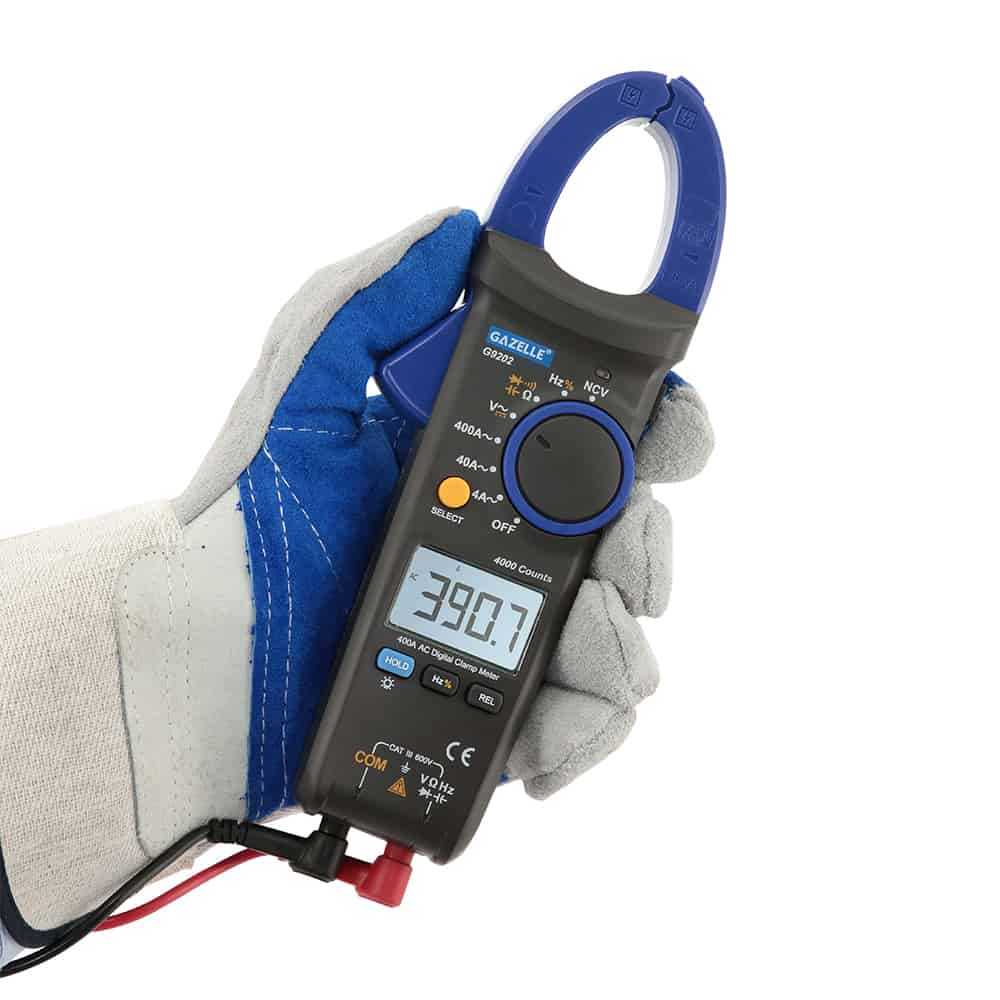

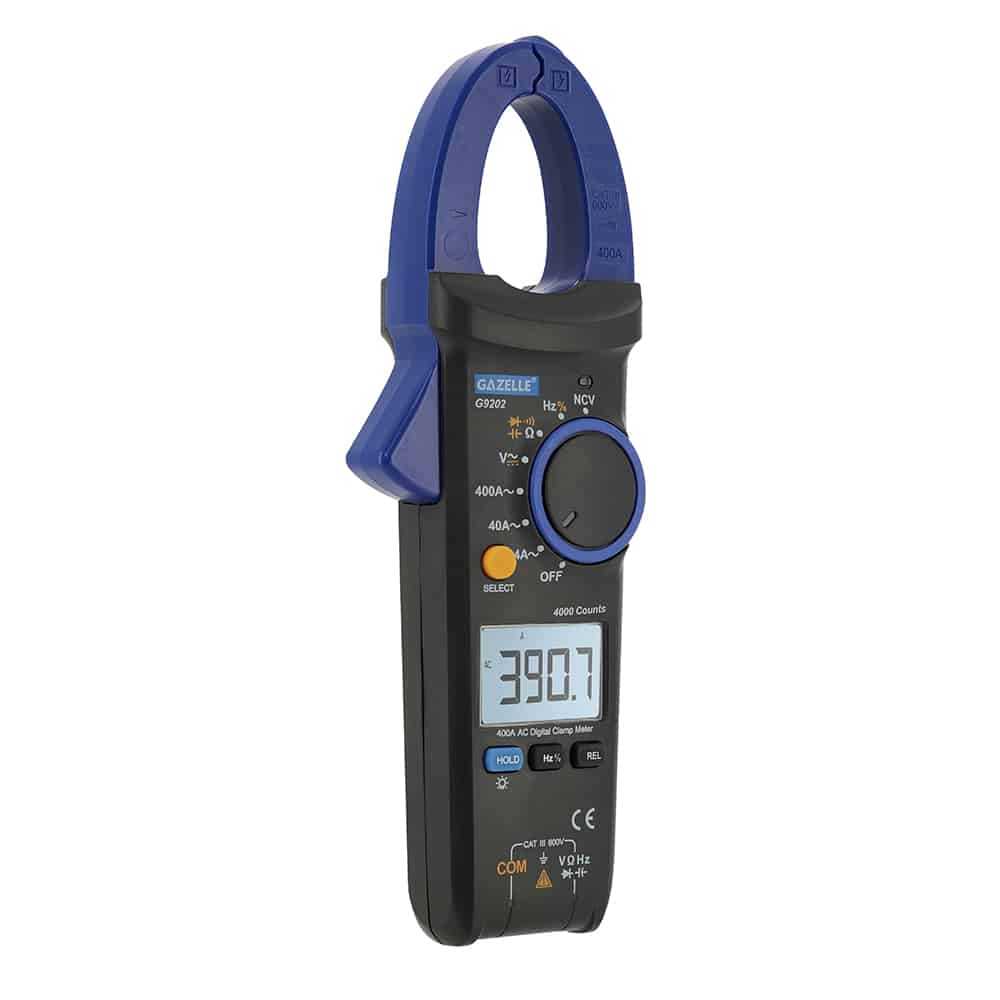

G9202 True RMS Clamp Meter, 400A
G9202 True RMS Clamp Meter, 400A
Features
- TRMS, AC/DC Voltage and AC current measurement
- Multi function capable for Resistance, Diode, Continuity, Frequency measurements
- 600A full range overload protection for additional safety
- CAT II 1000V / CAT III 600V safety rating
- Big LCD display Clear white backlight for measurement in dark areas

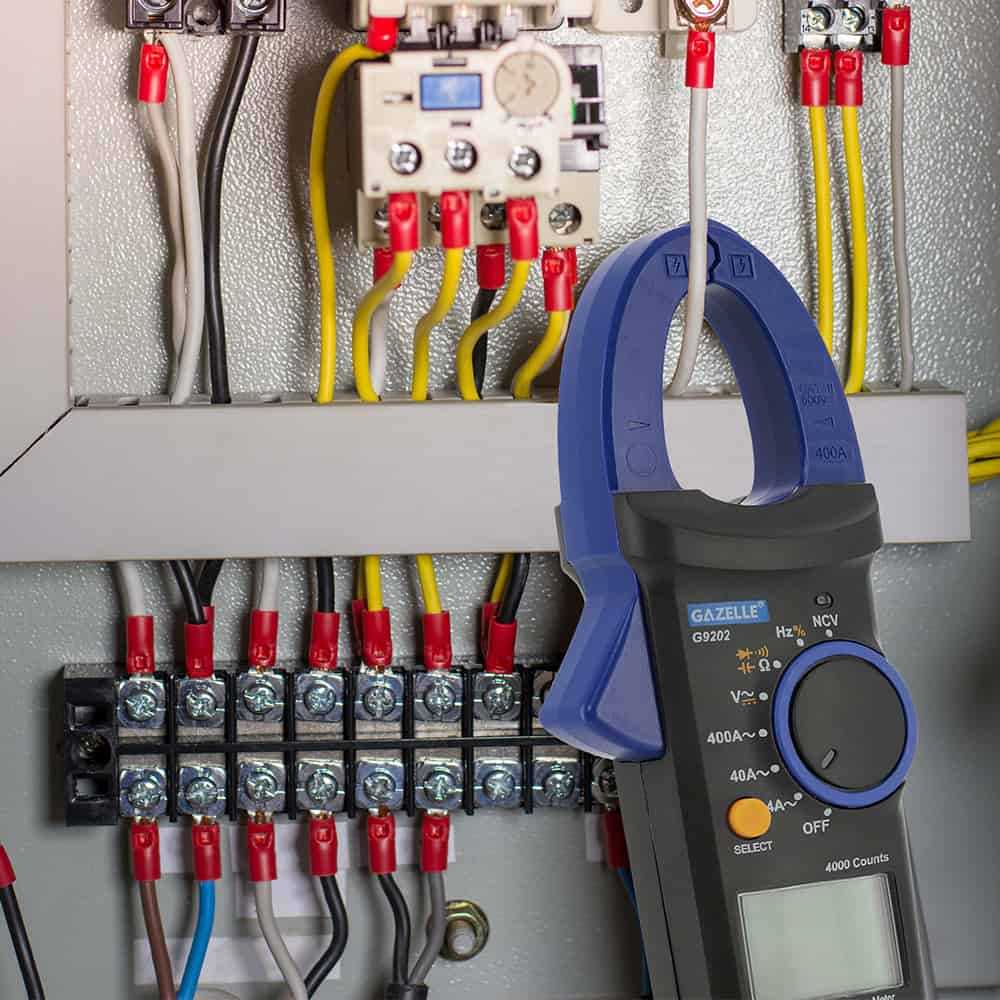

- Includes a built in torch for dark electrical panel
- NCV voltage detectors for safety verification
- Includes Gazelle branded carrying case
- 1 year warranty against manufacturing defect only
Technical Specifications
AC Current4/40/400A
AC Voltage4/40/400/600V
Jaw Capacity30mm
Safety RatingCAT III 600V
DC Voltage400mV/4/40/400/600V
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Frequency10Hz-10Mhz
Capacitance50nF/500nF/5µF/50µF/100µF
Input Impedance for DCV≥10MΩ

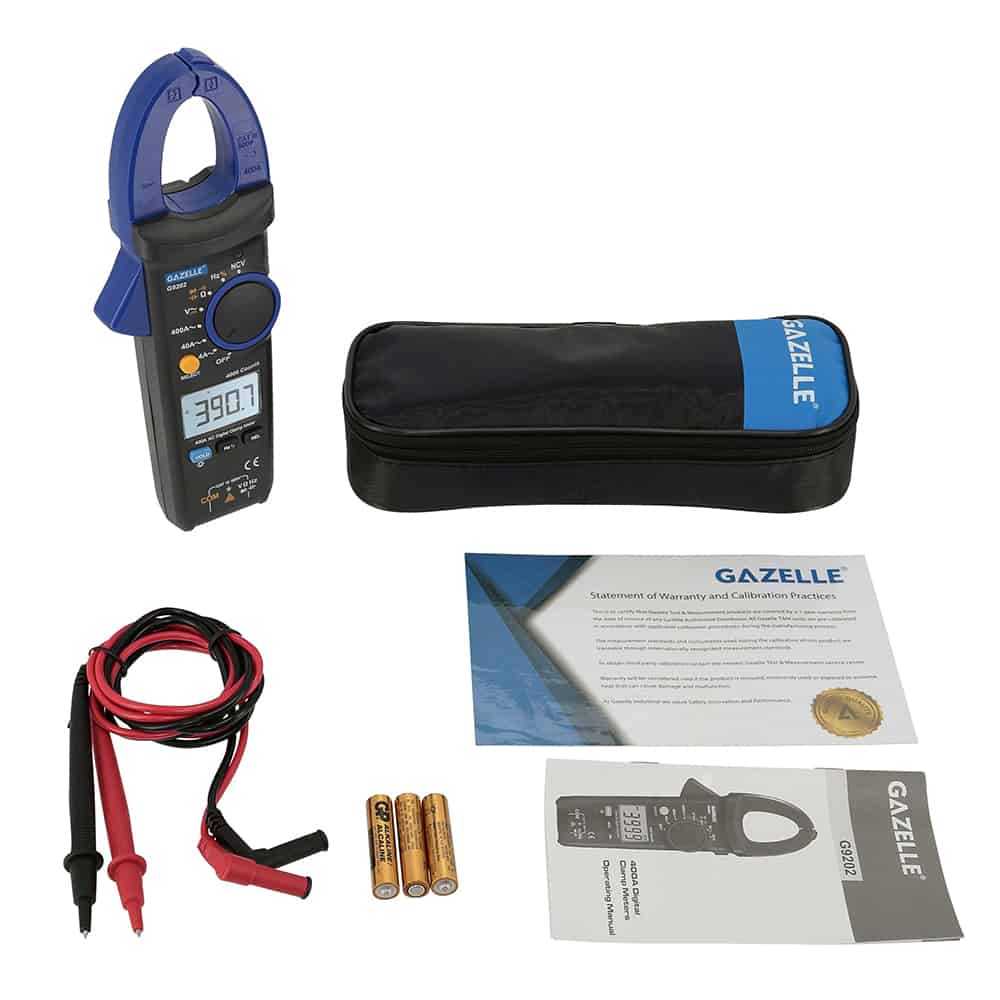

Items Included
- Operating Manual
- Carrying Case
- Test Lead
Downloads
Packaging Info
- Width9 cm
- Length27 cm
- Height6.2 cm
- Weight0.4 kg
- AC Current4/40/400A
- AC Voltage4/40/400/600V
- Jaw Capacity30mm
- Safety RatingCAT III 600V
- DC Voltage400mV/4/40/400/600V
- Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Frequency10Hz-10Mhz
- Capacitance50nF/500nF/5µF/50µF/100µF
- Input Impedance for DCV≥10MΩ
