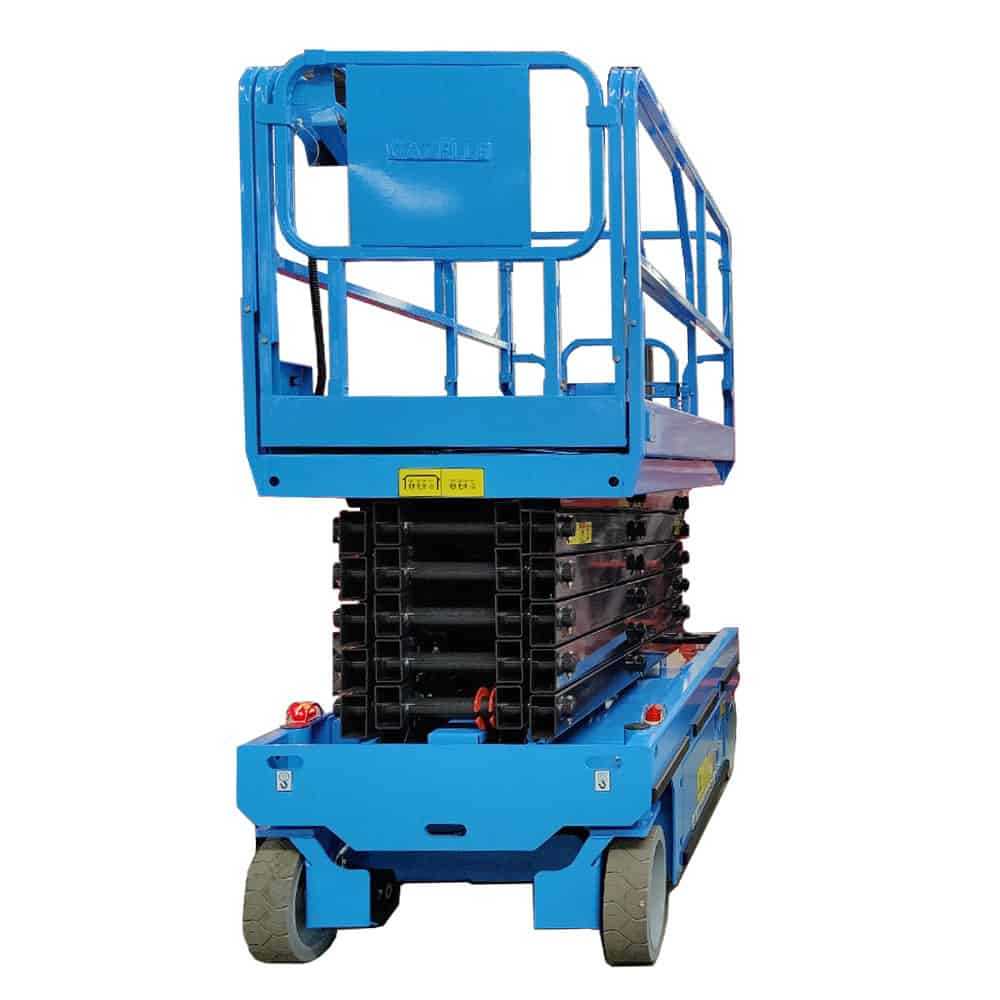

G2515 12m Scissor Lift Platform, 320kg
G2515 12m Scissor Lift Platform, 320kg
Features
- Lift capacity: 320kg
- Max Platform Height: 11.95m
- Working Height: 13.95m
- Platform Size: 2.29 × 1.13 × 1.10m
- Warranty: 1 year manufacturer's warranty
FEATURES & APPLICATION
Features
- Industry Leading Duty Cycles: Built for repeated lift, drive and lower operation through the working shift
- Common Control Platform: Controls and electrical system shared with ES Series scissor lifts for simpler training, service and spares
- Fully Proportional Joystick: Single joystick with proportional lift and drive for smooth, precise positioning
- All-Steel Platform: Steel deck and guardrails built to take heavy site use
- Saloon-Style Entry Gate: Swing gate for quick, secure platform access
- 220V AC Wiring to Platform: Standard power supply at deck level for running tools at height
- Automatic Traction Control: Maintains drive grip on uneven and slippery surfaces
- Non-Marking Tyres: Solid Ø381 x 127 mm tyres that leave finished floors unmarked
- Swing-Out Battery Doors: Steel doors on heavy duty hinges give full access for charging and service
- Mechanical Pothole Protection: Guards deploy as the platform rises to guard against floor depressions and kerbs
- All Motion Alarm: Audible warning whenever the machine drives, lifts or lowers
- Tilt Alarm and Light: Alerts the operator when the chassis passes its inclination limit of 1.5° / 3°
- Battery Condition Indicator: On-board charge display so crews can plan work and charging
- Horn: Operator-controlled horn to warn personnel working nearby
- Powder Paint Coating: Durable powder-coated finish that resists chipping and corrosion
- Lanyard Attachment Points: Dedicated harness anchor points inside the platform
- Lifting and Tie-Down Points: Integrated points for craning and securing the machine in transit
- Forkliftable Chassis: Machine can be lifted by forks for fast relocation on site
- 1 year manufacturer's warranty
Applications
- Construction and Maintenance: Ideal for accessing elevated areas for repairs, installations, and inspections.
- Warehousing and Logistics: Perfect for inventory management and reaching high storage racks.
- Manufacturing Facilities: Suitable for equipment maintenance and overhead assembly tasks.
- Event Management: Useful for setting up lighting, sound systems, and decorations at height.
- Aviation Industry: Designed for aircraft maintenance and inspections in hangars.
- Energy and Utilities: Essential for servicing electrical installations and utility poles.
- Telecommunications: Perfect for installing and maintaining communication towers and equipment.
- Industrial Cleaning: Ideal for cleaning high ceilings, walls, and industrial equipment.

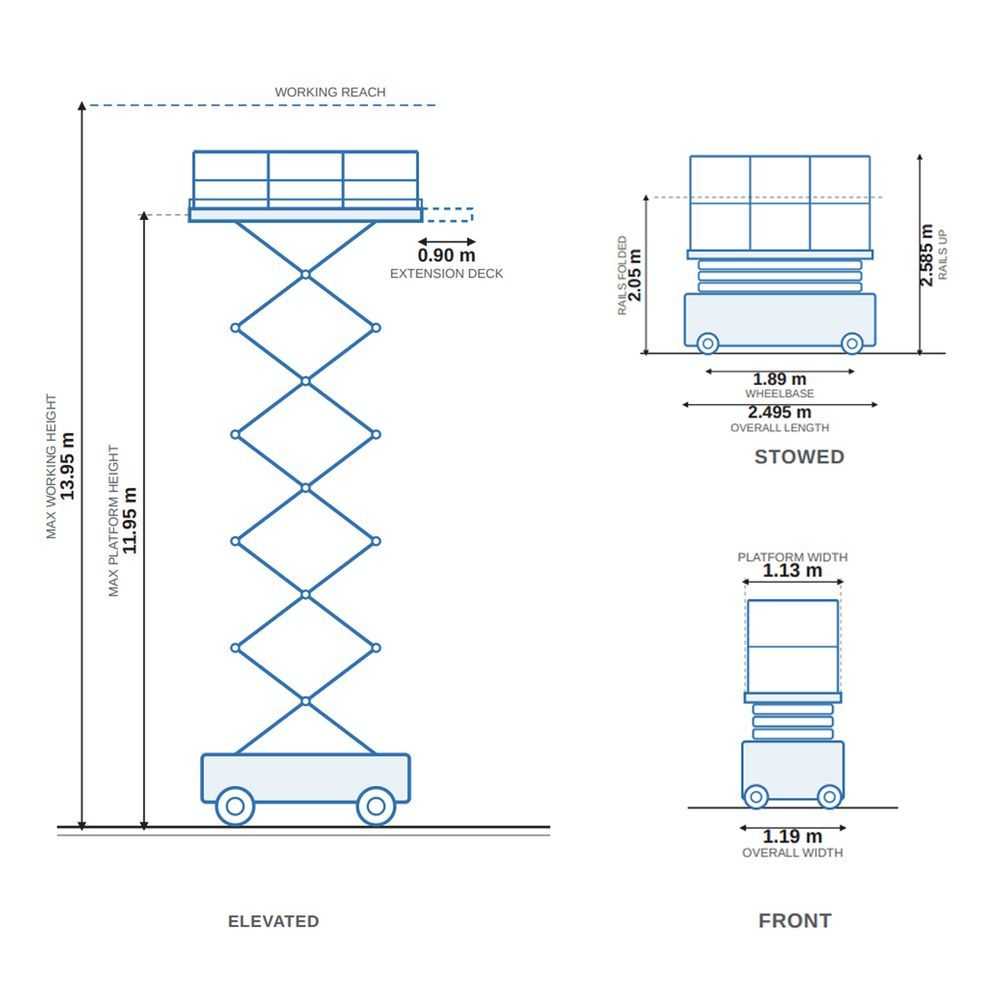

TECHNICAL SPECIFICATIONS
- Max. working height13.95 m
- Max. platform height11.95 m
- Platform size (L × W × H)2.29 × 1.13 × 1.10 m
- Platform extension length0.90 m
- Overall dimensions – guardrails up2.495 × 1.19 × 2.585 m
- Overall dimensions – guardrails folded2.495 × 1.19 × 2.05 m
- Lift capacity320 kg
- Lift capacity – extension deck113 kg
- Drive speed – stowed3.5 km/h
- Drive speed – raised0.8 km/h
- Lifting speed3–5 m/min
- Gradeability25%
- Max. angle of inclination1.5° / 3°
- Turning radius (inside / outside)0 / 2.2 m
- Tires (solid)Ø381 × 127 mm
- Wheelbase1.89 m
- Min. ground clearance0.10 / 0.02 m
- Lift / drive motor24 V / 5.0 kW
- Batteries4 × 6 V / 300 Ah
- Charger24 V / 30 A
- Total weight3100 kg
SERVICES
Gazelle Tool Service- Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
- Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
- Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.
PERFORMANCE YOU TRUST
Trusted by Professionals- Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
- Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
- Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
- Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
- Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.
DOWNLOADS
PACKAGING INFO
- Width116 cm
- Length250 cm
- Height260 cm
- Weight2800 Kg
