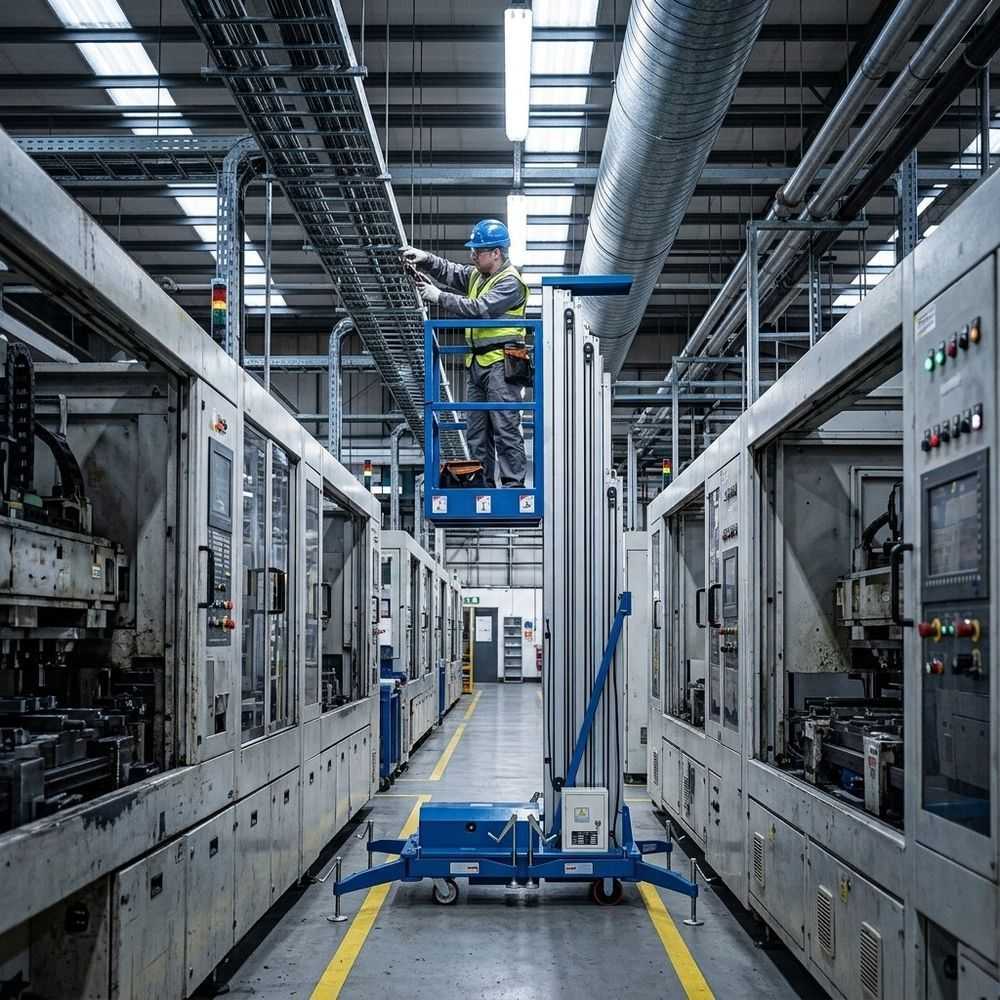

G2510 10m Aerial Work Platform
G2510 10m Aerial Work Platform
Features
- Rigid aluminium alloy profile
- Suitable for operation by a single worker
- Fitted with Italian hydraulic systems
- Equipped with anti-explosion valve for lube
- Easily rolls through a narrow space
- Auxiliary platform lowering
- Overload protection
- Emergency stop button
- Expandable legs for better stability
- DC working power on the platform
- 6 months warranty against manufacturing defect only

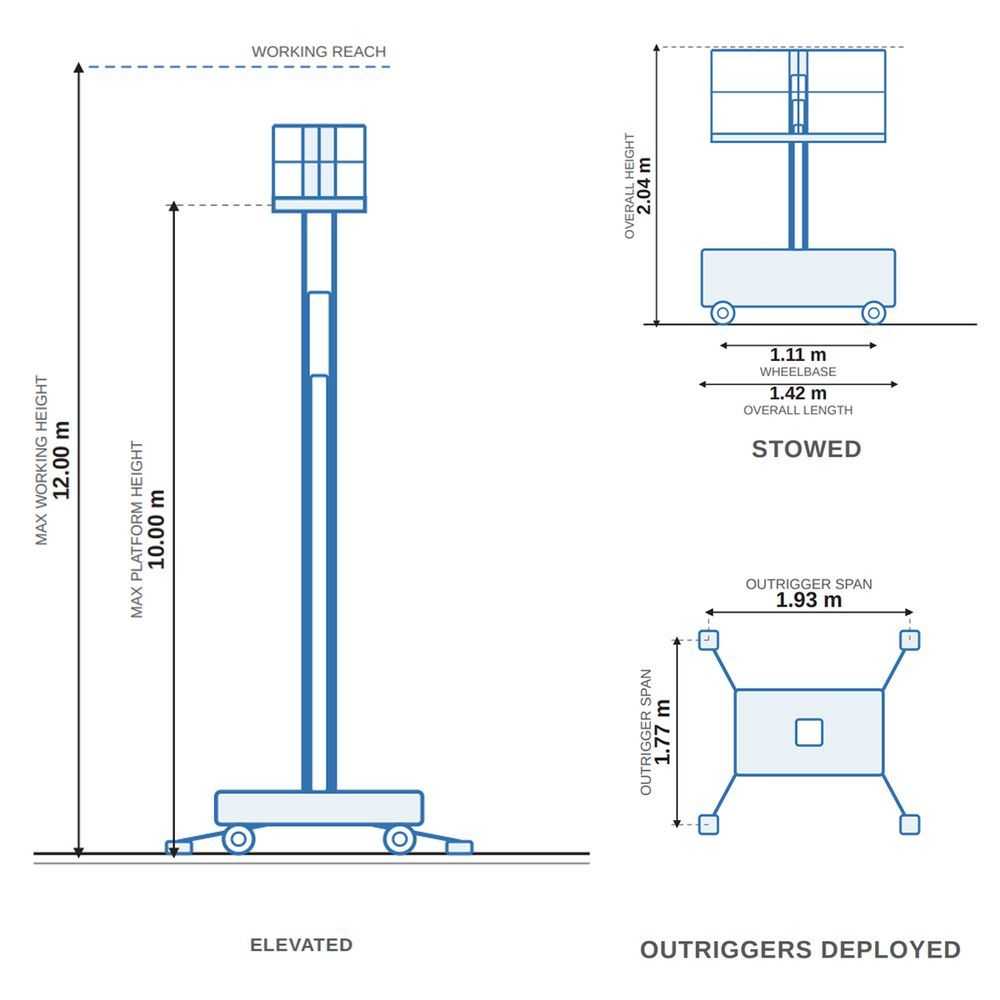

Technical Specifications
Load Capacity125kg
Max Platform Height10m
Working Height11.7m
Platform Size0.6x0.55m
Support Leg Expand1.93x1.77m
Ground Clearance80mm
Overall Size (LxWxH)1.33x0.8x2.1m
Voltage (AC)220V
Voltage (DC)24V
Weight400kg
Downloads
Packaging Info
- Width80 cm
- Length150 cm
- Height195 cm
- Weight810 kg
- Load Capacity125kg
- Max Platform Height10m
- Working Height11.7m
- Platform Size0.6x0.55m
- Support Leg Expand1.93x1.77m
- Ground Clearance80mm
- Overall Size (LxWxH)1.33x0.8x2.1m
- Voltage (AC)220V
- Voltage (DC)24V
- Weight400kg
