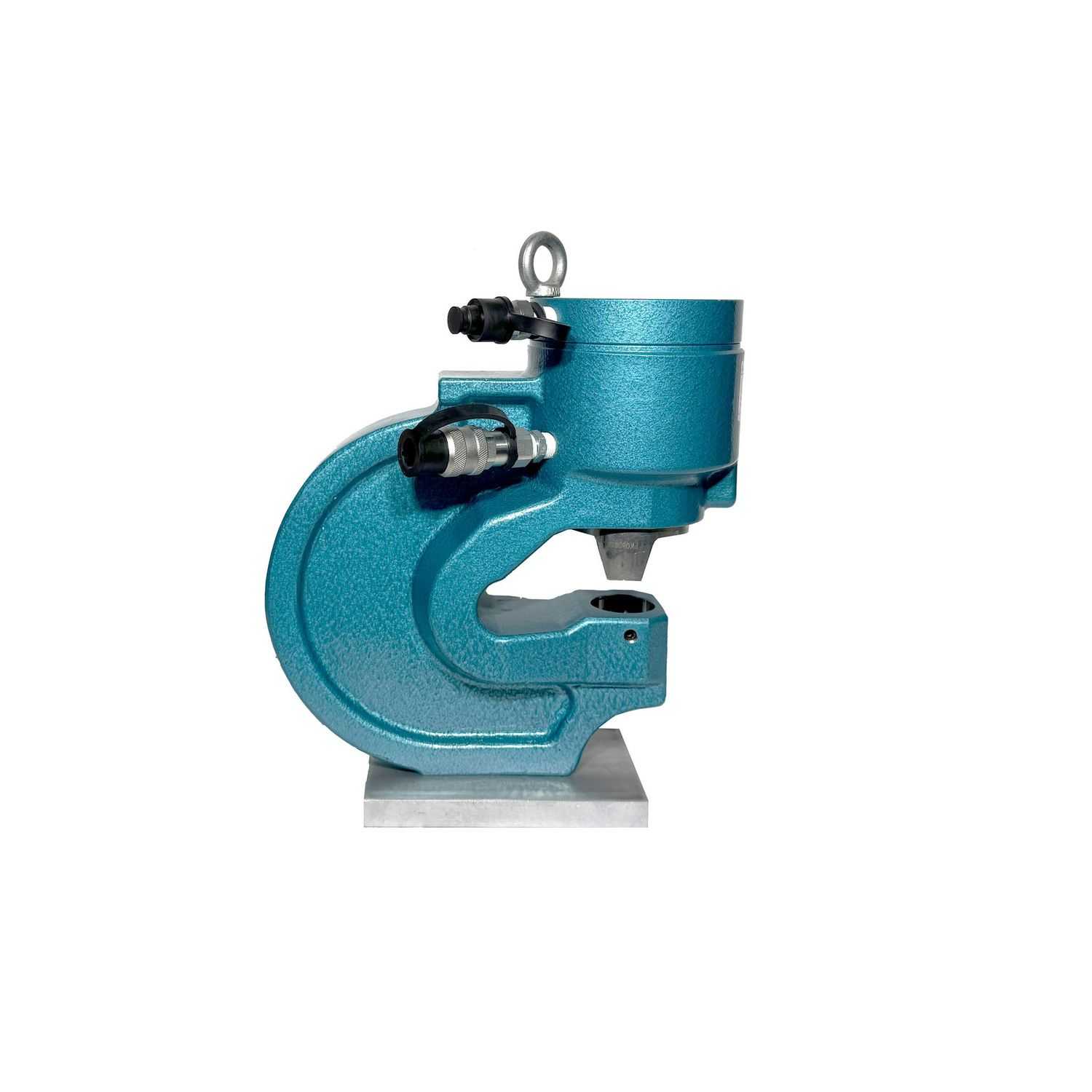

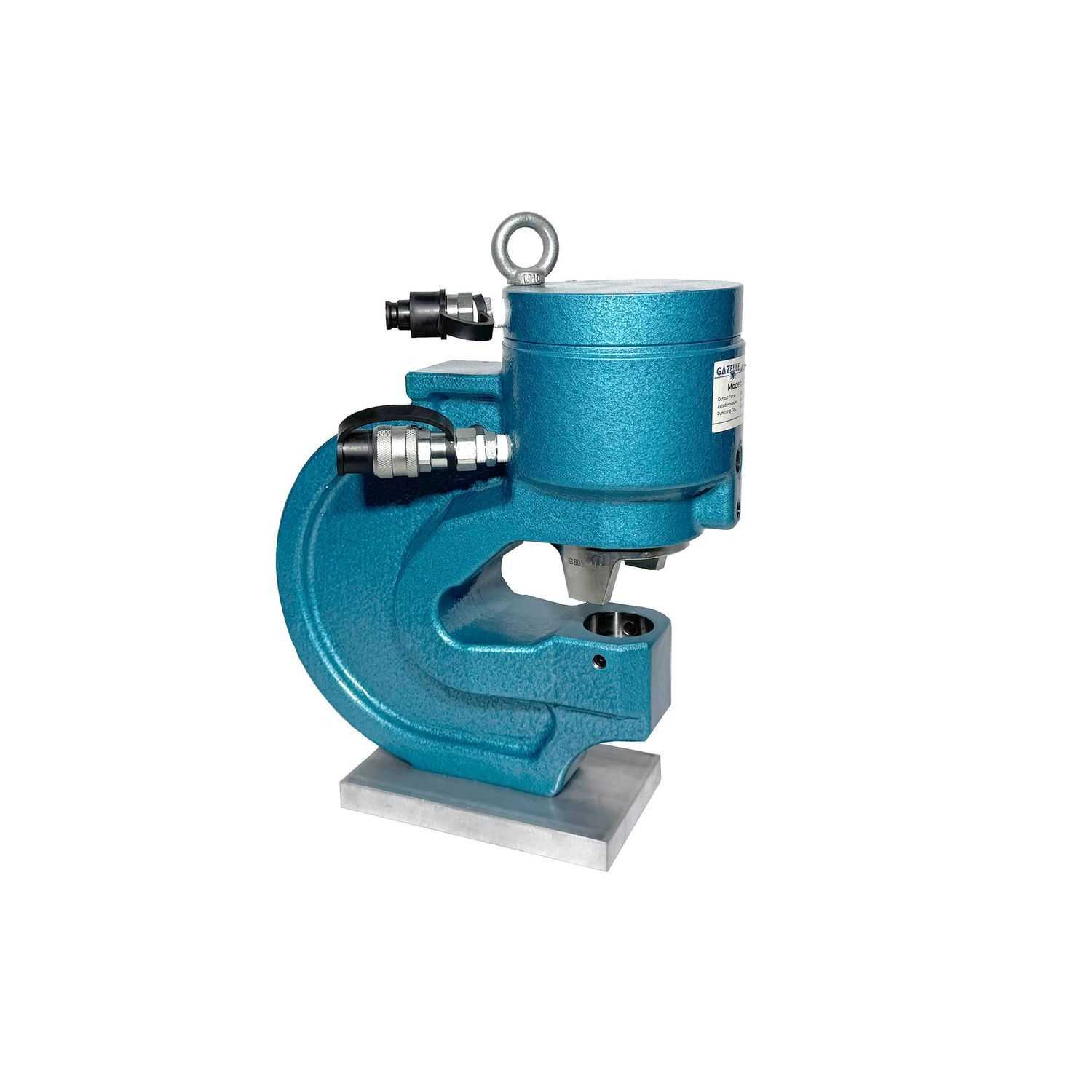

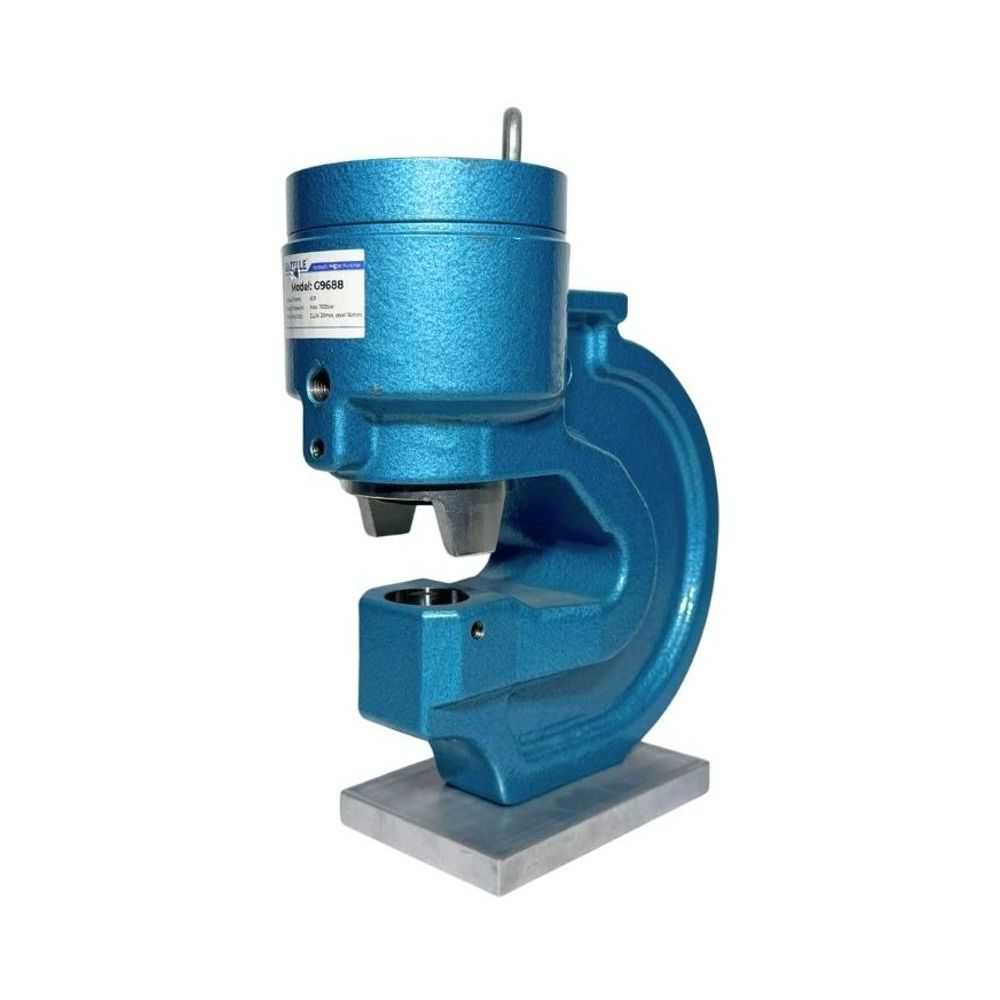

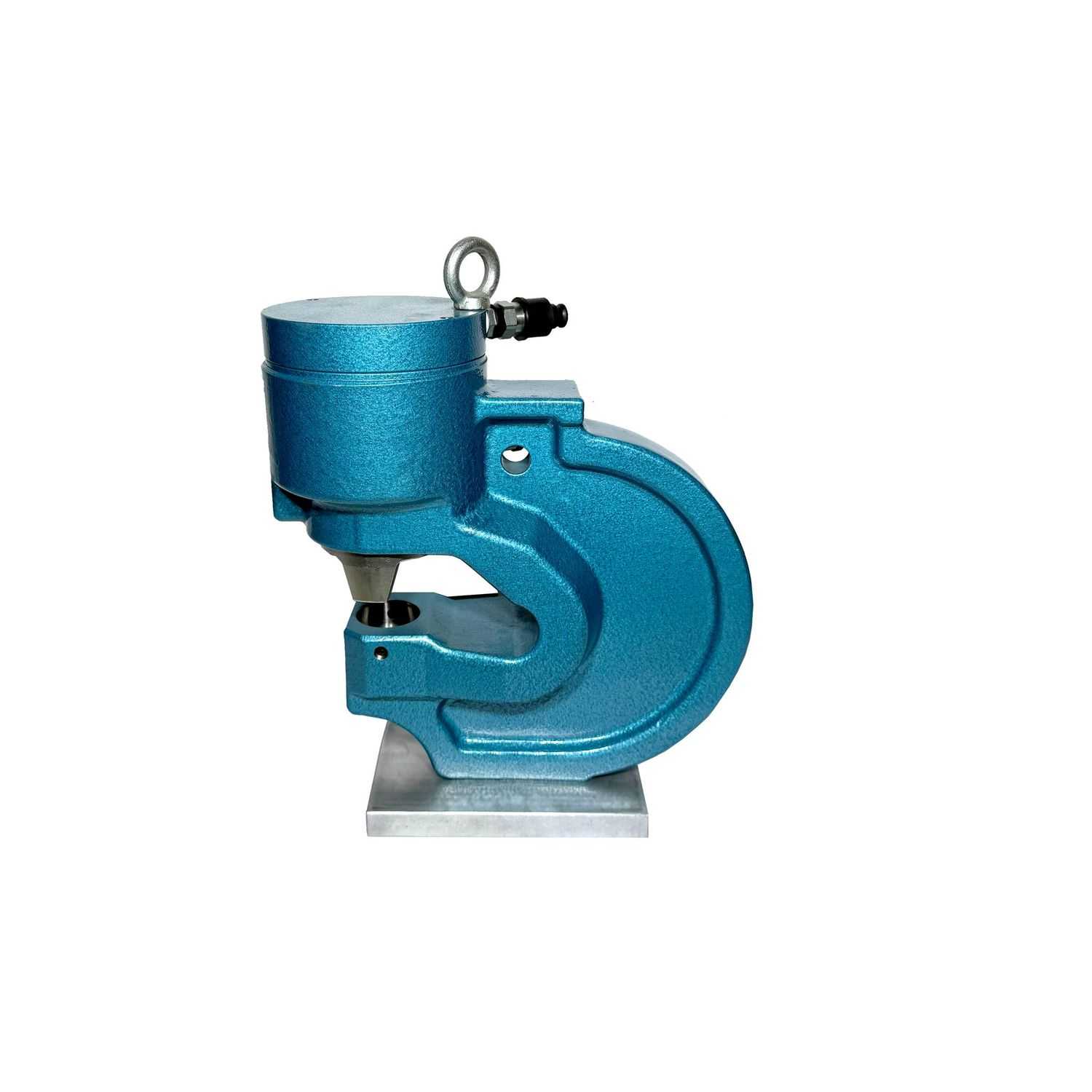

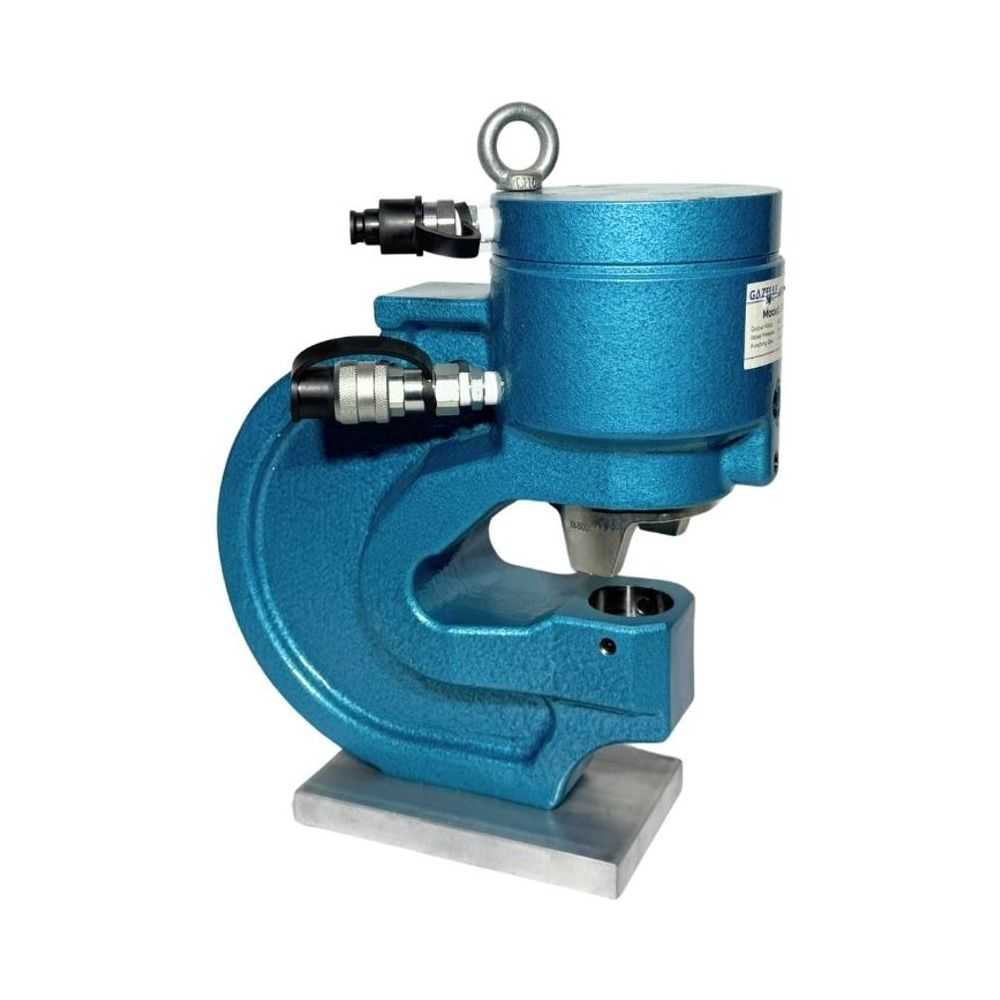

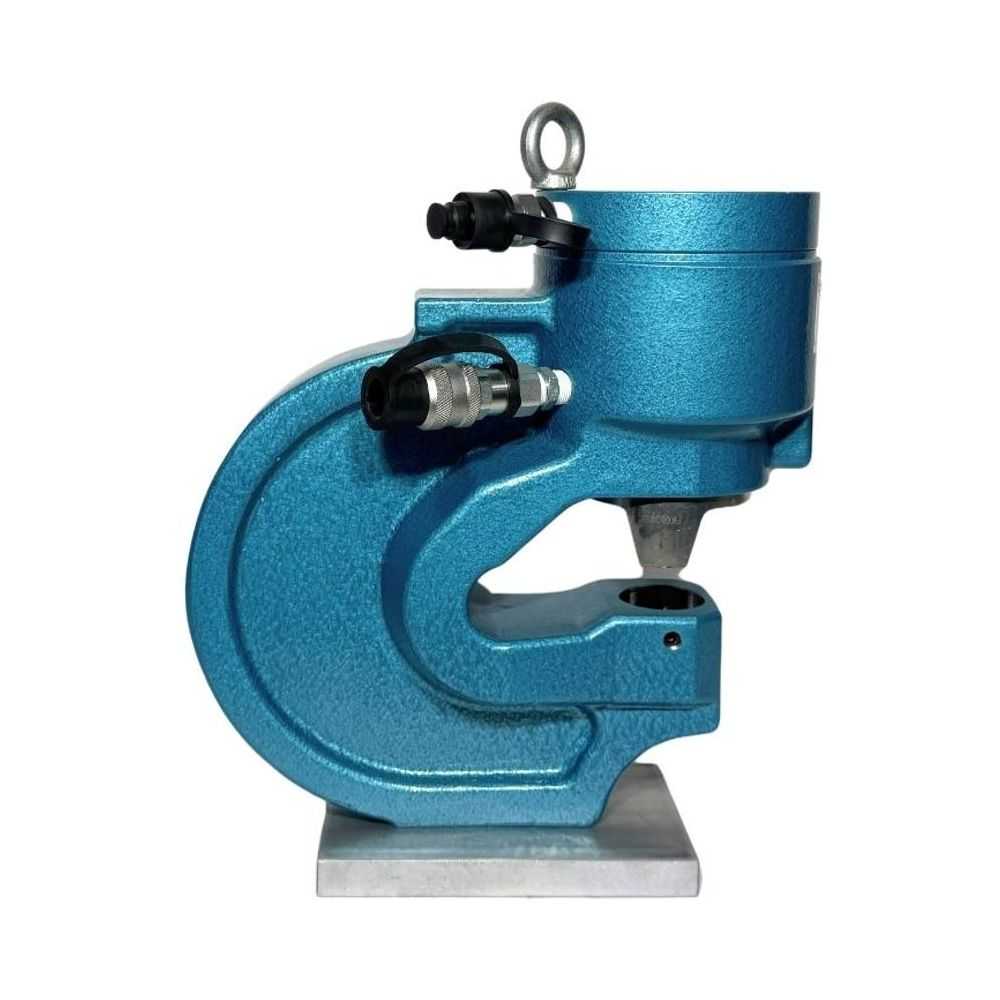

G9688 60 Ton Double Acting Busbar Punching Tool, 700Bar

Gazelle Tool Service
Warranty
Find A Distributor

Features

  • Punching Force: 60T
  • Max Thickness: Cu/Al - 13mm, Plain - Steel 10mm
  • Rated Pressure: 700bar
  • Warranty: 1 year manufacturer's warranty

Scope of Delivery

  • Punching Head
  • Punching Dies - 16, 18, 22, 24mm

FEATURES & APPLICATION

Features

  • High Punching Force: Delivers an impressive 60 tons of punching force, ensuring precision and efficiency in heavy-duty applications.
  • Double Acting Mechanism: Enhances operational efficiency by enabling faster and smoother punching cycles.
  • Versatile Material Compatibility: Handles copper/aluminum busbars up to 13mm thick and plain steel up to 10mm thick.

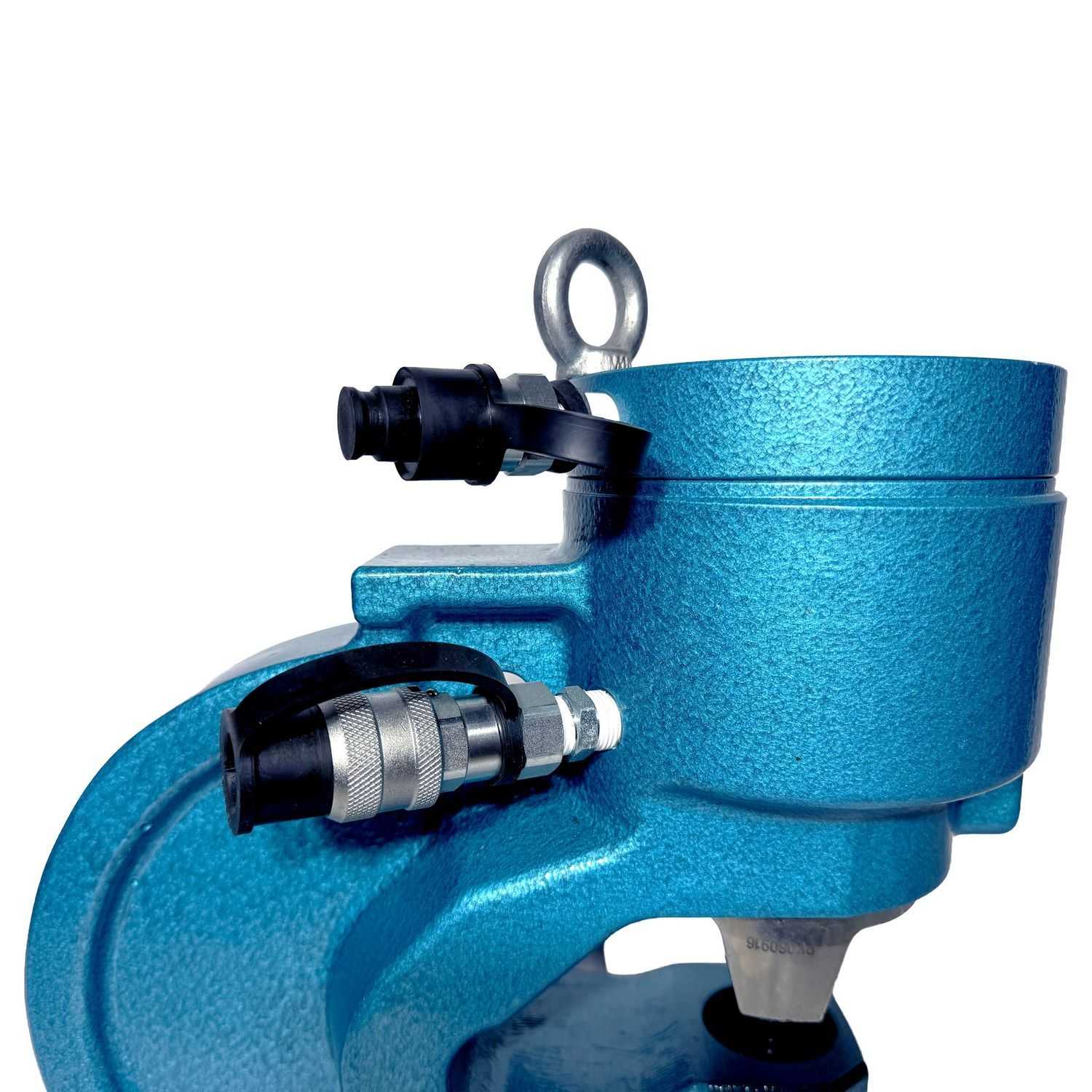

  • Hydraulic Compatibility: Designed to work seamlessly with G9645, G9645-II, and G9635 hydraulic pumps.
  • Durable and Robust Design: Built to withstand demanding industrial environments, ensuring long-lasting performance.
  • Comprehensive Accessories: Includes punching dies in multiple sizes (16, 18, 22, 24mm) for versatile applications.

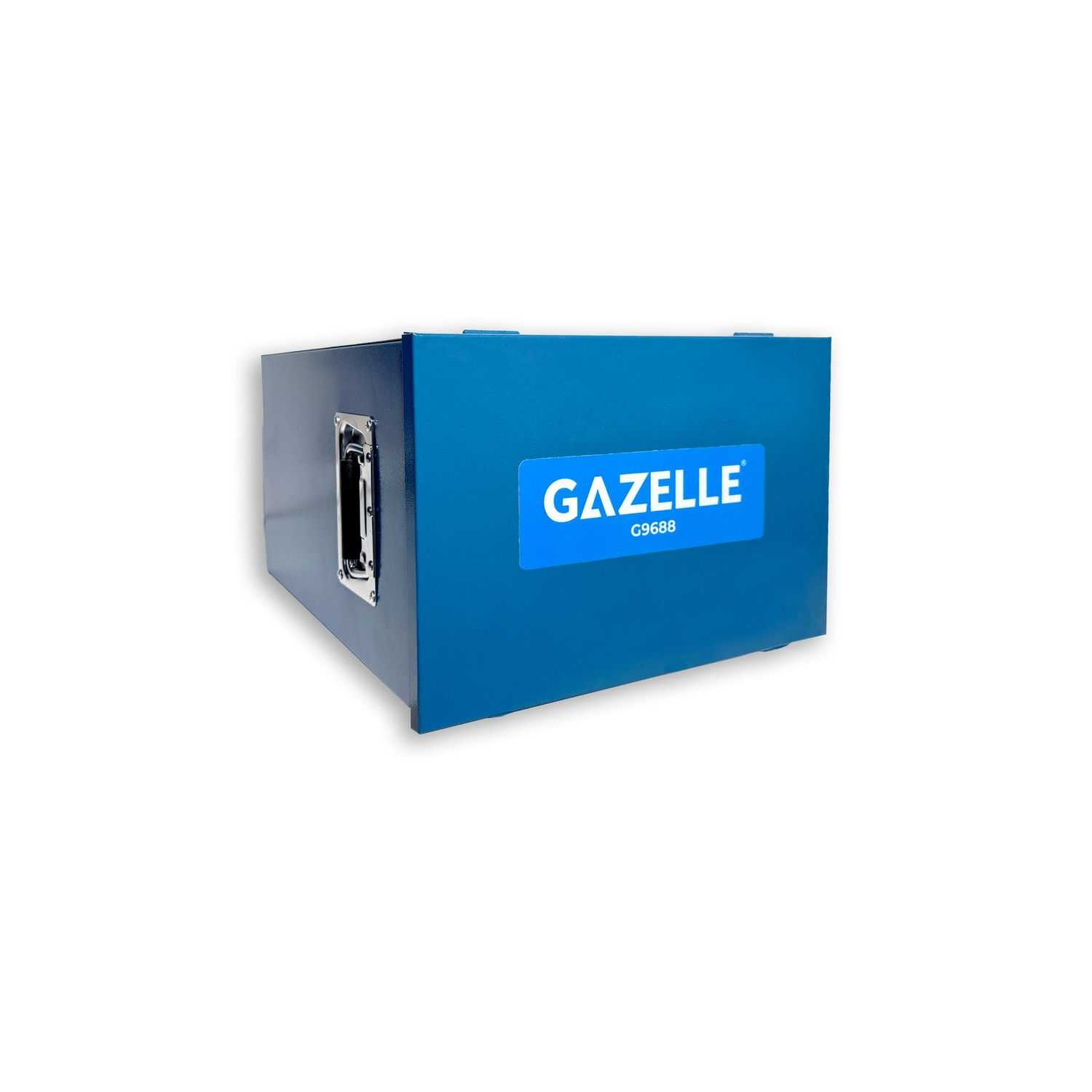

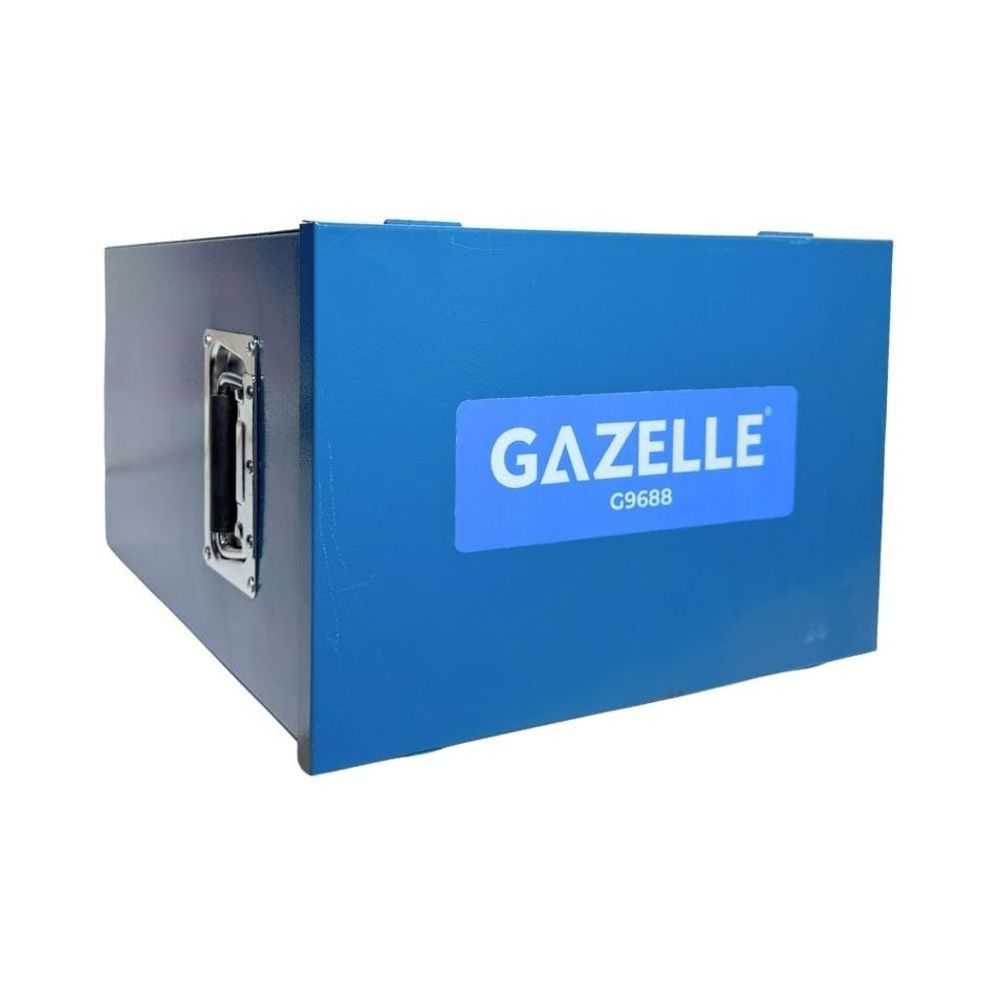

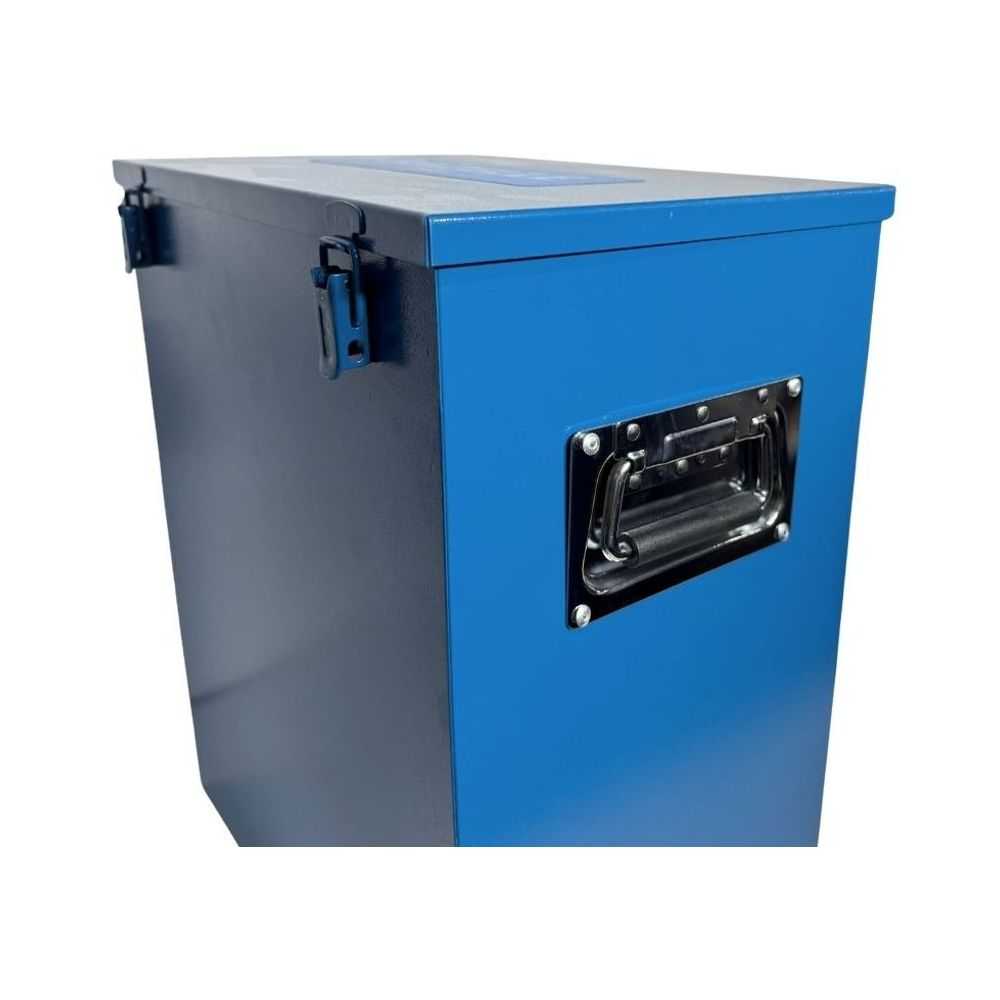

  • Protective Packaging: Comes in a robust steel case for secure storage and transport.

Applications

  • Electrical Power Distribution: Ideal for creating precise holes in busbars for electrical panels and substations.
  • Industrial Manufacturing: Essential for fabricating and assembling electrical components in manufacturing facilities.
  • Construction: Used in the installation of electrical systems in commercial and industrial buildings.
  • Energy Sector: Supports renewable energy projects like solar farms and wind turbines by preparing busbars for electrical connections.
  • Utility Maintenance: Facilitates on-site repairs and modifications of busbars in utility services.
  • Telecommunications: Ensures accurate punching for busbars used in telecom infrastructure setups.

TECHNICAL SPECIFICATIONS

  • Punching Force60T
  • Max ThicknessCu/Al - 13mm, Plain - Steel 10mm
  • Rated Pressure700bar
  • Weight34kg

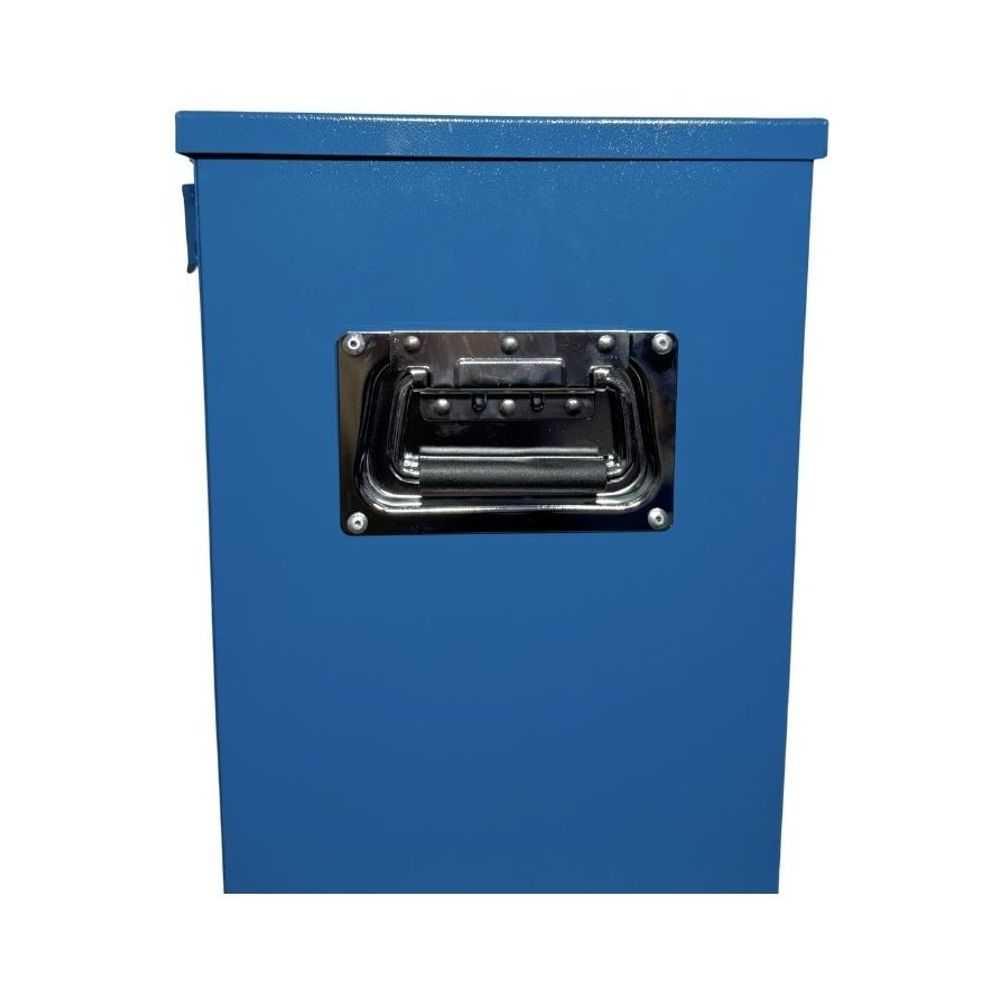

  • PackageSteel Case
  • Dies 16mm, 18mm, 22mm, & 24mm

SERVICES

HiltiIconGazelle Tool Service
  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

TrustedTrusted by Professionals
  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DOWNLOADS

PACKAGING INFO

  • Width28 cm
  • Length38 cm
  • Height46 cm
  • Weight43.8 Kg
