G9325 Cable Fault Locator A-Frame with 1KV Booster
G9325 Cable Fault Locator A-Frame with 1KV Booster
Gazelle Tool Service
Warranty
Find A Distributor
Gazelle Tool Service
Warranty
Find A Distributor
Features
- Maximum Output Voltage: 1000 V DC (1 kV)
- Signal Type: Impulse DC square waveform
- Detection Method: Step voltage method for pinpointing grounded faults
- Stable Voltage & Phase Tracking: Ensures accurate fault approach indication
FEATURES & APPLICATION
Features
- Maximum Output: 1000V (1KV) for effective fault pinpointing
- Step Voltage Function: Pinpoints grounded faults in pipelines
- Applicable Fault Types: Insulation damage, non-armored low voltage cable faults, high voltage cable sheath faults

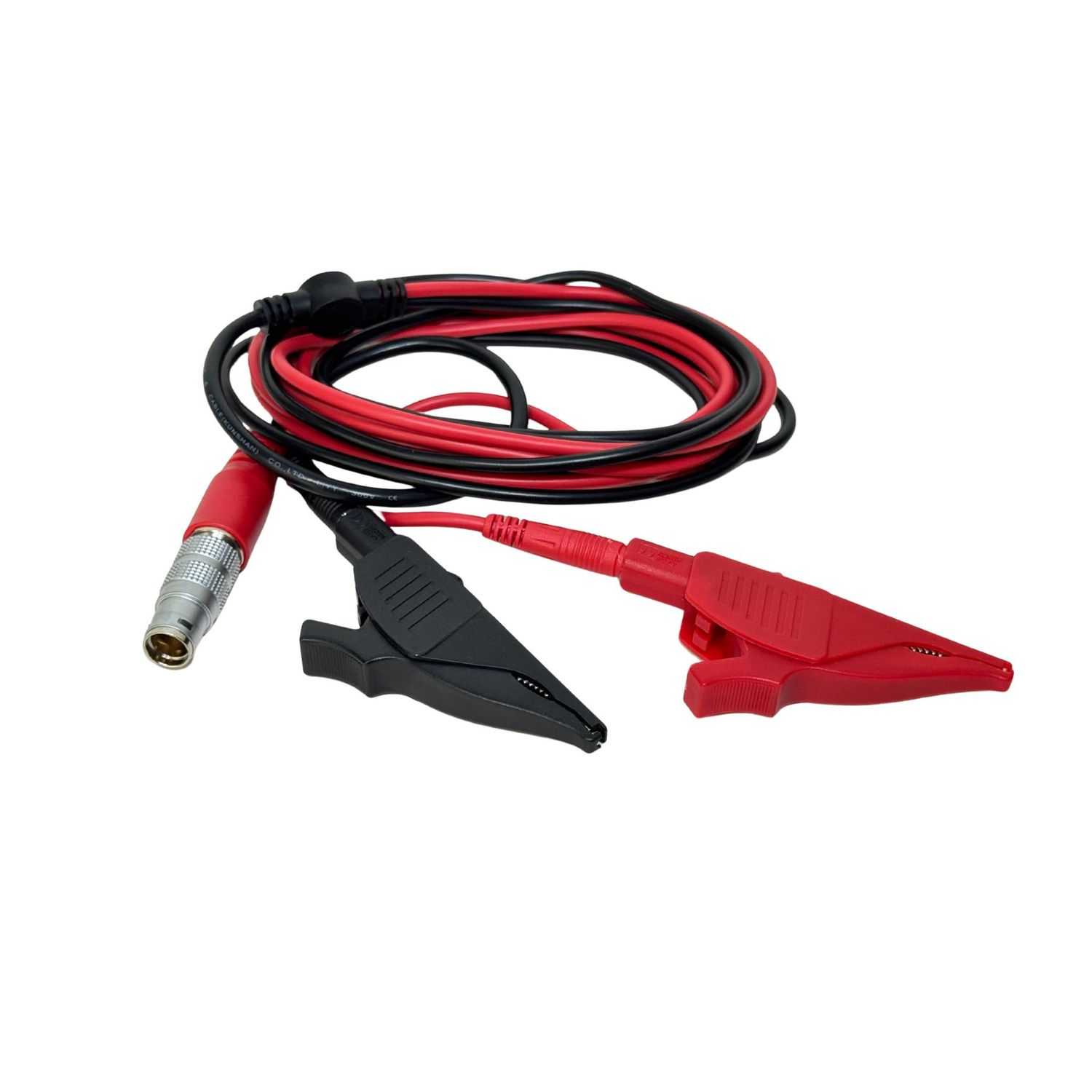

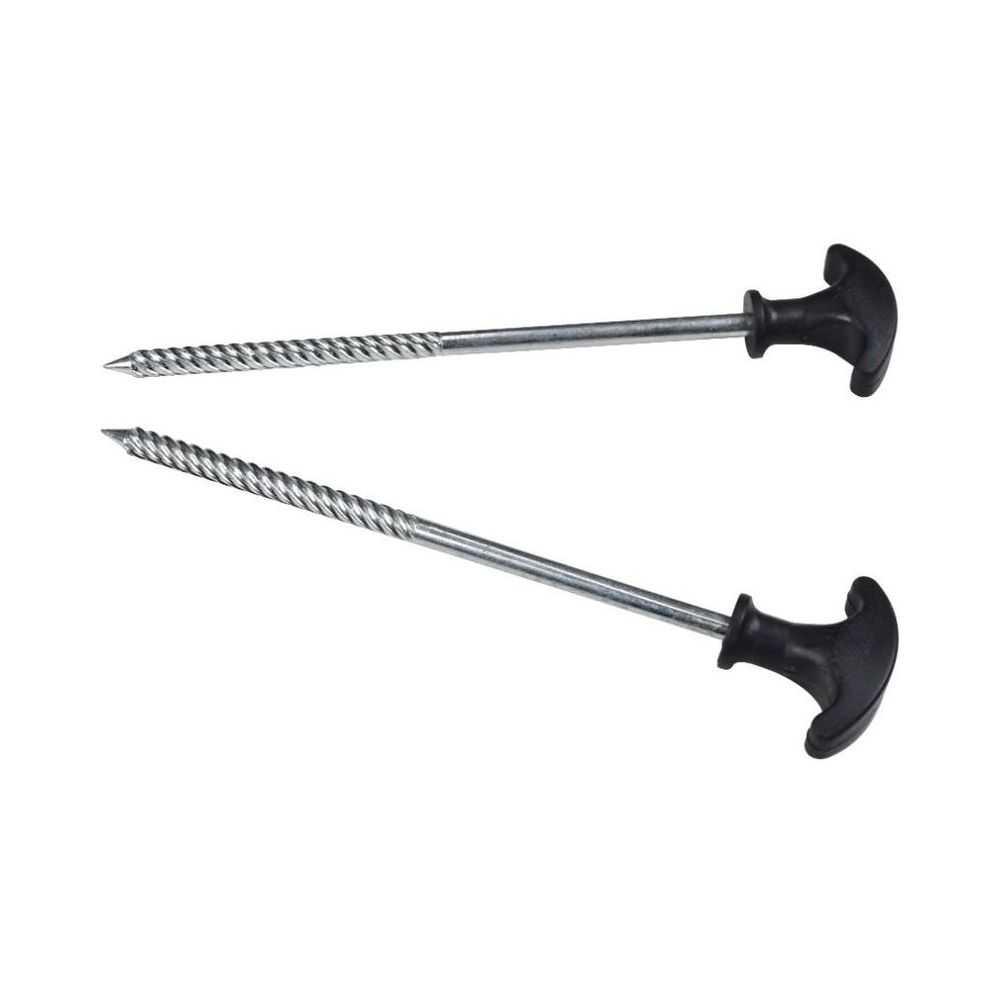

- Transmitter Connection: Connects directly to fault pipeline via 5-core red plug and grounding rod
- A-Frame Functionality: Provides precise fault location using probes drilled into the ground to detect leakage current
- Automatic Accessory Detection: Transmitter and receiver auto-identify connected accessories and adjust mode
- User-Friendly Design: Clear interfaces and straightforward operation for field use
- Cable and Pipeline Compatibility: Detects faults in insulated pipes, non-armored low voltage cables, and high voltage cable sheaths
- Directional Guidance: A-Frame provides arrows guiding operator toward fault point
- Fault Proximity Indication: Voltage and phase stability indicate distance to fault
- Signal Type: Impulse DC square waveform for clear and stable fault detection
- 1 Year manufacturer's warranty
TECHNICAL SPECIFICATIONS
- Maximum Output Voltage: 1000 V DC (1 kV)
- Signal Type: Impulse DC square waveform
- Detection Method: Step voltage method for pinpointing grounded faults
- Stable Voltage & Phase Tracking: Ensures accurate fault approach indication
